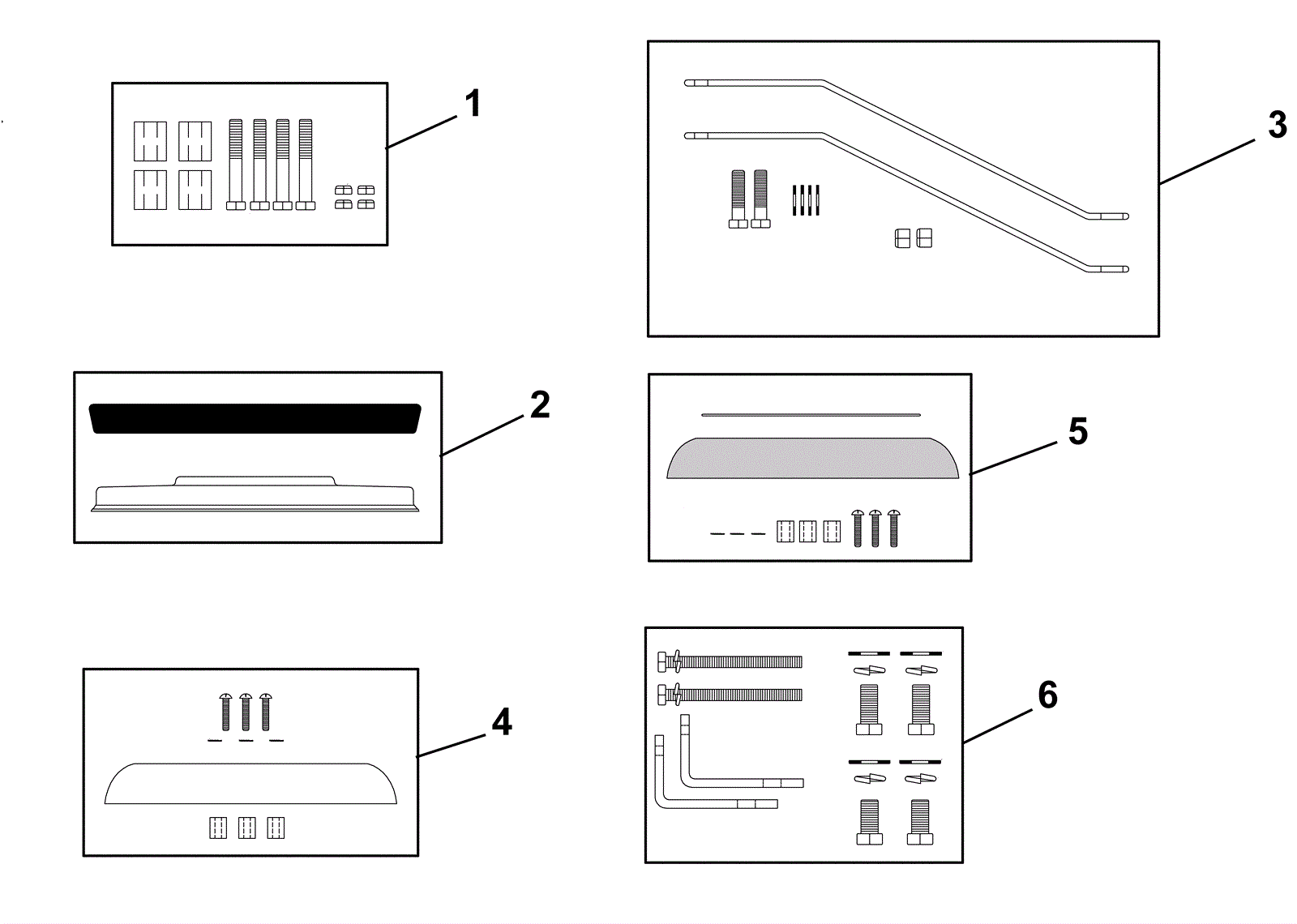

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
163-0692
|
Brush cover mounting kit |
1 |
|
|
2a |
163-0415
|
Brush cover (black) |
1 |
|
|
2b |
163-0421
|
Brush cover (red) |
1 |
|
|
2c |
163-0681
|
Brush cover (cream) |
1 |
|
|
2d |
163-0696
|
Brush cover (garnet) |
1 |
|
|
2e |
163-0682
|
Brush cover (green) |
1 |
|
|
2f |
163-0697
|
Brush cover (silver) |
1 |
|
|
2g |
163-0698
|
Brush cover (light blue) |
1 |
|
|
2h |
163-0703
|
Drip cover kit (black) |
1 |
|
|
2i |
163-0701
|
Brush cover (royal blue) |
1 |
|
|
2j |
163-0700
|
Brush cover (teal) |
1 |
|
|
2k |
163-0702
|
Brush cover (yellow) |
1 |
|
|
3 |
163-0693
|
Frame bracket kit |
1 |
|
|
4 |
163-0407
|
Motor cover |
1 |
|
|
5a |
163-0703
|
Drip cover kit (black) |
1 |
|
|
5b |
163-0704
|
Drip cover kit (red) |
1 |
|
|
5c |
163-0705
|
Drip cover kit (cream) |
1 |
|
|
5d |
163-0706
|
Drip cover kit (garnet) |
1 |
|
|
5e |
163-0707
|
Drip cover kit (green) |
1 |
|
|
5f |
163-0708
|
Drip cover kit (silver) |
1 |
|
|
5g |
163-0709
|
Drip cover kit (light blue) |
1 |
|
|
5h |
163-0710
|
Drip cover kit (orange) |
1 |
|
|
5i |
163-0711
|
Drip cover kit (royal blue) |
1 |
|
|
5j |
163-0712
|
Drip cover kit (teal) |
1 |
|
|
5k |
163-0713
|
Drip cover kit (yellow) |
1 |
|
|
6 |
163-0714
|
Belt bracket kit (hardware included) |
1 |
|
|
N/S |
163-0715
|
Belt kit |
1 |
|
|
