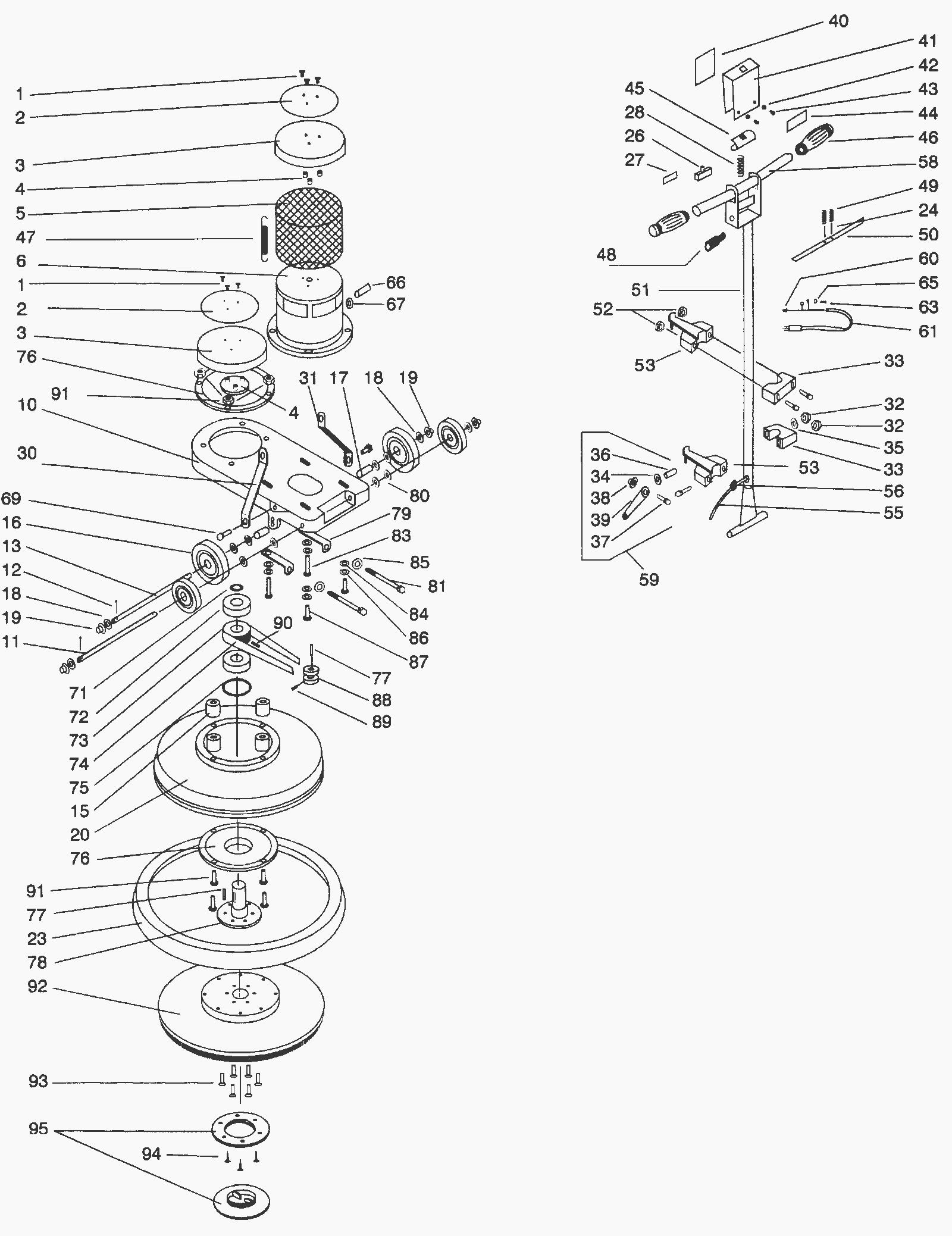

Entire Assembly

#PartDescription ReqNotesAvailability
1 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 3
2a 163-0082 6 1/2 inch round decal 1
2b 163-0181 1500RPM decal 1
3 163-0083 Drip motor cover 1
4 163-0084 Drip cover spacer 3
5 163-0060 Motor cover screen 1
6a 163-0059 1.5HP motor kit 1
6b 163-0405 Carbon brush (pkg of 4) 1
10 163-0368 Frame 1
11 163-0369 Handle shaft 1
12 163-0050 Cotter pin 4
13 163-0369 Handle shaft 1
15 163-0087 Spacer 4
16 163-0287 Wheel kit (2 wheels with hardware) 2
17 163-0182 Spacer 2
18 163-0052 Washer 7/8 steel (pkg of 5) 12
19 163-0027 Push nut 4
20 163-0088 20 inch brush cover 1
23 163-0090 20 inch bumper (black) 1
24 163-0091 Roll pin (pkg of 6) 2
26 163-0054 On/off switch kit 1
27 163-0092 Switch insulation 1
28 163-0867 Extension spring (pkg of 6) 1
30 163-0286 Connecting leg kit with hardware 1
31 163-0286 Connecting leg kit with hardware 1
32a 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
32b 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 1
33 163-0365 Handle locking clamp kit 1
34 163-0095 Washer hardened slotted (pkg of 5) 1
35 999-0032 Washer 3/8 USS flat plain finish 3
36 163-0096 Clamp stud (pkg of 5) 1
37 163-0097 Rivet 5/16 x 1 1/4 long round head 1
38 163-0098 Nut 5/16 push 1
39 163-0077 Cam lock assembly 1
40 163-0100 Switch box decal 1
41 163-0101 Switch box cover assembly 1
42 999-0053 Washer #10 split lock plain finish 3
43 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 2
44 163-0102 Warning decal 1
45 163-0065 Safety switch kit 1
46 163-0066 Handle grip (black) (pkg of 2) 2
47 163-0067 Clamp spring 2
48a 163-0376 Strain relief assembly 1
48b 163-0069 Strain relief nut 1
49 163-0070 Trigger spring 2
50 163-0071 Trigger 1
51 163-0072 Complete handle assembly 1
52 999-0635 Nut 3/8-16 hex stainless steel 2
53 163-0365 Handle locking clamp kit 1
55 163-0184 Interconnect cord 1
56 163-0075 Grommet 1
58 163-0076 Handle assembly 1
59 163-0077 Cam lock assembly 1 (includes 34, 36-39)
60 163-0078 Wire nut 1
61a 163-0055 12/3 power cord 50 foot w/ pigtail 1
61b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
63 999-0554 Screw 10-24 x 1/2 flat head slotted stainless steel 2
65 999-0053 Washer #10 split lock plain finish 1
66 163-0081 Strain relief 1
67 163-0069 Strain relief nut 1
69 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 2
71 163-0186 External retaining ring 1
72 163-0364 Bearing, pulley housing and shaft kit 2
73 163-0364 Bearing, pulley housing and shaft kit 1 (pulley only available in this kit)
74 163-0114 Belt 1
75 163-0188 Tension washer 1
76 163-0189 Bearing housing 2
77 163-0190 Square keyway 2
78 163-0191 Drive shaft 1
79 163-0192 Belt adjustment bracket 2
80 163-0052 Washer 7/8 steel (pkg of 5) 8
81 163-0115 Bolt 1/4-20 x 3 inch 2
83 163-0194 Bolt 3/8-16 x 7/8 2
84 163-0370 Lock washer (pkg of 5) 4
85 999-0060 Washer 1/4 split lock plain finish 2
86 163-0167 Flat washer 4
87 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
88 163-0185 Pulley 1
89 163-0197 Screw 5/16-18 x 3/8 set 2
90 999-0347 Screw 1/4-20 x 1/2 cup point socket set plain finish 1
91a 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated 4
91b 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
92 163-0198 Flexible pad driver 1
93 163-0199 Screw 1/4-28 x 1 flat head cap (pkg of 5) 6
94 163-0200 Screw #8 x 3/4 pan head sheet metal (pkg of 5) 3
95 991-2206 Center-Lok 3 pad holder 1
N/S 163-0180 Power cord clamp 1
N/S 163-0080 Cotter pin 1
N/S 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
