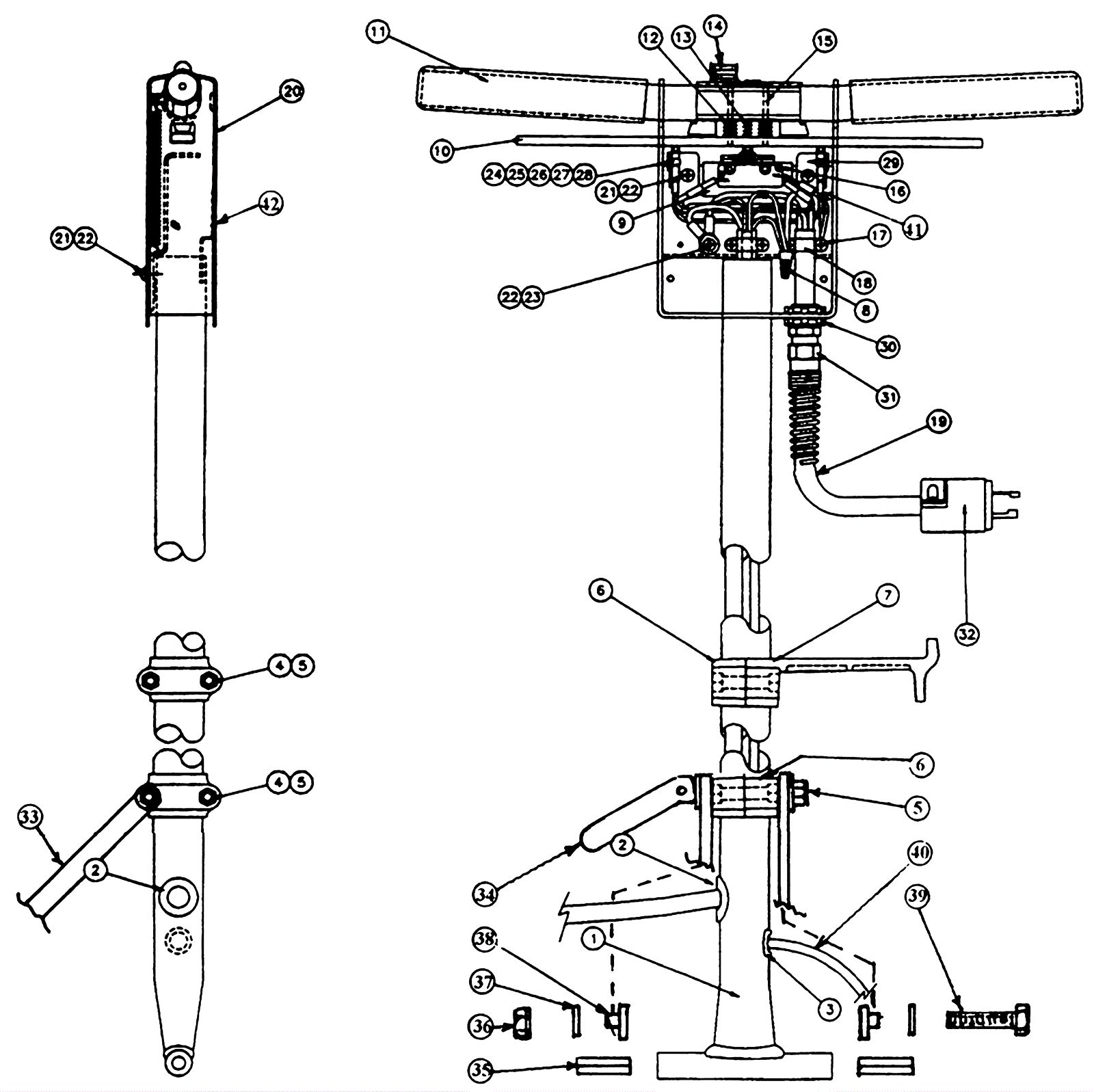

SM50800 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 163-0332 Handle weldment $241.74 1 usually ships 1-5 days
2 163-0333 Grommet $2.27 1 usually ships 1-5 days
3 163-0278 Grommet $2.09 1 usually ships 7-22 days
4 163-0334 Screw $1.74 4 usually ships 1-5 days
5 163-0138 Nut $1.09 4 ships same day
6 163-0156 Painted cord hook cap $106.37 3 usually ships 7-22 days
7 163-0141 Cord hook arm body $34.87 1 usually ships 7-22 days
8 163-0335 Wire nut $1.09 1 usually ships 1-5 days
9 163-0336 Insulation paper $1.73 1 usually ships 1-5 days
10 163-0155 Switch lever $9.15 1 usually ships 7-22 days
11 163-0386 Handle grip black (set of 2) $21.70 2 usually ships 7-22 days
14 163-0065 Safety switch kit $21.37 1 usually ships 7-22 days
15 163-0132 Roll pin $1.09 2 usually ships 7-22 days
16 163-0054 On/off switch kit $37.20 1 ships same day
17 163-0338 Screw $1.09 2 usually ships 1-5 days
18 163-0339 Cable clamp $1.09 2 usually ships 7-22 days
19a 163-0744 Pigtail cord $104.46 1 usually ships 7-22 days
19b 163-0117 14/3 extension cord with twist lock plug 50 foot $103.35 1 ships same day
20 163-0340 Switch box cover assembly $58.55 1 ships same day
21 163-0341 Lock washer $2.04 2 usually ships 7-22 days
22 163-0342 Screw $1.09 3 usually ships 7-22 days
23 163-0343 Washer $1.09 1 usually ships 1-5 days
24 163-0116 Microswitch $17.97 2 usually ships 3-12 days
25 163-0344 Solenoid switch insulation $1.09 2 usually ships 1-5 days
26 163-0137 Screw $1.09 4 usually ships 7-22 days
27 163-0146 Nut $1.09 4 usually ships 7-22 days
28 163-0145 Lock washer $1.09 4 usually ships 1-5 days
29 163-0142 Microswitch bracket $11.18 1 usually ships 7-22 days
30 163-0345 Nut $1.09 2 usually ships 1-5 days
31 163-0346 Strain relief $42.38 1 usually ships 7-22 days
32 992-1016 Male replacement twist lock plug $16.10 1 usually ships 5-16 days
33 163-0347 Handle support strut $7.74 2 usually ships 1-5 days
34 163-0077 Cam lock assembly $57.13 1 ships same day
35 163-0348 Roll pin $1.09 2 usually ships 7-22 days
36 163-0138 Nut $1.09 1 ships same day
37 163-0350 Washer $1.09 2 usually ships 1-5 days
38 163-0134 Spacer $5.04 2 usually ships 1-5 days
39 163-0351 Screw $1.09 1 usually ships 1-5 days
40 163-0282 Electro valve interconnect cord $8.67 1 usually ships 7-22 days
41 163-0352 Jumper wire connector assembly $2.27 1 usually ships 1-5 days
42 163-0353 Warning decal $1.09 1 usually ships 1-5 days
