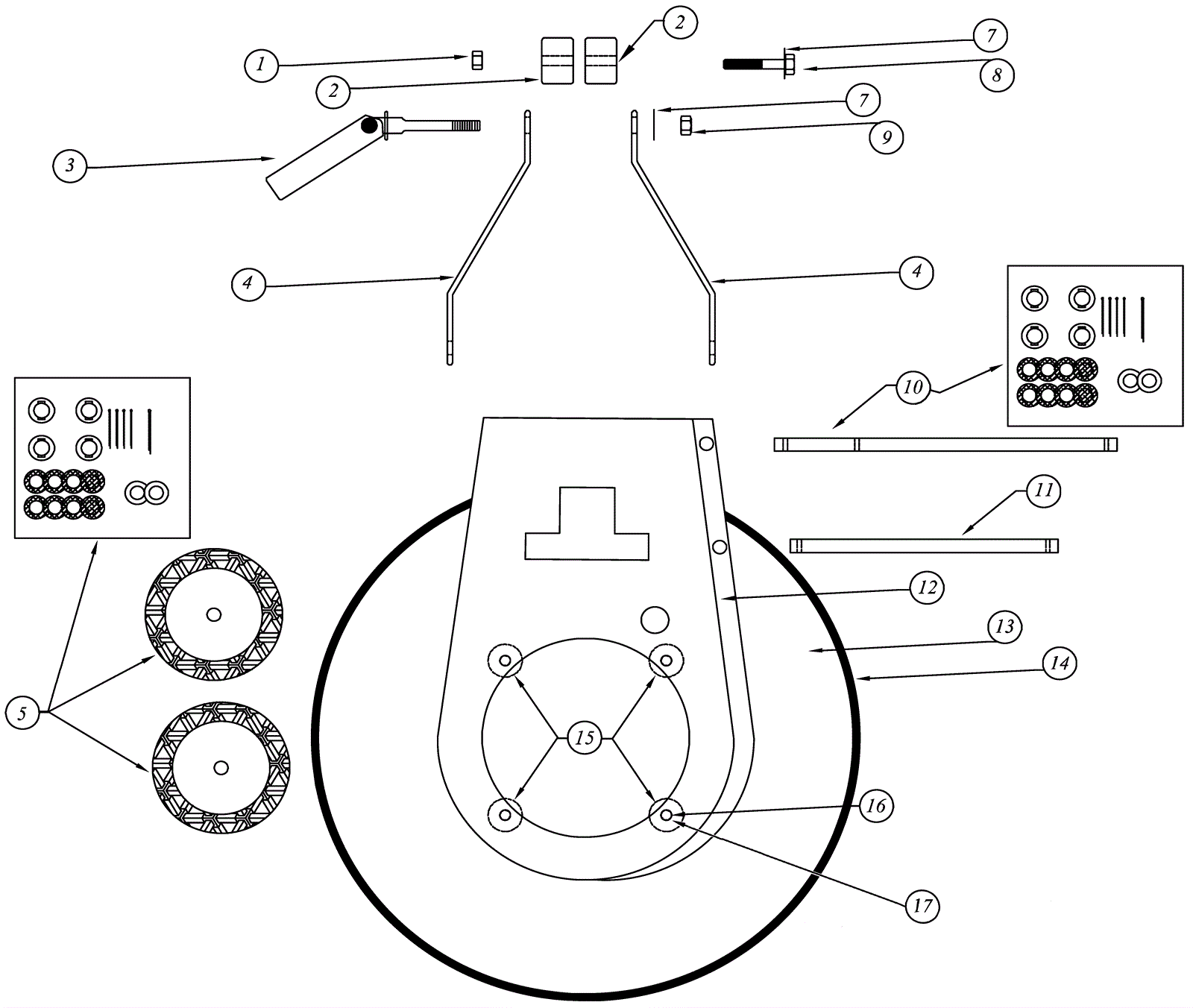

AR520 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 163-0283 Nut 3/8-16 thin nylock (pkg of 5) $11.50 1 usually ships 7-22 days
2 163-0284 Cord hook and cap $66.69 1 usually ships 7-22 days
3 163-0077 Cam lock assembly $57.13 1 ships same day
4a 163-0307 Connecting leg (pkg of 2) $62.08 1 usually ships 7-22 days
4b 163-0286 Connecting leg kit with hardware $165.89 2 usually ships 7-22 days
5 163-0287 Wheel kit (2 wheels with hardware) $78.79 1 ships same day
7 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
8 999-9120 Screw 3/8-16 x 2 1/2 hex head grade 8 yellow zinc plated $1.79 1 ships same day
9 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel $1.52 1 ships same day
10 163-0290 Wheel axle kit with hardware $41.27 1 usually ships 7-22 days
11 163-0291 Handle shaft $17.05 1 usually ships 1-5 days
12 163-0238 Electro valve frame $213.91 1 usually ships 1-5 days
13a 163-0292 Brush cover $190.12 1 (AR517) usually ships 1-5 days
13b 163-0293 Brush cover $181.18 1 (AR520) usually ships 1-5 days
14a 163-0382 17 inch bumper (black) $33.08 1 (AR517) usually ships 7-22 days
14b 163-0090 20 inch bumper (black) $72.74 1 (AR520) ships same day
15 163-0294 Spacer (pkg of 4) $6.05 4 usually ships 7-22 days
16 163-0295 Bolt 5/16-18 x 2 socket head $1.09 4 usually ships 1-5 days
17 163-0296 Washer $1.09 4 usually ships 1-5 days
N/S 163-0117 14/3 extension cord with twist lock plug 50 foot $103.35 1 ships same day
N/S 163-0118 14/3 pigtail cord with twist lock 20 inch $95.78 1 ships same day
N/S 163-0219 Horseshoe weight $257.27 1 usually ships 7-22 days
N/S 163-0165 Mounting pin kit $95.25 1 usually ships 7-22 days
N/S 163-0160 50 lb horseshoe weight kit $587.36 1 usually ships 7-22 days
KIT1 163-0304 Brush cover and bumper kit $455.87 1 (AR517) (includes 13a and 14a) usually ships 1-5 days
KIT2 163-0305 Brush cover and bumper kit $542.99 1 (AR520) (includes 13b and 14b) usually ships 1-5 days
