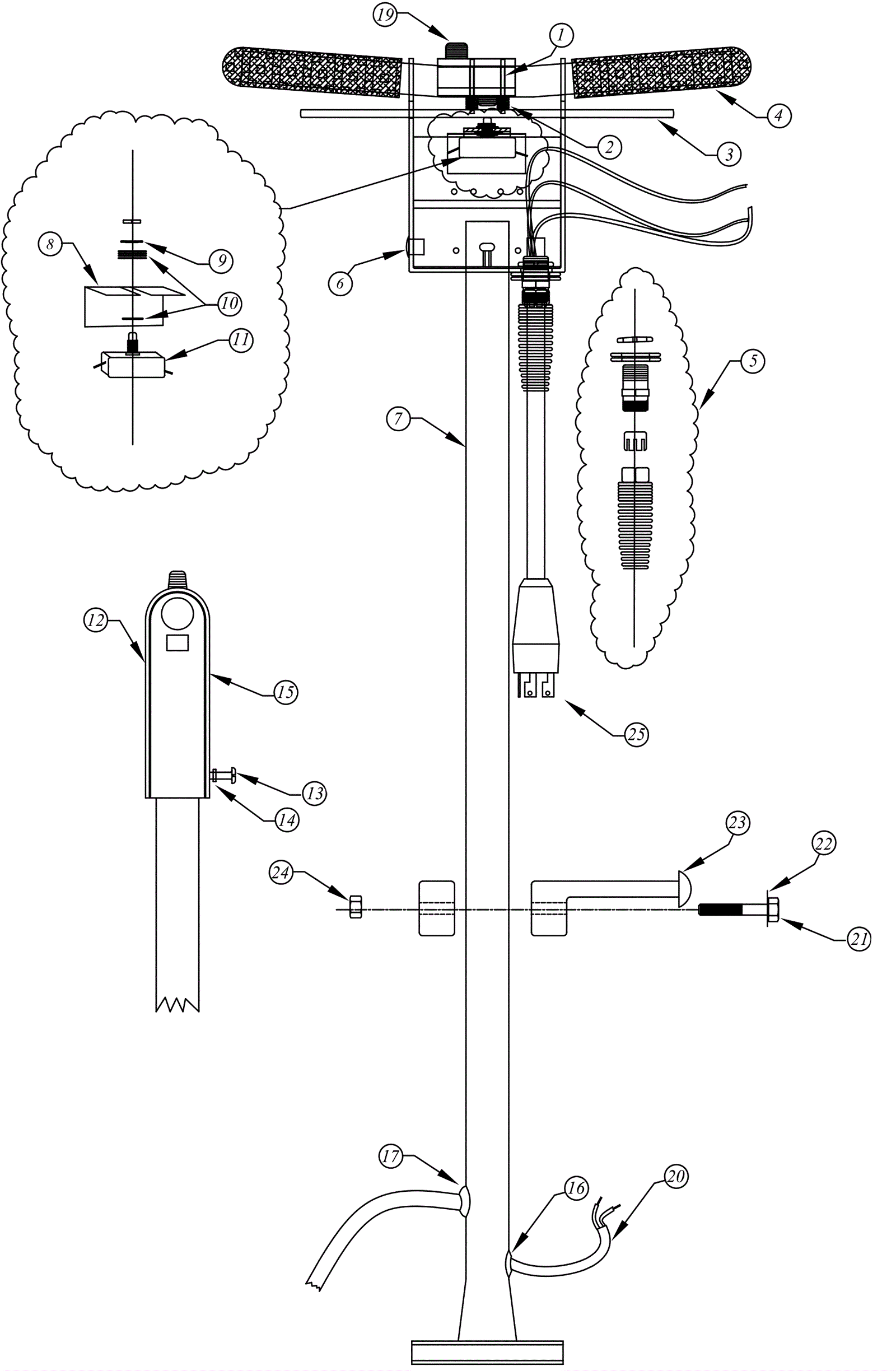

AR520 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
0 163-0229 Complete handle assembly (for aluminum base) $420.98 1 (includes 1-25) usually ships 1-5 days
1 163-0265 Roll pin $1.09 2 usually ships 7-22 days
2 163-0266 Spring (pkg of 5) $12.02 2 usually ships 7-22 days
3 163-0071 Trigger $42.69 1 usually ships 7-22 days
4 163-0268 Handle grip (pkg of 2) $22.99 1 ships same day
5 163-0376 Strain relief assembly $73.51 1 ships same day
6 163-0029 Button plug Call for price 1 usually ships 7-22 days
7 163-0271 Handle $263.95 1 usually ships 1-5 days
8 163-0272 Switch insulation (pkg of 5) $16.56 1 usually ships 7-22 days
9 163-0273 Washer internal lock (pkg of 5) $10.86 1 usually ships 7-22 days
10 163-0274 Washer flat (pkg of 5) $12.84 1 usually ships 7-22 days
11 163-0054 On/off switch kit $37.20 1 ships same day
12 163-0275 Switch box cover $69.05 1 usually ships 7-22 days
13 999-1680 Screw 10-24 x 1 pan thread rolling $0.99 2 usually ships 1-5 days
14 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
15 163-0277 Safety decal $4.55 1 usually ships 1-5 days
16 163-0278 Grommet $2.09 1 usually ships 7-22 days
17 163-0279 Grommet $2.39 1 usually ships 7-22 days
19a 163-0280 Safety switch $21.38 1 usually ships 7-22 days
19b 163-0281 Spring $2.37 1 usually ships 1-5 days
20 163-0282 Electro valve interconnect cord $8.67 1 usually ships 7-22 days
21 999-9120 Screw 3/8-16 x 2 1/2 hex head grade 8 yellow zinc plated $1.79 2 ships same day
22 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
23 163-0284 Cord hook and cap $66.69 1 usually ships 7-22 days
24 999-0959 Nut 3/8-16 hex $1.42 2 ships same day
25 163-0118 14/3 pigtail cord with twist lock 20 inch $95.78 1 ships same day
