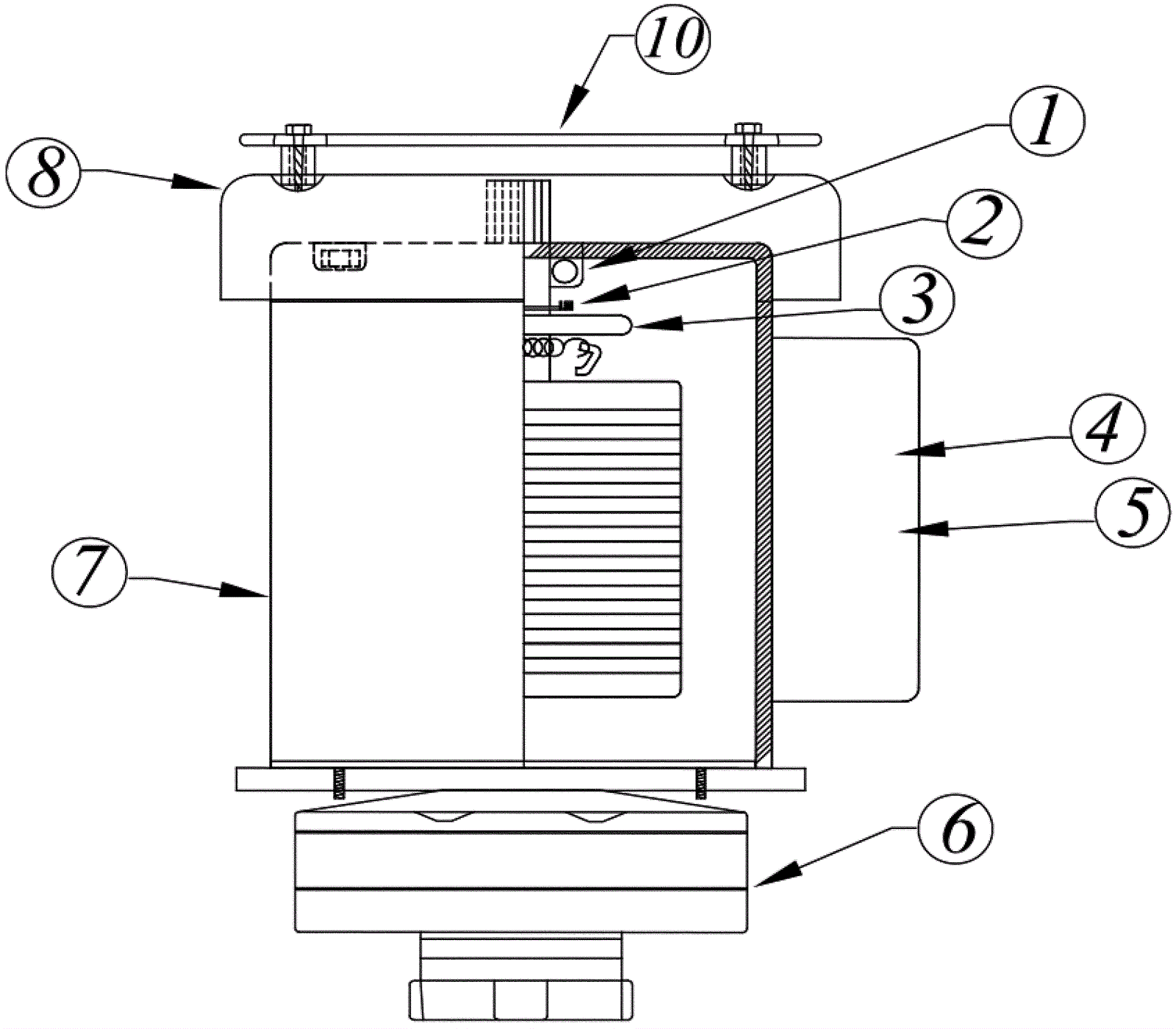

AR520 Motor and Gearbox Assembly

#PartDescriptionPriceReqNotesAvailability
1 163-0245 Top motor bearing $24.07 1 ships same day
2 163-0853 Stationary switch $186.78 1 usually ships 7-22 days
3 163-0247 Centrifugal switch $230.24 1 usually ships 7-22 days
4 163-0248 Start capacitor $61.55 1 usually ships 7-22 days
5 163-0249 Run capacitor $263.92 1 usually ships 7-22 days
6 163-0250 Gearbox assembly $783.76 1 usually ships 1-5 days
7 163-0251 1 1/2 HP motor $1,077.46 1 usually ships 7-22 days
8 163-0252 Chrome motor cover $228.58 1 usually ships 7-22 days
10 163-0360 Bracket with hardware $63.97 1 usually ships 1-5 days
N/S 163-0253 Fan $84.92 1 usually ships 7-22 days
