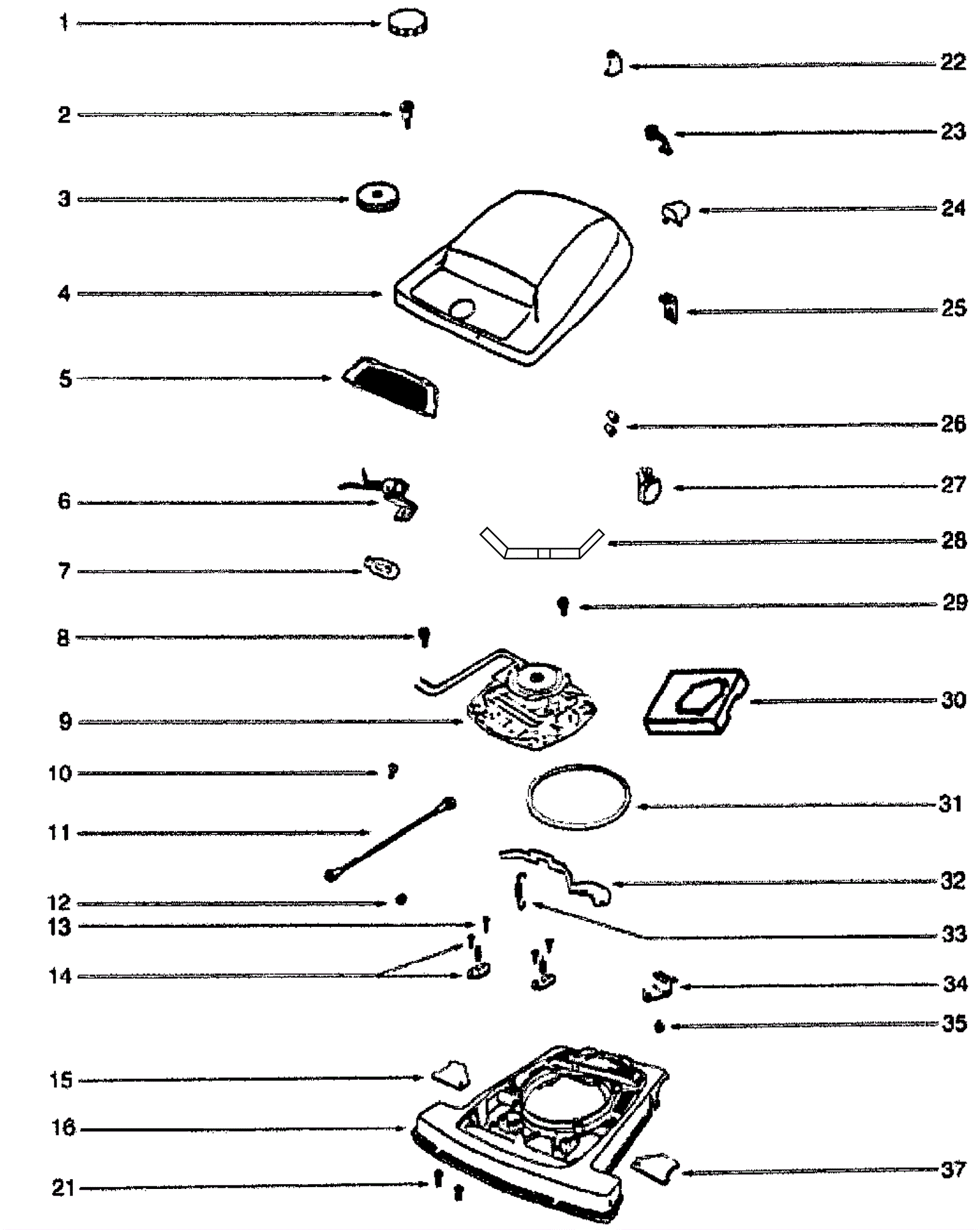

POWERLINE 16 Base and Hood Assembly

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (Cap) (not required on this model) usually ships 3-26 days
2 182-0003 Shoulder screw $14.01 1 ships same day
3 182-0004 Knob $4.61 1 usually ships 12-20 days
4 182-0151 Hood assembly $66.65 1 usually ships 12-20 days
5 N/A Not available Call for price 1 (Lense and housing assembly) (not required on this model) usually ships 3-26 days
6 N/A Not available Call for price 1 (Headlight socket assembly) (not required on this model) usually ships 3-26 days
7 N/A Not available Call for price 1 (Headlight) (not required on this model) usually ships 3-26 days
8 182-0012 Screw 10-14 x .88 phillips pan plastite $1.05 1 ships same day
9 182-0009 120V vacuum motor assembly $69.67 1 ships same day
10 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
11 182-0129 Wire and terminal assembly $3.29 1 usually ships 12-20 days
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
13 182-0008 Motor mounting screw $4.61 2 ships same day
14 182-0013 Screw and clamp assembly $3.45 2 ships same day
15 182-0014 Wheel cover $3.37 1 usually ships 12-20 days
16a 182-0777 Base assembly $54.37 1 (includes 16b-16d) usually ships 1-5 days
16b 182-0115 Right side cam $4.61 1 usually ships 12-20 days
16c 182-0116 Left side cam $2.72 1 ships same day
16d 182-0029 Cam rivet $1.05 1 ships same day
21 182-0016 Screw $0.99 2 usually ships 12-20 days
22 182-0018 Bracket $3.29 1 usually ships 1-5 days
23 182-0017 Strain relief bushing $5.71 1 usually ships 12-20 days
24 182-0006 Button switch $3.29 1 usually ships 1-5 days
25 182-0020 Switch clip $4.03 1 usually ships 12-20 days
26 998-0062 Wire nut (blue) $0.99 2 ships same day
27 182-0019 Push switch $9.08 1 ships same day
28 182-0753 Light shield $0.99 1 usually ships 1-5 days
29 182-0008 Motor mounting screw $4.61 1 ships same day
30 182-0969 Duct assembly $3.16 1 usually ships 1-5 days
31 182-0010 Motor seal gasket $0.99 1 ships same day
32 182-0023 Foot pedal $4.71 1 usually ships 12-20 days
33 182-0011 Foot pedal spring $4.09 1 ships same day
34 182-0119 Bag clip retainer bracket $1.85 1 ships same day
35 182-0756 Nut (pkg of 10) $3.16 1 usually ships 1-5 days
37 182-0014 Wheel cover $3.37 1 usually ships 12-20 days
