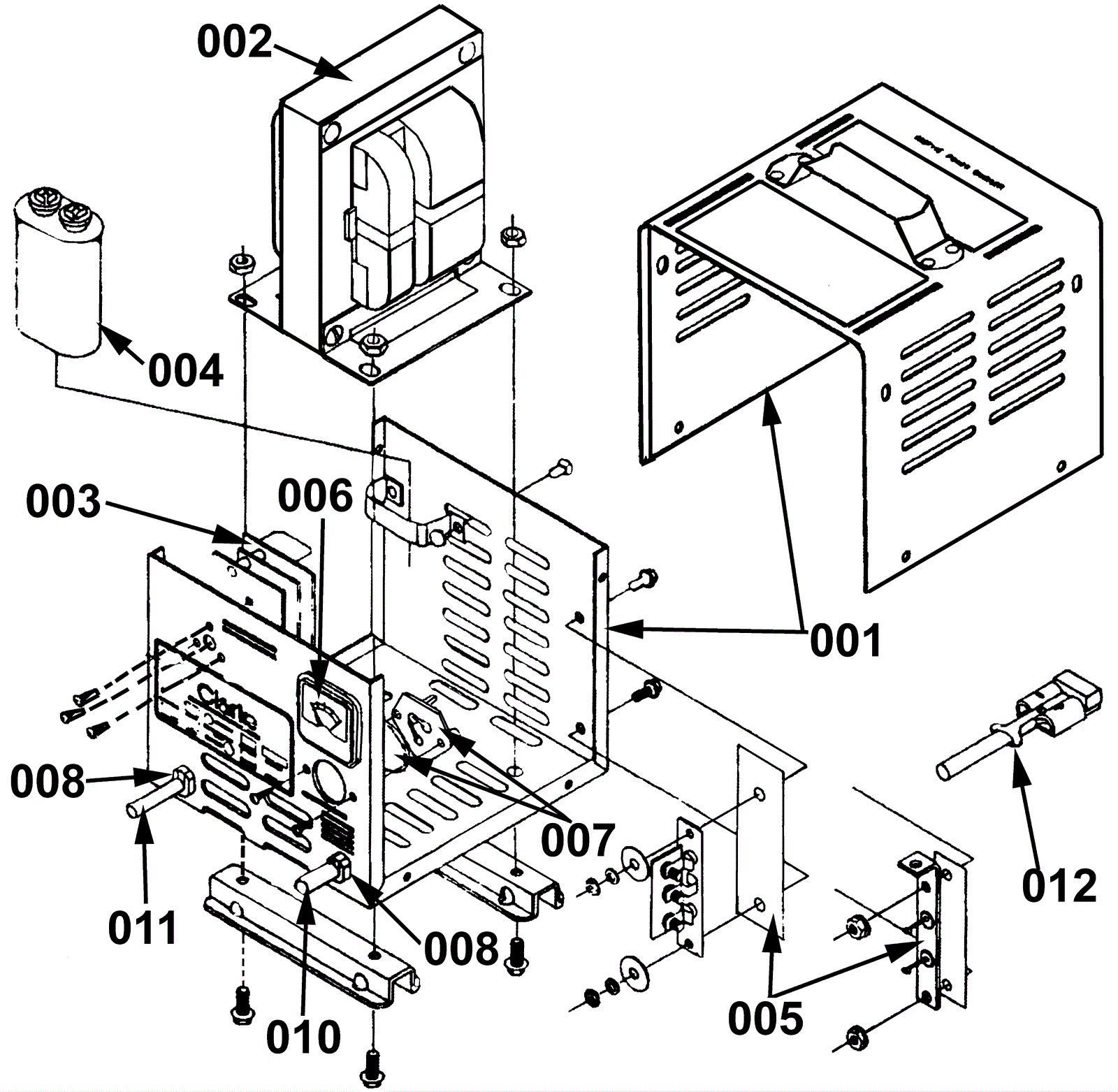

| # | Part | Description | Price | Req | Notes | Availability |
|---|
001 |
162-5065
|
Charger case assembly |
$154.65
|
1 |
|
usually ships 1-5 days |
002a |
162-5066
|
36V transformer assembly |
$297.00
|
1 |
|
usually ships 1-5 days |
002b |
162-5067
|
24V transformer assembly (OBSOLETE) |
$431.19
|
1 |
|
usually ships 1-5 days |
003a |
162-5039
|
24V 2-wire electronic timer |
$261.77
|
1 |
|
usually ships 8-21 days |
003b |
162-5037
|
24V 3 wire timer assembly (OBSOLETE) |
$285.71
|
1 |
|
usually ships 8-21 days |
003c |
162-5051
|
Electronic timer-new style 24V (OBSOLETE) |
$184.66
|
1 |
|
usually ships 8-21 days |
003d |
162-5036
|
36V 3-wire electronic timer (old style) (OBSOLETE) |
$238.10
|
1 |
(This is the old style timer. It has 3 levels. The green control board is sandwiched between 2 metal plates. The control board is approx. 3 3/4 in by 2 1/2 inches) |
usually ships 8-21 days |
003e |
162-5095
|
36V electronic timer assembly (OBSOLETE) |
$158.40
|
1 |
(slide out removable style) |
usually ships 8-21 days |
003f |
162-5054
|
36V 2-wire electronic timer (new style) (OBSOLETE) |
$233.77
|
1 |
(This is the new style timer. It has 2 levels. The green control board attached to a white control board. The control board is approx. 2 in by 2 inches.) |
usually ships 8-21 days |
003g |
162-5022
|
36V 2-wire electronic timer (old style) (OBSOLETE) |
$230.37
|
1 |
(This is the old style timer. It has 3 levels. The green control board is sandwiched between 2 metal plates. The control board is approx. 3 3/4 in by 2 1/2 inches.) |
usually ships 8-21 days |
004 |
162-5008
|
24V & 36V capacitor |
$64.38
|
1 |
|
usually ships 5-16 days |
005a |
162-5006
|
Heat sink/diode assembly (includes 2 diodes) |
$62.44
|
1 |
|
usually ships 8-21 days |
005b |
162-5114
|
Heatsink assembly with 2 diodes (OBSOLETE) |
$53.90
|
1 |
(model 09513) |
usually ships 8-21 days |
006a |
162-5085
|
Ammeter |
$103.33
|
1 |
(36V) (before week 12 year 90) |
usually ships 8-21 days |
006b |
162-5009
|
Ammeter (corner mount) |
$78.53
|
1 |
(36V) (after week 12 year 90) |
usually ships 8-21 days |
006c |
162-5085
|
Ammeter |
$103.33
|
1 |
(24V) |
usually ships 8-21 days |
007a |
372-1254
|
Fuse assembly |
$31.83
|
1 |
|
ships same day |
007b |
162-5024
|
24V & 36V fuse holder assembly (cap not sold separately) |
$29.97
|
1 |
|
usually ships 8-21 days |
008 |
170-1284
|
Strain relief |
$8.28
|
2 |
|
usually ships 4-15 days |
010a |
162-5033
|
36V DC cord set with 175amp large SB175 gray plug |
$120.88
|
1 |
(36V) |
usually ships 8-21 days |
010b |
162-5005
|
36V DC cord set with 50amp small SB50 gray plug |
$120.88
|
1 |
(36V) |
ships same day |
010c |
162-5019
|
24V DC cord set with 175amp large SB175 red plug |
$101.90
|
1 |
(24V) |
usually ships 8-21 days |
010d |
162-5034
|
24V DC cord set with 50amp small SB50 red plug |
$101.90
|
1 |
(24V) |
usually ships 8-21 days |
011 |
162-5018
|
14/3 AC cord set with molded plug |
$68.93
|
1 |
|
usually ships 8-21 days |
012a |
162-5003
|
175amp charger plug with pins and brackets (gray) SB175 |
$98.77
|
1 |
(36V) |
ships same day |
N/S |
162-5004
|
Heyco plastic bushing |
$5.77
|
1 |
(model 08714 - AC Cord) |
ships same day |
N/S |
162-5007
|
Amp meter for 36 volt chargers with u bracket |
$44.96
|
1 |
(model 07110 before 08/1990) |
usually ships 8-21 days |
N/S |
162-5030
|
24V DC relay (OBSOLETE) |
$48.95
|
1 |
(24V) |
usually ships 8-21 days |
N/S |
162-5035
|
36V relay |
$49.95
|
1 |
(model 17120) |
ships same day |
N/S |
162-5038
|
24V relay |
$40.05
|
1 |
(model 13760 built before week 39/2003) |
ships same day |
N/S |
162-5046
|
Capacitor, 2ufd (OBSOLETE) |
$10.76
|
1 |
(model 06685) |
usually ships 8-21 days |
N/S |
162-5047
|
Capacitor, 20.5ufd (OBSOLETE) |
$21.50
|
1 |
(models 8650 and 8600) |
usually ships 8-21 days |
N/S |
162-5050
|
Capacitor 3 ufd 660 VAC |
$70.73
|
1 |
(model 19300) |
usually ships 8-21 days |
N/S |
162-5026
|
Gray plug with pins & clamp 50 amp |
$29.97
|
1 |
|
usually ships 8-21 days |
