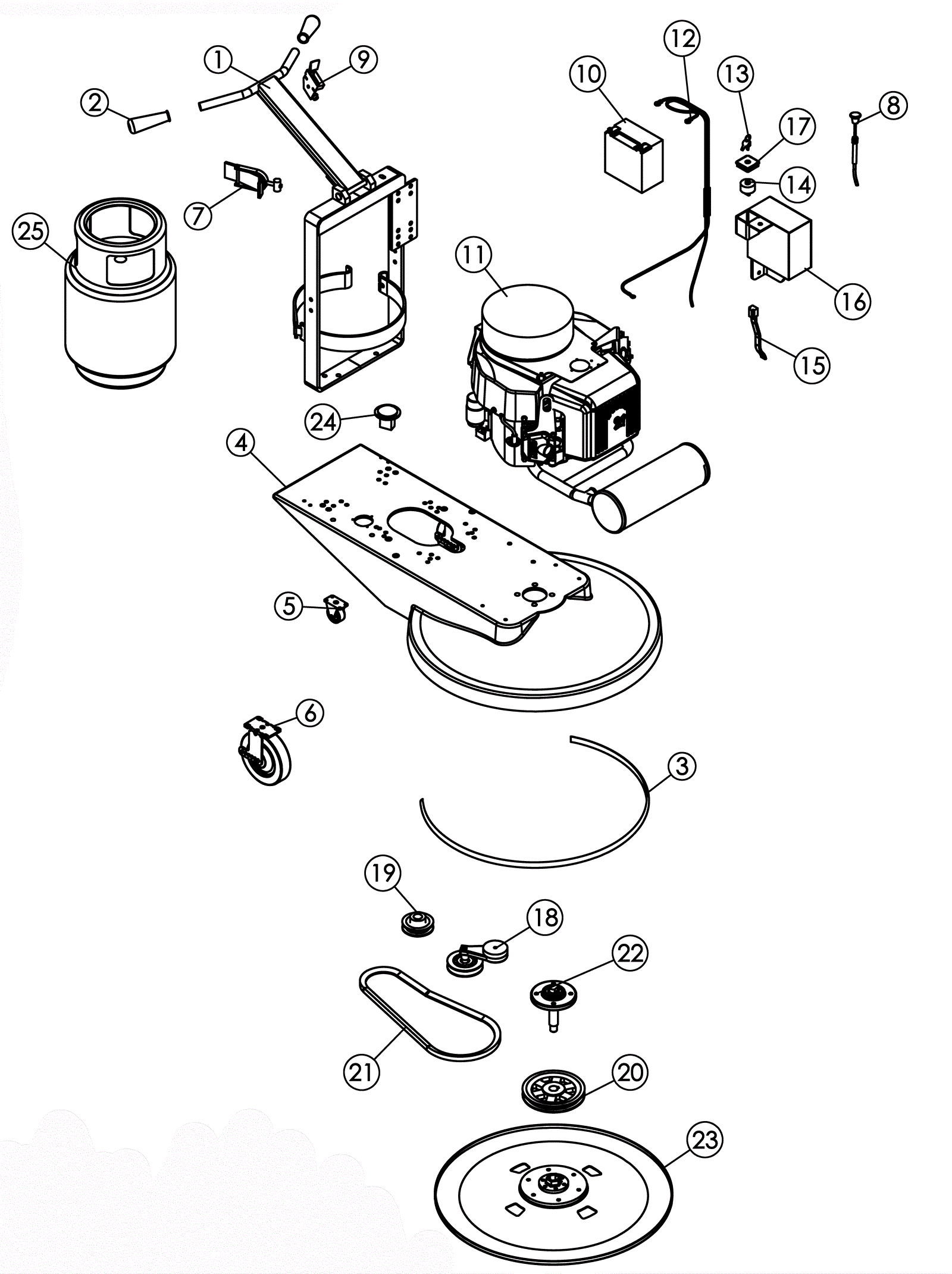

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
160-0021
|
Handle |
1 |
|
|
2a |
154-0077
|
Handle grip |
2 |
|
|
2b |
991-8571
|
Handle grip |
2 |
(NON-OEM) |
|
3 |
154-0026
|
Bumper molding (black) (sold by the foot)(OBSOLETE) |
8 feet |
|
|
4 |
160-0073
|
27 inch Eagle deck |
1 |
|
|
5 |
181-1282
|
2 inch caster wheel |
2 |
|
|
6 |
160-0062
|
6 inch caster wheel with bracket (standard) |
2 |
|
|
7 |
154-0005
|
Propane tank strap |
1 |
|
|
8 |
160-0070
|
Choke cable (OBSOLETE) |
1 |
|
|
9 |
160-0184
|
Throttle cable with choke |
1 |
|
|
10 |
162-0007
|
12V 12Ah sealed battery |
1 |
|
|
11 |
N/A
|
Not available |
1 |
|
|
12 |
160-0132
|
Battery connector for Kawasaki |
1 |
|
|
13 |
160-0311
|
Key |
1 |
|
|
14 |
169-0016
|
Key switch assembly with two keys |
1 |
|
|
15 |
164-1342
|
Wire harness assembly (OBSOLETE) (OBSOLETE) |
1 |
|
|
16 |
160-0130
|
Battery box |
1 |
|
|
17 |
160-0071
|
Key switch housing with 9/16 hole |
1 |
|
|
18 |
160-0303
|
Tensioner |
1 |
|
|
19 |
160-0036
|
Pulley 3.5 x 1 |
1 |
|
|
20 |
160-0026
|
Pulley 7.0 x 1 |
1 |
|
|
21 |
160-0174
|
Belt BX53 |
1 |
|
|
22 |
164-1367
|
Front bearing and shaft assembly (standard) (OBSOLETE) |
1 |
|
|
23 |
160-0129
|
Complete new style 2004 pad driver assembly 27 inch |
1 |
|
|
24 |
154-0019
|
Hour meter |
1 |
|
|
25 |
161-0003
|
Aluminum propane tank |
1 |
|
|
