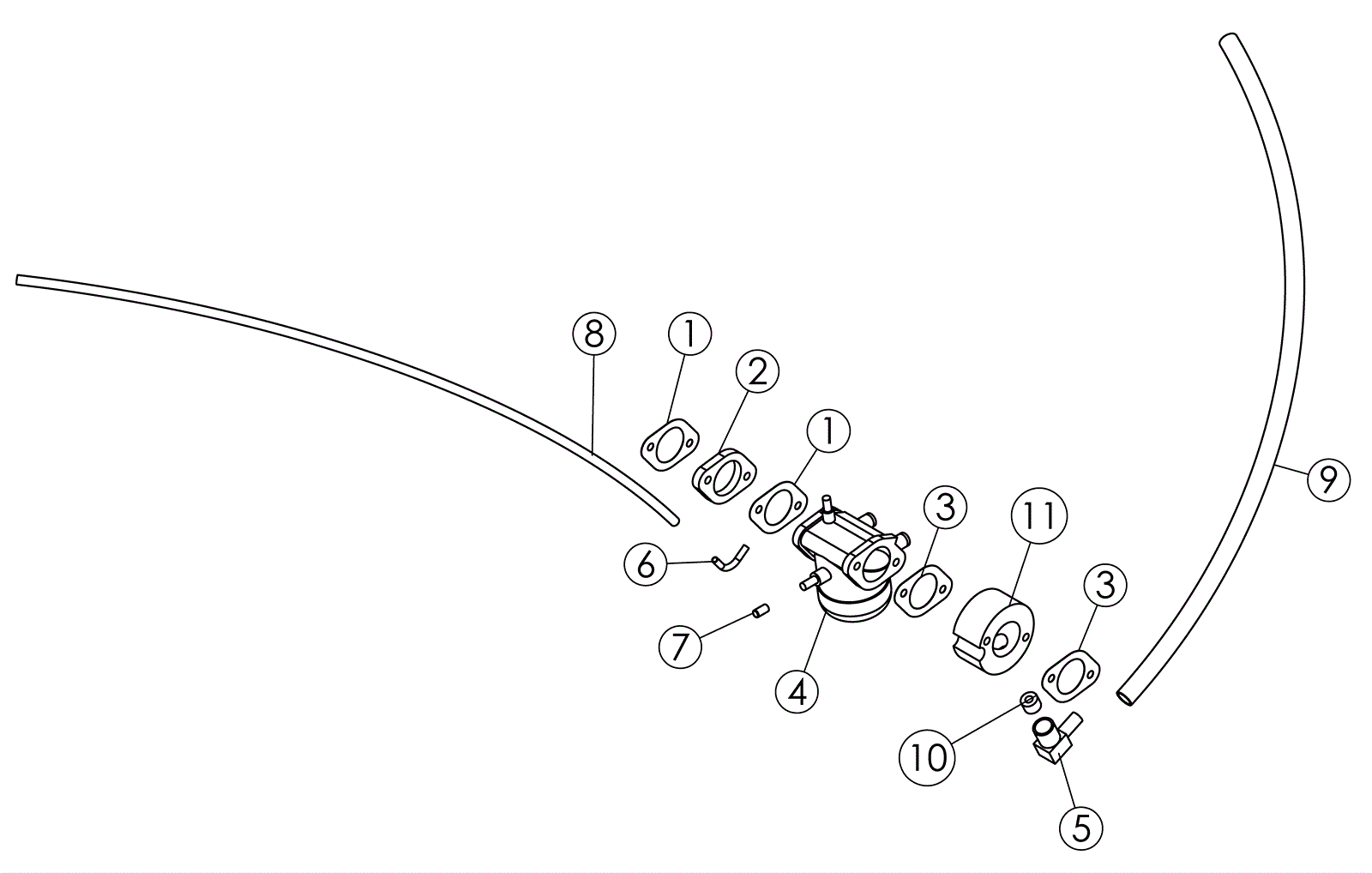

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
178-7022
|
Intake manifold gasket |
$2.17
|
2 |
|
ships same day |
2 |
178-0166
|
Insulator |
$5.70
|
1 |
|
usually ships 7-10 days |
3 |
178-0042
|
Carb intake gasket |
$1.63
|
2 |
|
ships same day |
4 |
160-0136
|
Carburetor assembly |
$319.83
|
1 |
|
usually ships 16-20 days |
5 |
160-0049
|
Barb fitting 3/8 x 3/8mp |
$32.52
|
1 |
|
usually ships 16-20 days |
6 |
160-0139
|
Vacuum tube |
$11.33
|
1 |
|
usually ships 16-20 days |
7 |
160-0137
|
Rubber cap 1/4 |
$5.70
|
1 |
|
usually ships 16-20 days |
8 |
991-6006
|
Vacuum hose (sold by the foot) |
$9.42
|
3 |
|
usually ships 16-20 days |
9 |
991-6005
|
Fuel hose (sold by the foot) |
$3.96
|
3 |
|
usually ships 12-18 days |
10 |
160-0413
|
Orifice |
Call for price
|
1 |
|
usually ships 16-20 days |
11a |
160-0414
|
Full load block |
Call for price
|
1 |
(13 HP motor only) |
usually ships 16-20 days |
11b |
160-0115
|
Fuel load block |
$194.23
|
1 |
(17 HP motor only) |
usually ships 16-20 days |
