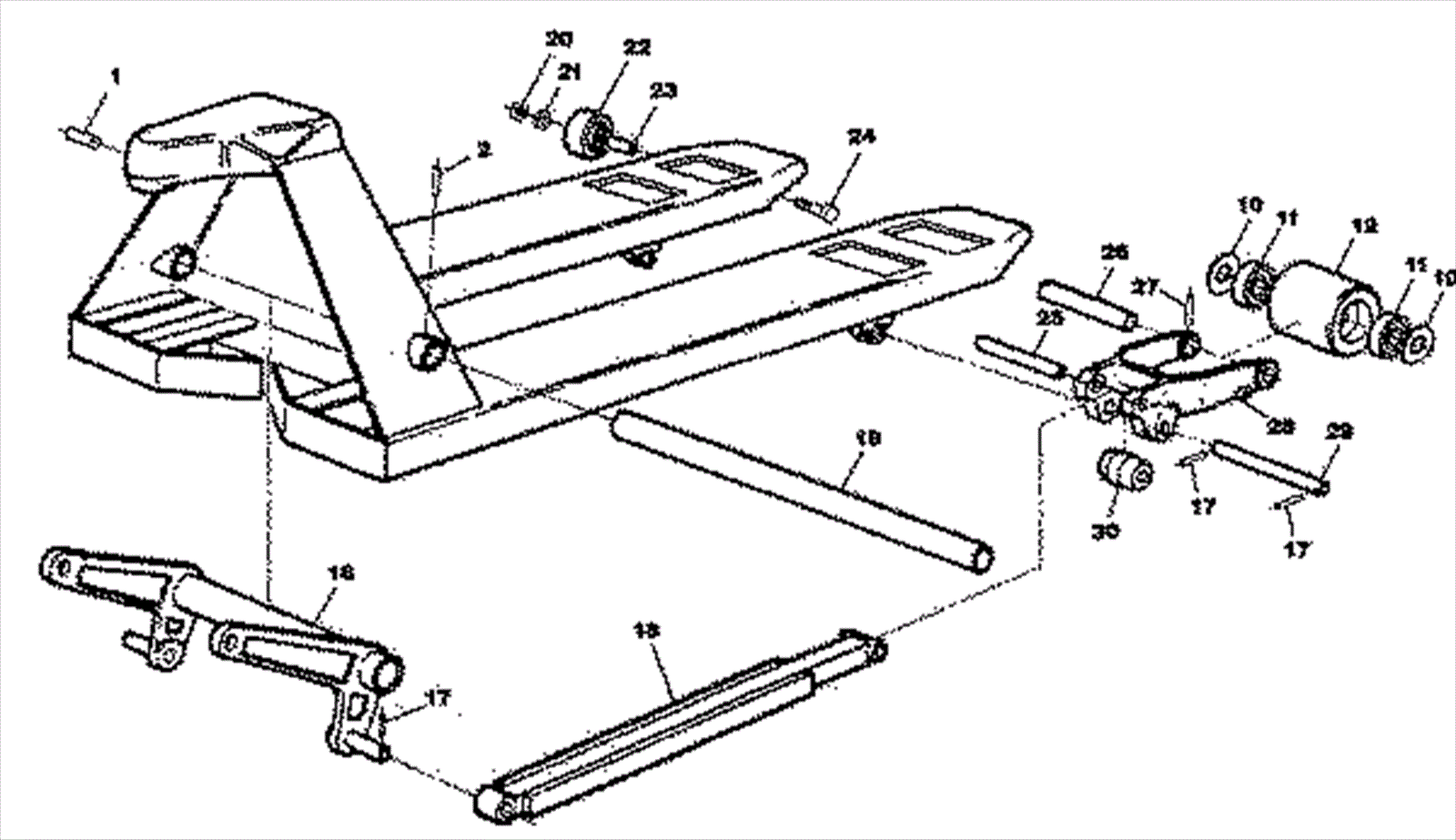

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
159-0012
|
Roll pin |
|
|
|
002 |
159-0013
|
Roll pin |
|
|
|
010 |
150-0013
|
Load roller washer |
|
|
|
011 |
150-0037
|
Bearing |
|
|
|
012 |
150-0047
|
Load roller assembly, poly |
|
|
|
016 |
159-0011
|
Lifting link 27 wide jack - special order item |
|
|
|
017 |
158-0022
|
Roll pin |
|
|
|
018 |
159-0023
|
Push rod 48 forks |
|
|
|
019 |
159-0024
|
Lifting link shaft 27 wide jack |
|
|
|
020 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
|
021 |
999-0283
|
Bolt 5/16-18 x 2 1/4 hex head grade 5 zinc plated |
|
|
|
022 |
159-0027
|
Entry roller |
|
|
|
023 |
159-0028
|
Sleeve |
|
|
|
024 |
159-0029
|
Bolt |
|
|
|
025 |
159-0030
|
Push rod axle |
|
|
|
026 |
159-0031
|
Load roller axle |
|
|
|
027 |
159-0032
|
Roll pin |
|
|
|
028 |
159-0033
|
Load roller bracket |
|
|
|
029 |
159-0034
|
Pivot axle |
|
|
|
030 |
159-0035
|
Entry or exit roller |
|
|
|
N/S |
159-0136
|
Steer wheel axle for TM 55 SN ending in 99 or 00 |
|
|
|
N/S |
159-0137
|
Seal kit for TM 55 SN ending in 99 or 00 |
|
|
|
