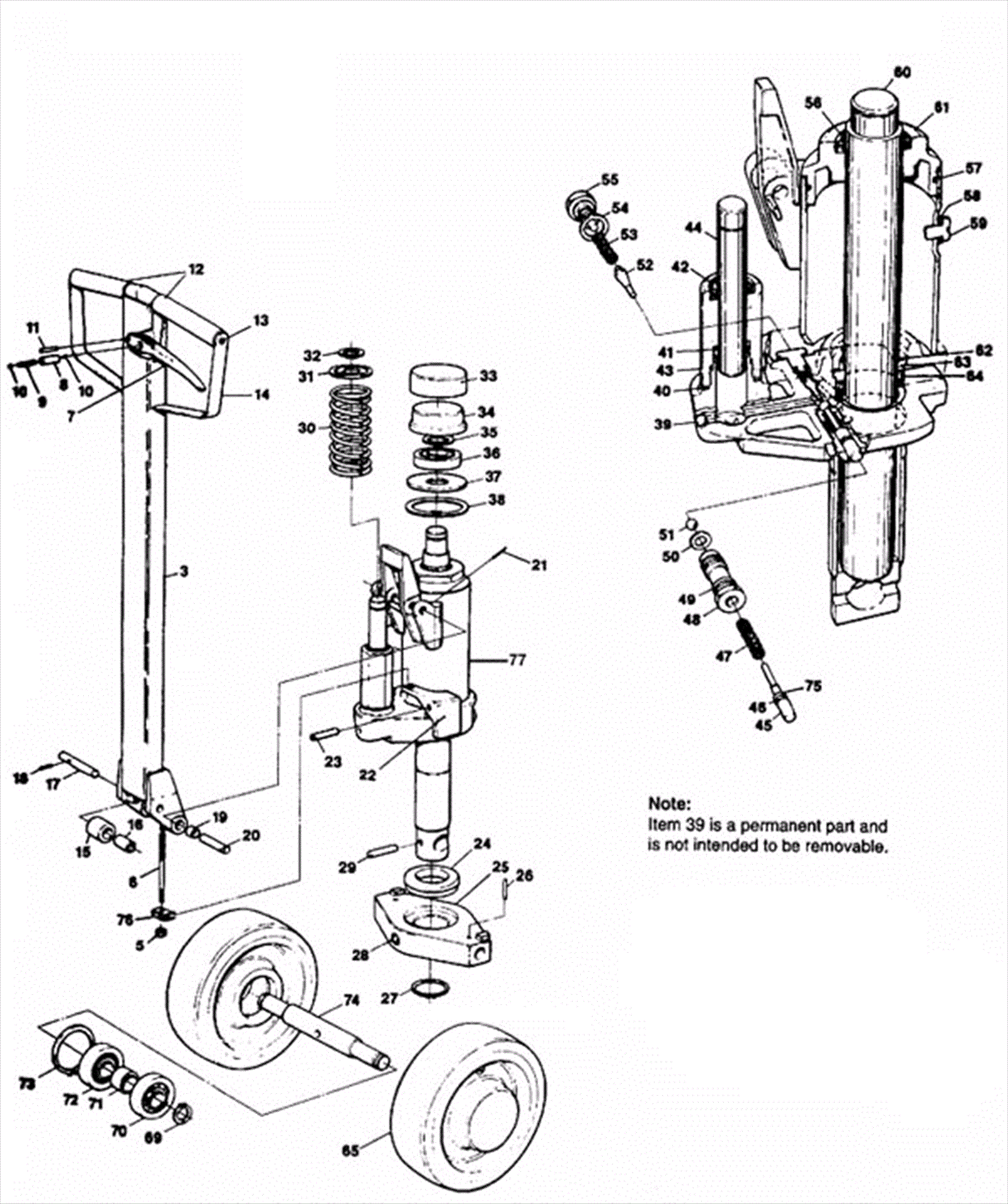

Hydraulic Unit

#PartDescription ReqNotesAvailability
003a 158-0052 Handle frame
003b 158-0053 Handle assembly (OBSOLETE)
005 158-0054 Adjusting nut
006a 158-0055 Control rod & chain assembly
006b 158-0056 Master link
006c 158-0057 Chain (OBSOLETE)
006d 158-0058 Pin
007 158-0059 Control lever
008 158-0060 Sleeve
009 158-0061 Spring
010 158-0062 Ball
011 158-0063 Roll pin
012 158-0064 Handle grip
013 158-0065 Screw
014 158-0066 Clamp
015 158-0067 Roller
016 158-0068 Bushing
017 158-0069 Pin
018 158-0070 Roll pin
019 158-0071 Handle bushing
020 158-0072 Handle pin/axle
021 158-0073 Roll pin
022 158-0074 Release lever
023 158-0075 Roll pin
024 158-0076 Traverse bearing
025 158-0077 Traverse
026 158-0022 Roll pin
027 158-0079 Snap ring
028 158-0009 Grease fitting threaded
029 158-0081 Roll pin
030 158-0154 Handle return spring, heavy duty
031 158-0082 Washer
032 158-0083 Snap ring
033 158-0084 Insert
034 158-0085 Bearing cap
035 158-0086 Snap ring
036 158-0087 Bearing
037 158-0088 Washer
038 158-0089 Snap ring
039 N/A Not available Ball (not to be removed)
040 158-0090 Washer
041 158-0091 U-cup
042 158-0093 Scraper
043 158-0094 Pump cylinder
044 158-0095 Piston
045 158-0097 Release pin
046 158-0098 Scraper
047 158-0099 Spring
048 158-0100 Release pin guide
049 158-0101 O-ring
050 158-0102 Washer
051 158-0103 Ball
052 158-0104 Valve
053 158-0105 Spring
054 158-0106 Washer
055 158-0107 Screw plug
056 158-0108 Scraper
057 158-0109 O-ring
058 158-0110 Washer
059 999-0472 Bolt M10-1.5 x 12mm hex head full thread zinc
060 158-0112 Ram
061 158-0113 Top nut
062 158-0114 Snap Ring
063 158-0115 Bushing
064 158-0116 U-cup
065a 158-0159 Poly steer wheel assembly w/ steel core and bearings
065b 158-0160 Hub cap for wheel 158-0159
069 158-0121 Snap ring
070 150-0037 Bearing
072 150-0037 Bearing
074 158-0126 Steer wheel axle
075 158-0127 Spring guide
076 158-0128 Spring clip
077 158-0173 Pump with steer wheels and axles
KIT 158-0133 Super seal kit (includes 23 40-42 45-54 56-58 62-64 75)
KIT 158-0136 Slim seal kit (inc 40-42 46 49-51 54 56-58 64
KIT 158-0131 Lift cylinder kit (inc 56 58 64)
KIT 158-0132 Valve packing kit (inc 46 49 51 54)
KIT 158-0129 Pump cylinder kit (inc 40 41 42)
