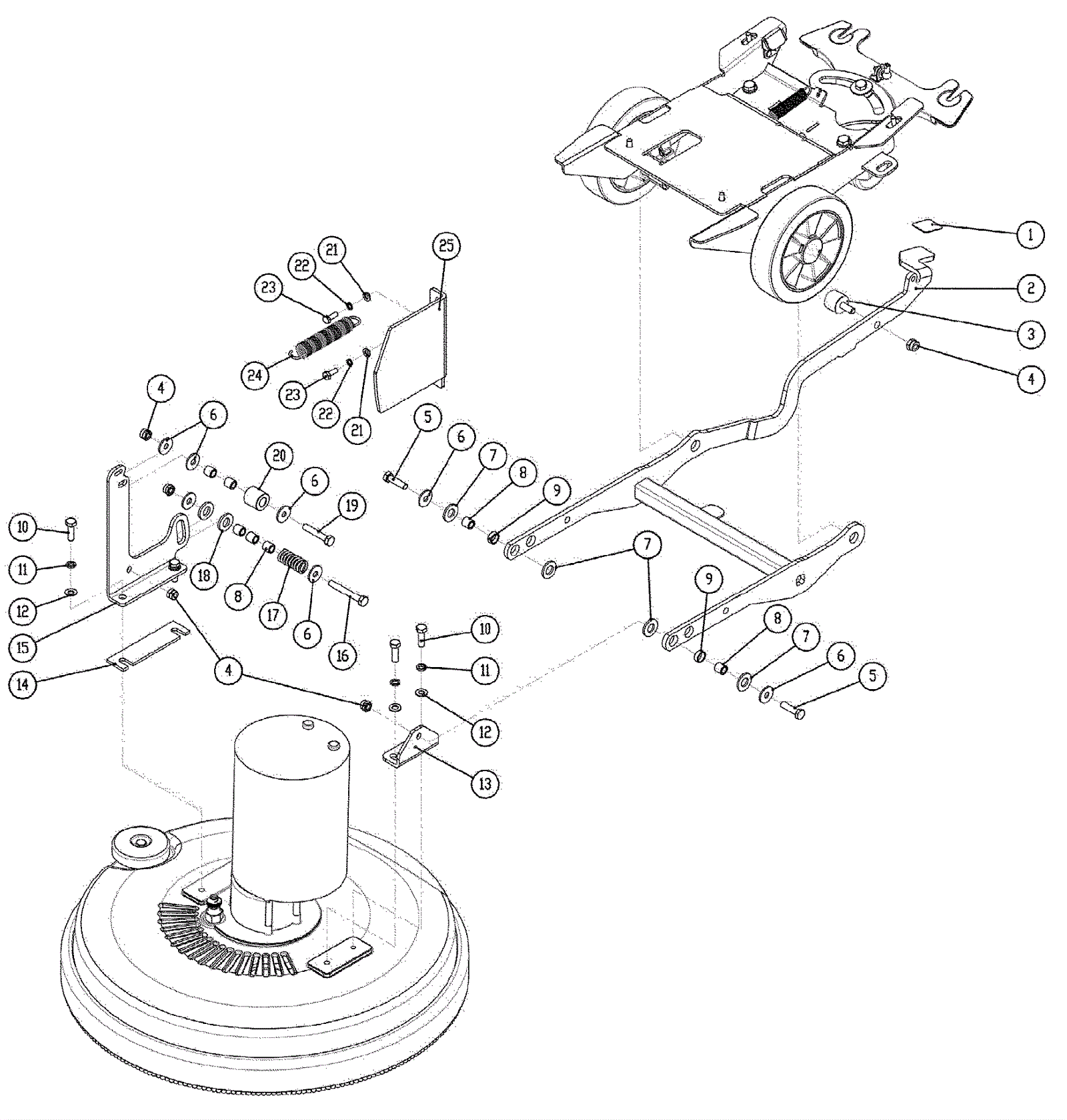

Scrub Head Lift Assembly

#PartDescription ReqNotesAvailability
1 278-0273 Non-slip mat 1
2 278-0274 Scrub head lift bracket 1
3 278-0275 Bumper 1
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 5
5 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
6 999-6695 Washer M8 fender stainless steel 6
7 278-0174 Nylon spacer 4
8 278-0033 Spacer 7
9 278-0163 Sleeve 2
10 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
11 999-0674 Washer M8 split lock plain finish 4
12 999-9097 Washer M8 flat stainless steel 4
13 278-0276 Left hand bracket 1
14 278-0277 Spacer 1
15 278-0278 Right hand bracket 1
16 999-1155 Screw M8-1.25 x 60mm hex head 1
17 278-0279 Spring 1
18 278-0055 Thrust bearing 2
19 278-0219 Screw M8 1
20 278-0280 Roller 1
21 999-6714 Washer M6 x 12mm flat stainless steel 2
22 999-1117 Washer M6 split lock stainless steel 2
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
24 278-0281 Spring 1
25 278-0282 Guide bracket 1
