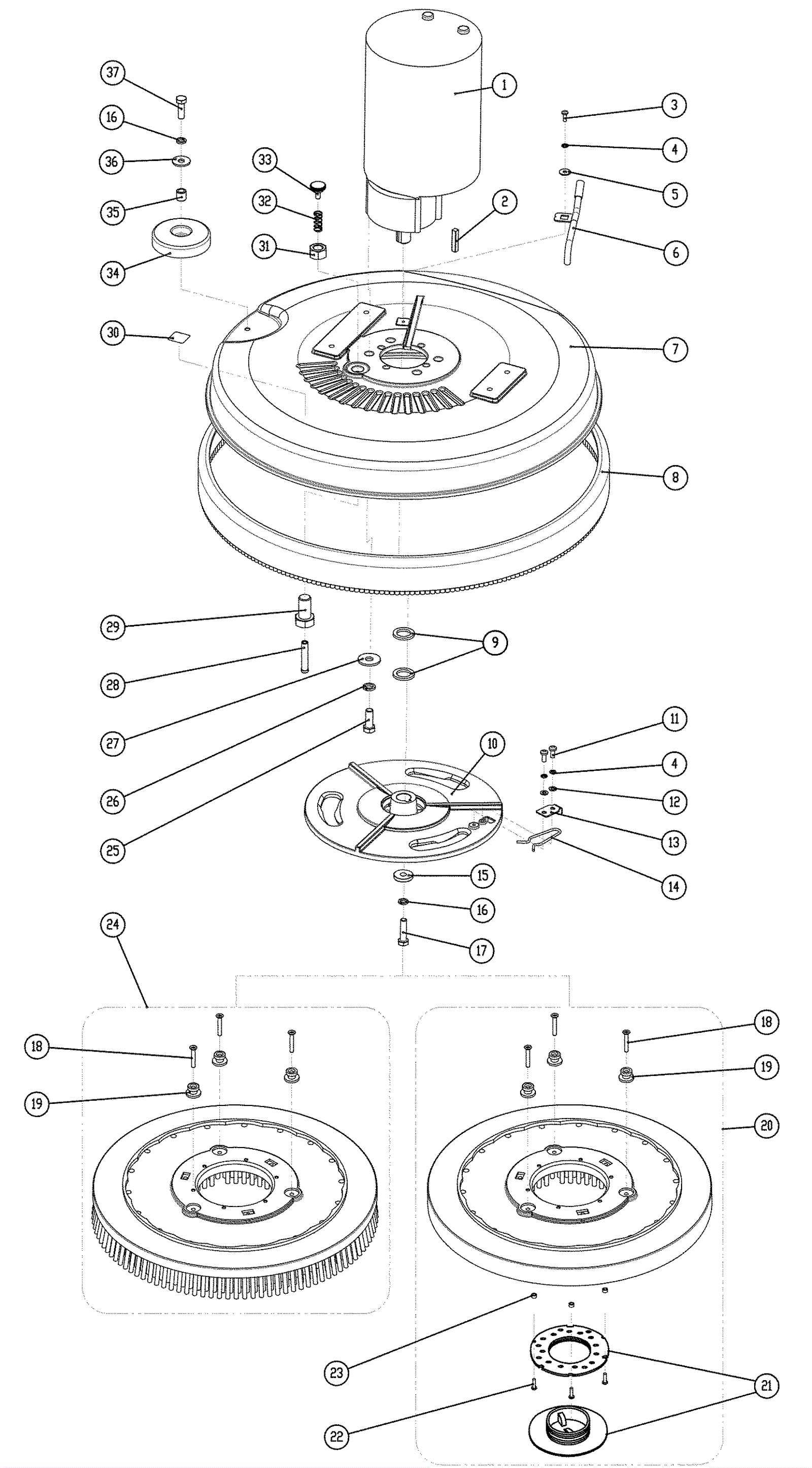

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
278-0009
|
24V brush motor kit |
1 |
|
|
1b |
278-1366
|
Brush motor carbon brush |
2 |
|
|
2 |
278-0186
|
Square key |
1 |
|
|
3 |
999-1645
|
Screw M4-.7 x 12mm hex head stainless steel |
1 |
|
|
4 |
999-9132
|
Washer M5 split lock stainless steel |
3 |
|
|
5 |
999-9100
|
Washer M5 flat stainless steel |
1 |
|
|
6 |
278-0188
|
Water supply tube |
1 |
|
|
7 |
278-0189
|
Scrub head housing |
1 |
|
|
8 |
278-0190
|
Scrub head bumper |
1 |
|
|
9 |
278-0191
|
Spacer |
2 |
|
|
10 |
278-0192
|
3 lug drive hub |
1 |
|
|
11 |
999-9109
|
Screw M5-.8 x 12mm pan head phillips stainless steel |
2 |
|
|
12 |
999-9100
|
Washer M5 flat stainless steel |
2 |
|
|
13 |
278-0193
|
Brush plate clamp |
1 |
|
|
14 |
278-0194
|
Spring clip |
1 |
|
|
15 |
278-0195
|
Washer |
1 |
|
|
16 |
999-0674
|
Washer M8 split lock plain finish |
2 |
|
|
17 |
278-0196
|
Bolt 5/16-18 x 1 1/2 |
1 |
|
|
18 |
278-0197
|
Screw M6 x 35mm |
6 |
|
|
19 |
278-0198
|
Stud |
6 |
|
|
20a |
278-0199
|
19 inch pad driver |
1 |
(includes 18-23) |
|
20b |
278-0200
|
19 inch pad driver |
1 |
(optional) |
|
21a |
278-0201
|
Big mouth center lok |
1 |
|
|
21b |
278-0202
|
Center lok |
1 |
(optional) |
|
22 |
278-0203
|
Screw |
3 |
|
|
23 |
278-0204
|
Spacer |
3 |
|
|
24a |
278-0205
|
19 inch brush (black) |
1 |
(includes 18 and 19) |
|
24b |
278-0206
|
19 inch brush (blue) |
1 |
(optional) |
|
25 |
999-0562
|
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
|
26 |
999-1081
|
Washer M10 split lock stainless steel |
4 |
|
|
27 |
999-6713
|
Washer M10 x 30mm flat stainless steel |
4 |
|
|
28 |
278-0210
|
Pin |
1 |
|
|
29 |
278-0211
|
Screw M14 x 20mm |
1 |
|
|
30 |
278-0212
|
Warning decal |
1 |
|
|
31 |
278-0213
|
Nut |
1 |
|
|
32 |
278-0214
|
Spring |
1 |
|
|
33 |
278-0215
|
Knob |
1 |
|
|
34 |
278-1919
|
Bumper wheel |
1 |
|
|
35 |
278-0033
|
Spacer |
1 |
|
|
36 |
999-6695
|
Washer M8 fender stainless steel |
1 |
|
|
37 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
