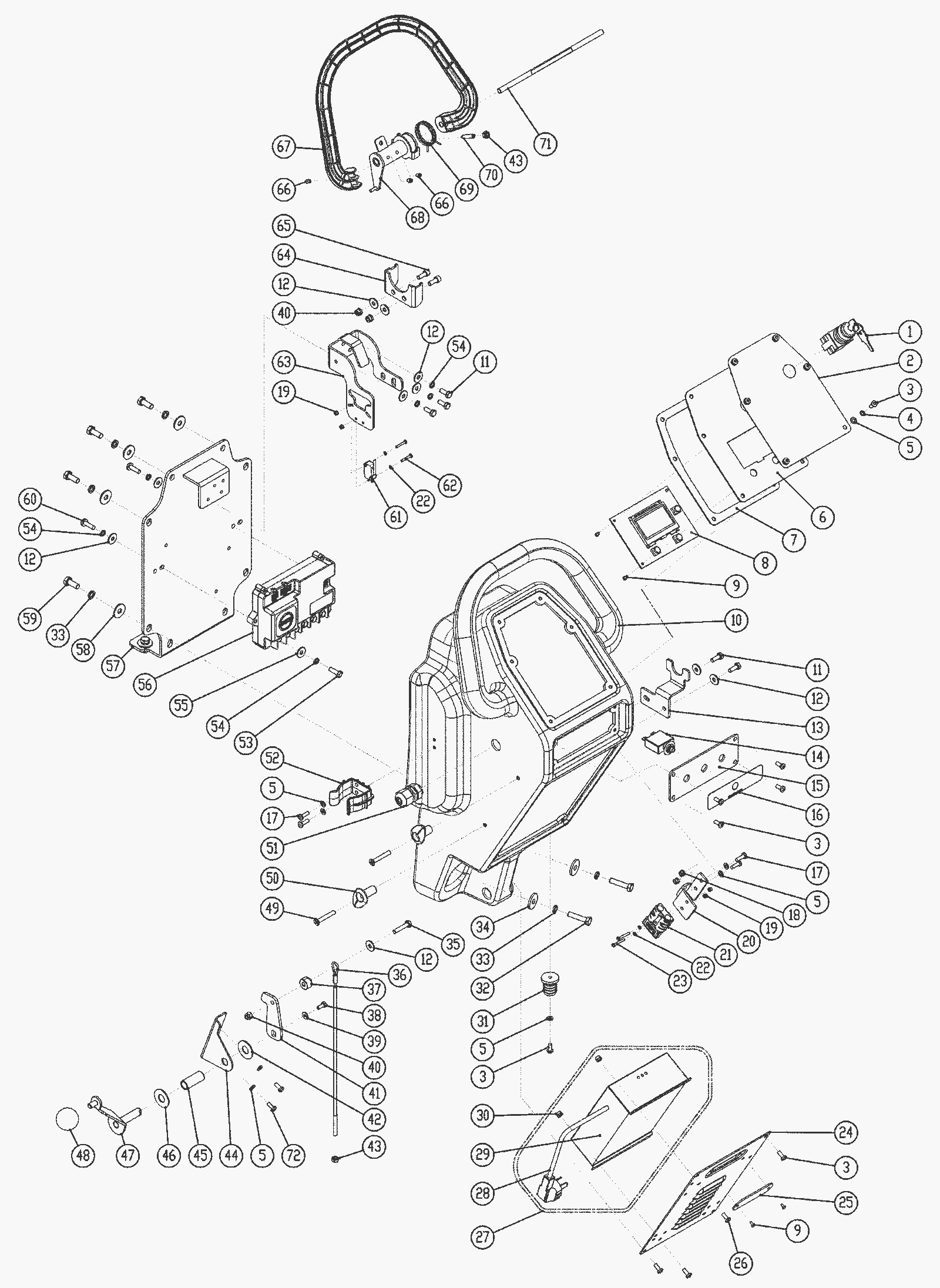

Control Console Assembly

#PartDescription ReqNotesAvailability
1a 278-0756 Key switch 1 (includes 1b)
1b 278-0318 Key (pkg of 2) 1
2 278-2050 Control panel 1
3 999-9109 Screw M5-.8 x 12mm pan head phillips stainless steel 17
4 999-9132 Washer M5 split lock stainless steel 6
5 999-9100 Washer M5 flat stainless steel 13
6 278-2051 Panel 1
7 278-0096 Gasket 1
8 278-2052 Control panel PCB 1
9 999-6715 Screw M3-.5 x 6mm pan head stainless steel 7
10 278-2053 Control housing 1
11 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 5
12 999-1803 Washer M6 flat fender stainless steel 10
13 278-0100 Squeegee storage bracket 1
14 278-0101 5amp circuit breaker 1
15 278-0102 Circuit breaker plate 1
16 278-0103 Circuit breaker decal 1
17 278-0104 Screw M5 x 15mm 4
18 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 2
19 999-1161 Nut M3-.5 hex nylock stainless steel 4
20 278-0088 Connector bracket 1
21 278-0411 Charger plug 1
22 278-0089 Washer M3 tooth 4
23 278-0090 Screw M3 x 25mm 2
24 278-0105 Battery plate 1
25 278-0106 Clear cover 1
26 999-1645 Screw M4-.7 x 12mm hex head stainless steel 4
27 278-0319 Onboard charger kit 1 (includes 28-30)
28 278-0107 Battery charger power cord kit (new style charger 813201-US) 1
29 278-0319 Onboard charger kit 1
30 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
31 278-0109 Connector 1
32 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel 2
33 999-0674 Washer M8 split lock plain finish 12
34 999-6695 Washer M8 fender stainless steel 2
35 278-0111 Bolt M6 x 30mm 1
36 278-0112 Squeegee lift cable 1
37 278-0113 Lifting rope spacer 1
38 999-1908 Screw M6-1 x 10mm hex head stainless steel 1
39 999-0876 Washer M6 split lock plain finish 1
40 999-0497 Nut M6-1 nylon insert lock stainless steel 3
41 278-0116 Baffle 1
42 278-0054 Washer 1
43 999-1308 Nut M6-1 hex stainless steel 2
44 278-0117 Bracket 1
45 278-0118 Sleeve 1
46 278-0119 Washer 1
47 278-0120 Squeegee lifting handle 1
48 278-0050 Ball knob 1
49 278-0121 Screw 2
50 278-0122 Power cord hook 2
51 278-0123 Strain relief 1
52 278-0124 Drain hose clamp 1
53 278-0125 Bolt 6
54 999-1117 Washer M6 split lock stainless steel 11
55 278-0127 Washer 6
56 278-0128 Main controller 1
57 278-0129 Control console rear plate 1
58 999-6695 Washer M8 fender stainless steel 10
59 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 10
60 278-0131 Screw 2
61 278-0134 Micro switch 1
62 278-0135 Screw M3 x 20mm 2
63 278-0136 Switch bracket 1
64 278-0137 Spring bracket 1
65 278-0138 Screw M6 x 16mm 2
66 278-0007 Set screw 4
67 278-2055 Bail lever (black) 1
68 278-0139 Actuator 1
69 278-0140 Spring 1
70 278-0141 Screw M6 x 30mm 1
71 278-0142 Shaft 1
72 278-0114 Bolt M5 x 12mm 2
