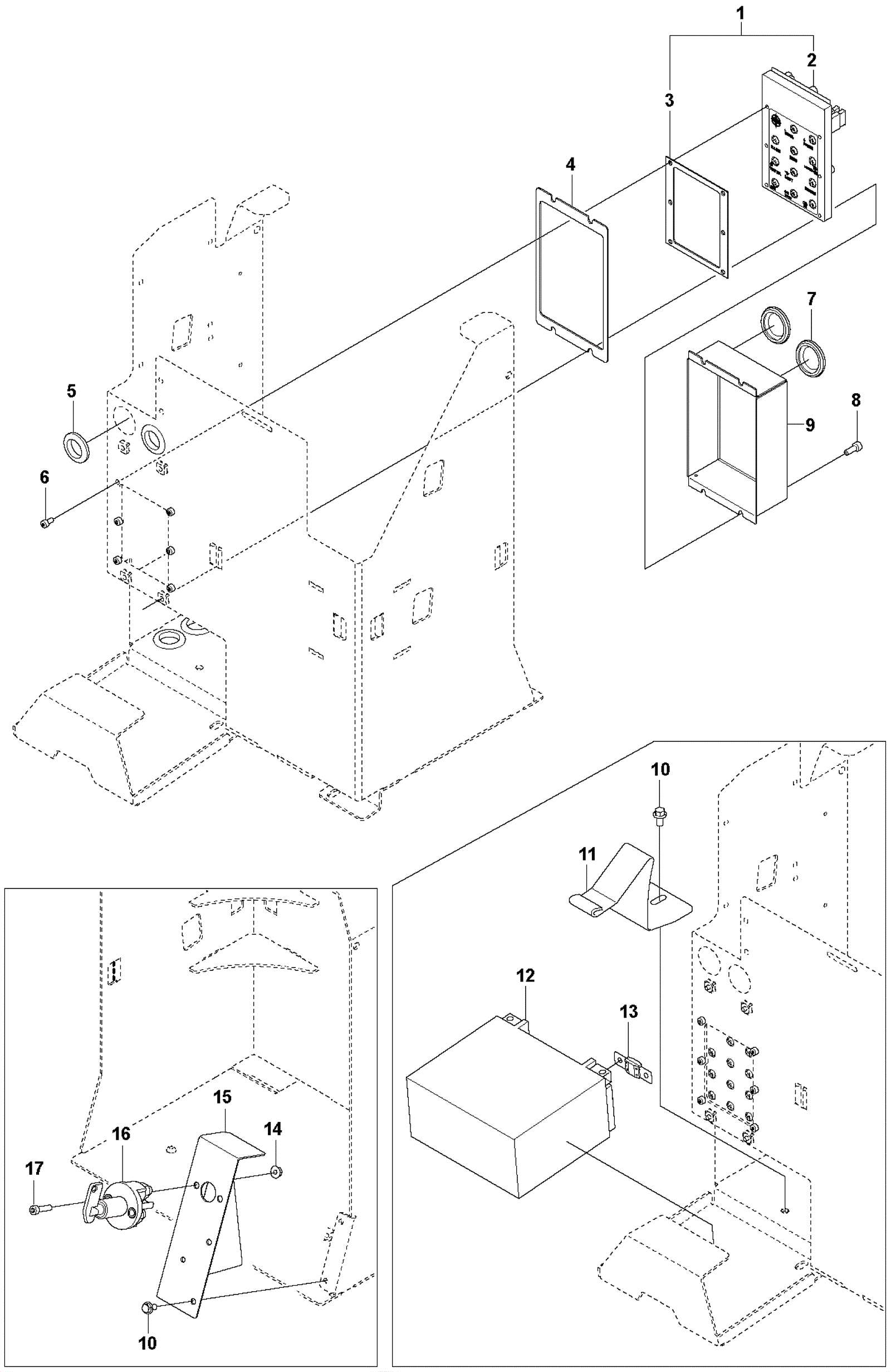

Duratiq XP6 Connection Panel and Main Switch Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1820 Electric module Call for price 1 (includes 2-3) (main circuit board) usually ships 10-26 days
2 156-1821 Control board Call for price 1 usually ships 10-26 days
3 156-1822 Gasket Call for price 1 (main circuit board) usually ships 10-26 days
4 156-1823 Sealing Call for price 1 (main board cover) usually ships 10-26 days
5 156-1757 Grommet Call for price 4 usually ships 10-26 days
6 156-1310 Screw M5 x 10 Call for price 6 usually ships 10-26 days
7 156-1824 Plug Call for price 2 usually ships 10-26 days
8 156-1825 Screw M6 x 16 Call for price 4 usually ships 10-26 days
9 156-1826 Box Call for price 1 usually ships 10-26 days
10 156-1827 Screw M6 x 12 Call for price 3 usually ships 10-26 days
11 156-1828 Bracket Call for price 1 (battery) usually ships 10-26 days
12 156-1829 12V 20Ah battery Call for price 1 usually ships 10-26 days
13 156-1830 100A fuse Call for price 1 usually ships 10-26 days
14 156-1831 Nut M6 hex Call for price 2 usually ships 10-26 days
15 156-1832 Bracket Call for price 1 (main switch) usually ships 10-26 days
16 156-1833 Switch Call for price 1 (battery master) usually ships 10-26 days
17 156-1834 Screw M6 x 25 Call for price 2 usually ships 10-26 days
