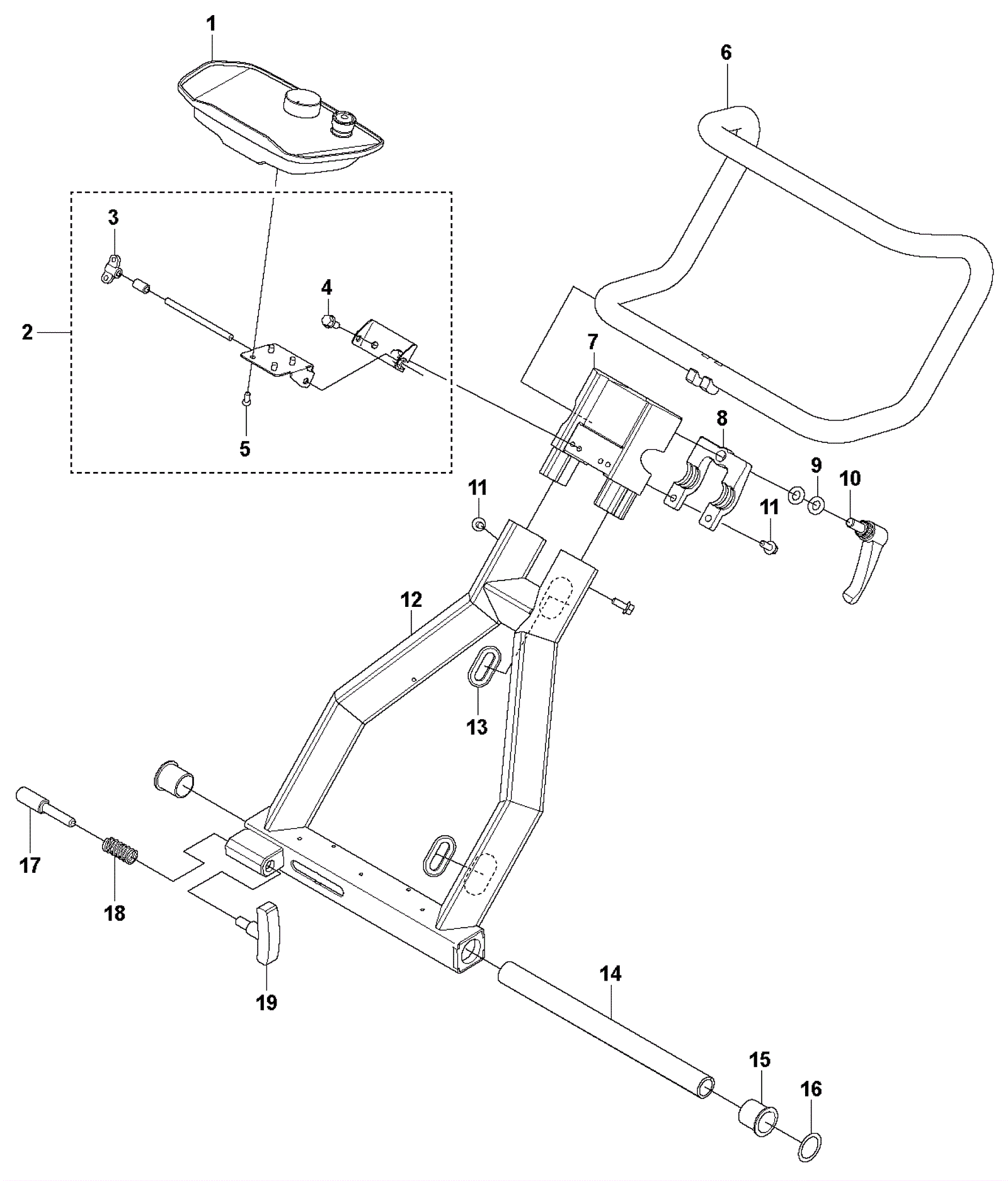

Duratiq XP6 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1748 Control panel complete Call for price 1 usually ships 10-26 days
2 156-1749 Control panel bracket assembly Call for price 1 (includes 3-5) usually ships 10-26 days
3 156-1151 Knob Call for price 1 usually ships 10-26 days
4 156-1146 Screw M8 x 20 Call for price 2 usually ships 10-26 days
5 156-1750 Screw M6 x 10 Call for price 4 usually ships 10-26 days
6 156-1751 Handlebar Call for price 1 usually ships 10-26 days
7 156-1752 Handle bracket Call for price 1 usually ships 10-26 days
8 156-1753 Handlebar clamp Call for price 1 usually ships 10-26 days
9 156-1754 Washer Call for price 2 usually ships 10-26 days
10 156-1755 Adjustable handle Call for price 1 usually ships 10-26 days
11 156-1146 Screw M8 x 20 Call for price 2 usually ships 10-26 days
12 156-1756 Handle weldment Call for price 1 usually ships 10-26 days
13 156-1757 Grommet Call for price 2 usually ships 10-26 days
14 156-1758 Handle shaft Call for price 1 usually ships 10-26 days
15 156-1759 Bearing Call for price 1 usually ships 10-26 days
16 156-1140 Spring washer Call for price 2 usually ships 10-26 days
17 156-1760 Pin Call for price 1 usually ships 10-26 days
18 156-1761 Spring Call for price 1 usually ships 10-26 days
19 156-1762 T-handle Call for price 1 usually ships 10-26 days
