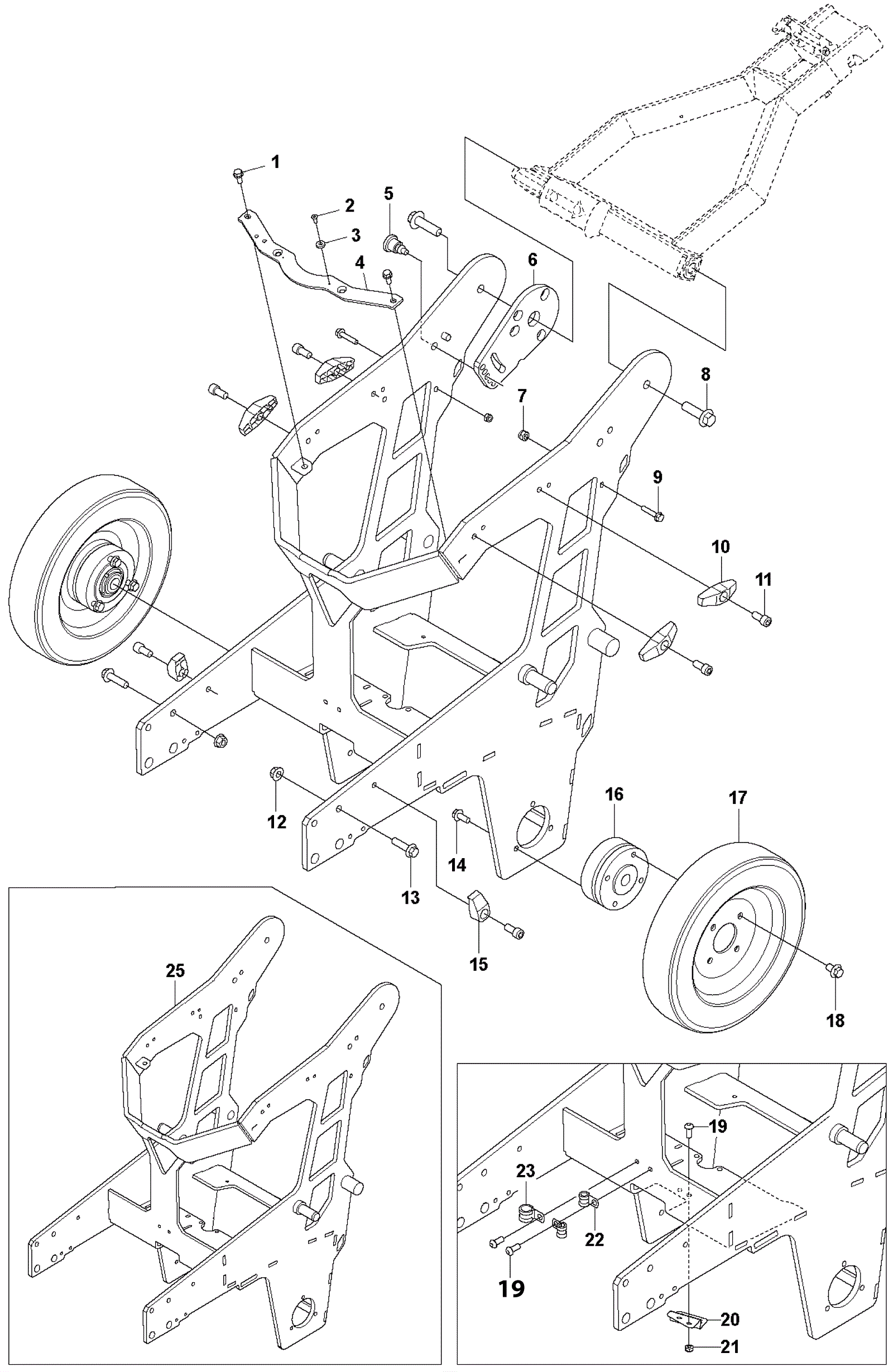

Duratiq XP6 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1146 Screw M8 x 20 Call for price 2 usually ships 10-26 days
2 156-1729 Screw M3 x 8.8 Call for price 2 usually ships 10-26 days
3 156-1730 Magnet Call for price 2 usually ships 10-26 days
4 156-1731 Locking plate cover Call for price 1 usually ships 10-26 days
5 156-1732 Piston Call for price 1 usually ships 10-26 days
6 156-1733 Handle adjustment plate Call for price 1 usually ships 10-26 days
7 156-1734 Nut flange with nylon ring Call for price 2 usually ships 10-26 days
8 156-1735 Screw M16 x 55 Call for price 2 usually ships 10-26 days
9 156-1736 Screw M6 x 40 Call for price 2 usually ships 10-26 days
10 156-1737 Counterweight Call for price 4 (fixing block) usually ships 10-26 days
11 156-1738 Screw M12 x 20 Call for price 6 usually ships 10-26 days
12 156-1665 Lock nut Call for price 4 usually ships 10-26 days
13 156-1739 Screw M12 x 45 Call for price 4 usually ships 10-26 days
14 156-1740 Screw M10 x 25 Call for price 6 usually ships 10-26 days
15 156-1741 Counterweight Call for price 2 (block front) usually ships 10-26 days
16 156-1742 Hub Call for price 2 usually ships 10-26 days
17 156-1743 Wheel Call for price 2 usually ships 10-26 days
18 N/A Not available Call for price 8 (screw M12 x 20) usually ships 3-26 days
19 156-1744 Screw M8 x 20 10.9 zinc Call for price 3 usually ships 10-26 days
20 156-1745 Bracket Call for price 1 usually ships 10-26 days
21 156-1636 Lock nut M8 Call for price 1 usually ships 10-26 days
22 156-1746 Clip Call for price 1 usually ships 10-26 days
23 156-1626 Clip Call for price 1 usually ships 10-26 days
25 156-1747 Chassis weldment Call for price 1 usually ships 10-26 days
