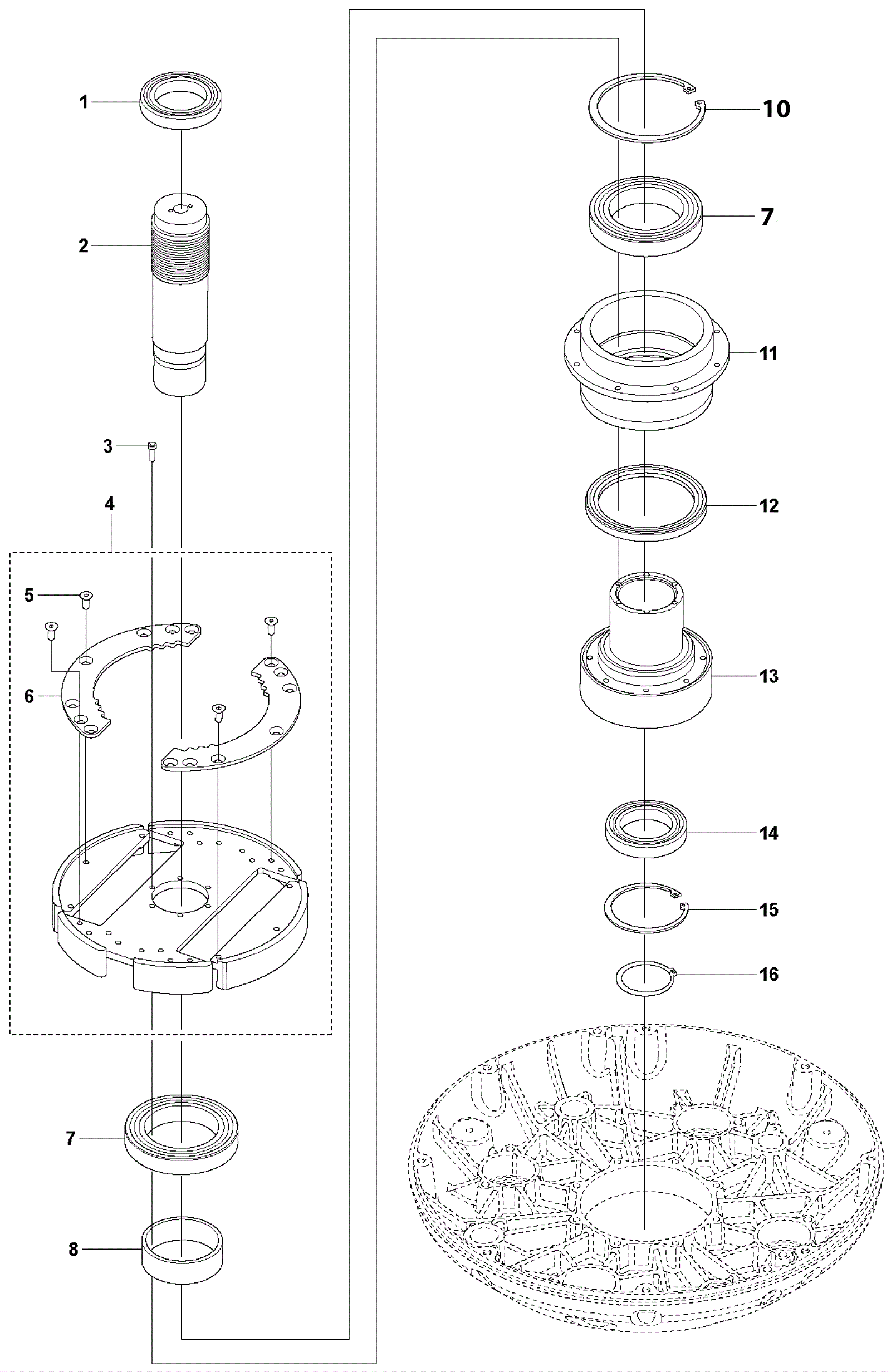

Duratiq XP6 Center Hub Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1725 Ball bearing Call for price 1 usually ships 8-10 days
2 156-1718 Center pulley Call for price 1 usually ships 8-10 days
3 156-1276 Screw M6 x 20 Call for price 6 usually ships 8-10 days
4 156-1719 Pulley Call for price 1 (includes 5-6) usually ships 8-10 days
5 156-1157 Screw M8 x 20 Call for price 14 usually ships 8-10 days
6 N/A Not available Call for price 2 (pulley lock plate) usually ships 3-26 days
7 156-1720 Ball bearing Call for price 2 usually ships 8-10 days
8 156-1721 Spacer Call for price 1 usually ships 8-10 days
10 156-1722 Circlip Call for price 1 (internal) usually ships 8-10 days
11 156-1723 Outer center hub Call for price 1 usually ships 8-10 days
12 N/A Not available Call for price 1 (shaft) usually ships 3-26 days
13 156-1724 Hub Call for price 1 (center) usually ships 8-10 days
14 156-1725 Ball bearing Call for price 1 usually ships 8-10 days
15 156-1279 Circlip Call for price 1 (internal) usually ships 8-10 days
16 156-1726 Circlip Call for price 1 (external) usually ships 8-10 days
