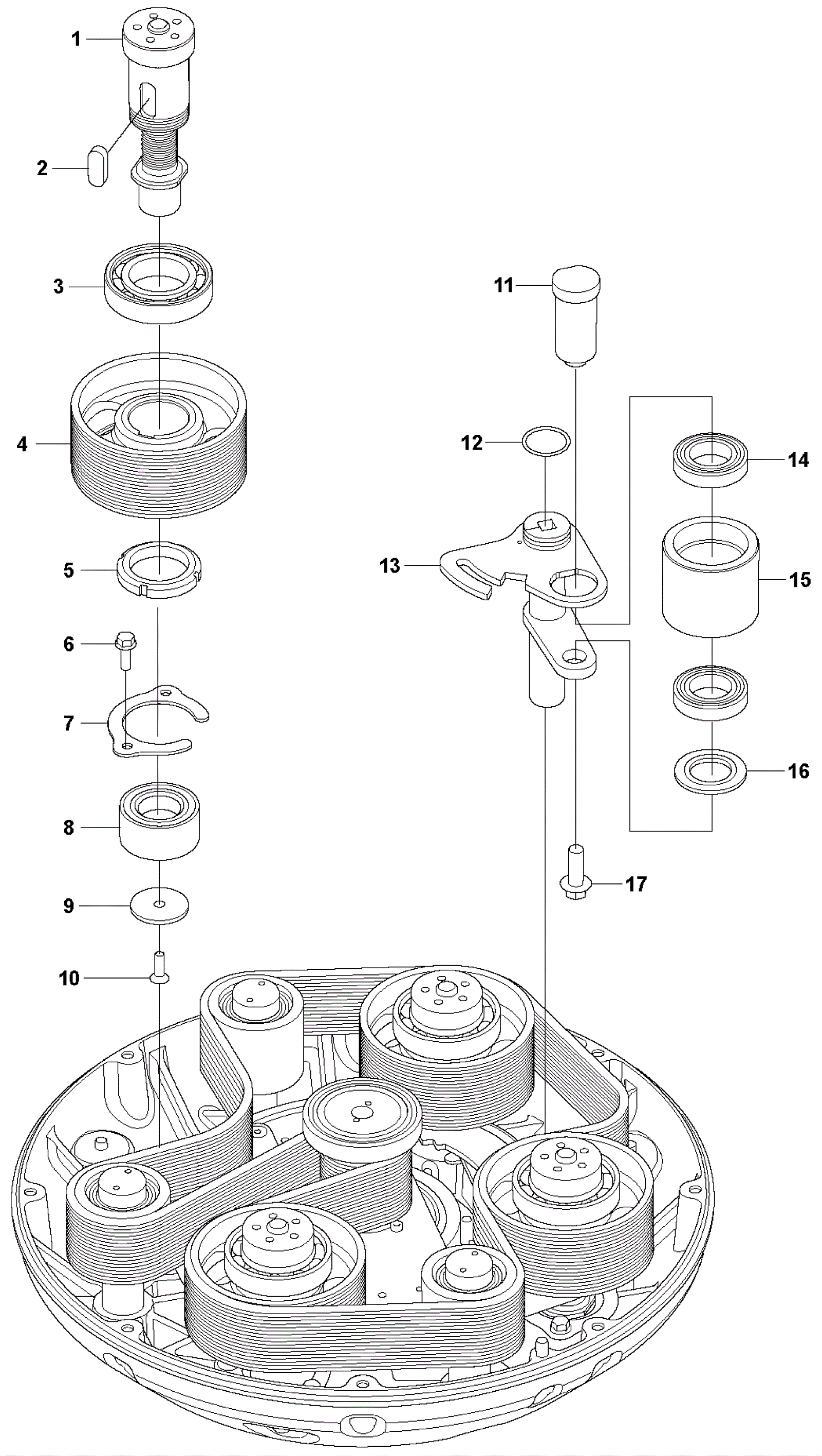

Duratiq XP6 Idler Pulley Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1702 Shaft Call for price 1 usually ships 10-26 days
2 156-1703 Key Call for price 1 usually ships 10-26 days
3 156-1704 Ball bearing Call for price 1 usually ships 10-26 days
4 156-1705 Pulley Call for price 1 usually ships 10-26 days
5 156-1706 Nut Call for price 1 usually ships 10-26 days
6 156-1707 Screw Call for price 2 usually ships 10-26 days
7 156-1708 Washer Call for price 1 usually ships 10-26 days
8 156-1709 Bearing Call for price 1 usually ships 10-26 days
9 156-1710 Washer Call for price 1 usually ships 10-26 days
10 156-1711 Screw Call for price 1 usually ships 10-26 days
11 156-1712 Axle Call for price 1 usually ships 10-26 days
12 156-1268 O-ring Call for price 1 usually ships 10-26 days
13 156-1713 Tensioner weldment Call for price 1 usually ships 10-26 days
14 156-1714 Ball bearing Call for price 2 usually ships 10-26 days
15 156-1715 Idler pulley Call for price 1 usually ships 10-26 days
16 156-1716 Spacer Call for price 1 usually ships 10-26 days
17 156-1130 Screw M12 x 35 Call for price 1 usually ships 10-26 days
