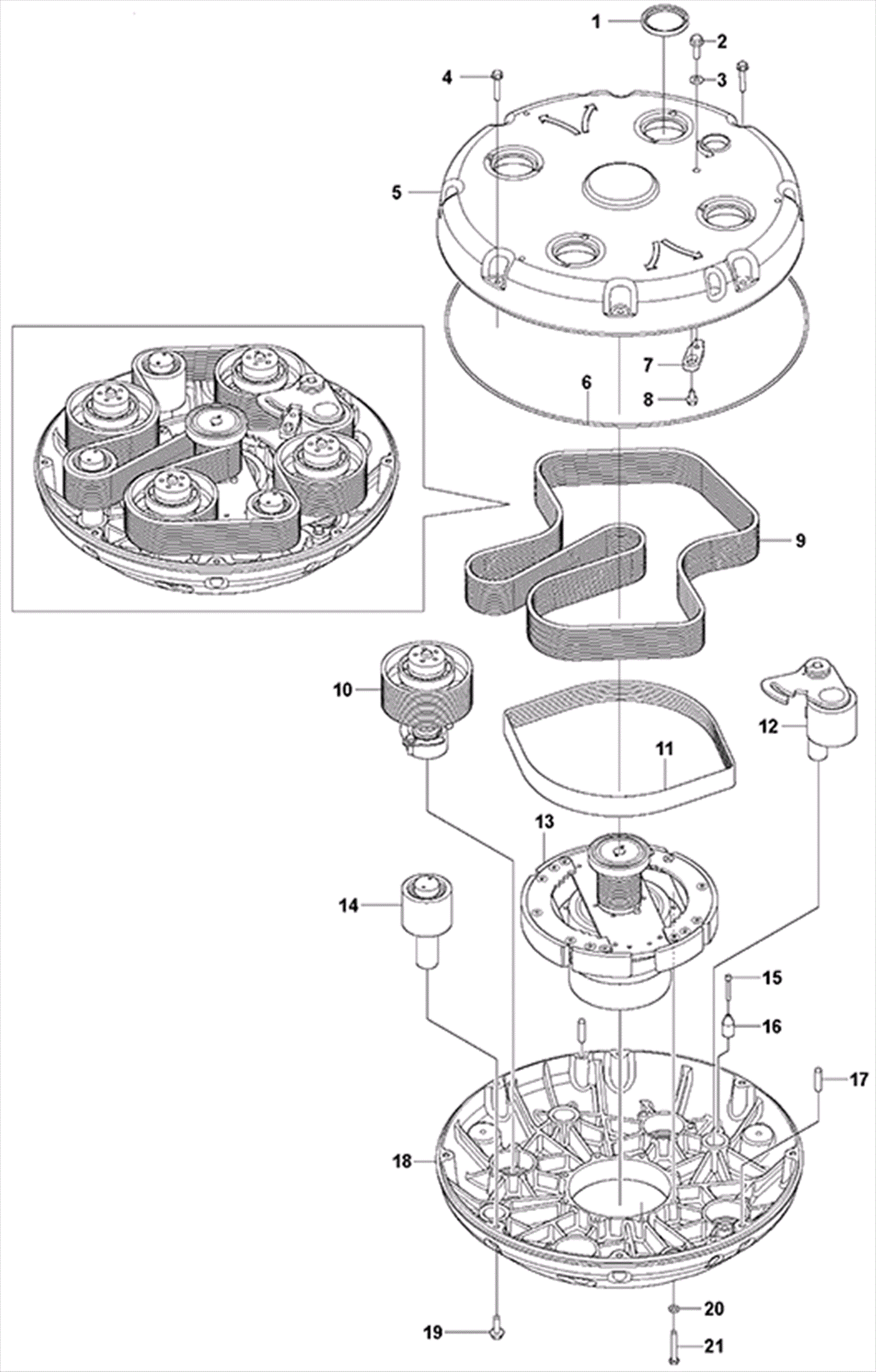

Duratiq XP6 Internal Grinding Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1684 Radial seal Call for price 4 usually ships 10-26 days
2 156-1685 Screw Call for price 1 usually ships 10-26 days
3 156-1686 Washer Call for price 1 usually ships 10-26 days
4 156-1687 Screw Call for price 8 usually ships 10-26 days
5 156-1688 Housing Call for price 1 usually ships 10-26 days
6 156-1689 O-ring Call for price 1 usually ships 10-26 days
7 156-1690 Tensioner locking plate Call for price 1 usually ships 10-26 days
8 156-1227 Screw M8 x 1 Call for price 1 usually ships 10-26 days
9 156-1691 Belt Call for price 1 (primary belt) usually ships 10-26 days
10 156-1692 Shaft assembly Call for price 4 usually ships 10-26 days
11 156-1693 Belt Call for price 1 (secondary belt) usually ships 10-26 days
12 156-1694 Belt tensioner Call for price 1 usually ships 10-26 days
13 156-1695 Hub assembly Call for price 1 usually ships 10-26 days
14 156-1696 Kit Call for price 3 usually ships 10-26 days
15 156-1697 Screw Call for price 1 usually ships 10-26 days
16 156-1698 Tensioner stop Call for price 1 usually ships 10-26 days
17 156-1262 Pin Call for price 2 usually ships 10-26 days
18 156-1699 Housing Call for price 1 usually ships 10-26 days
19 156-1700 Screw Call for price 3 usually ships 10-26 days
20 156-1701 Washer Call for price 8 usually ships 10-26 days
21 156-1672 Screw Call for price 8 usually ships 10-26 days
