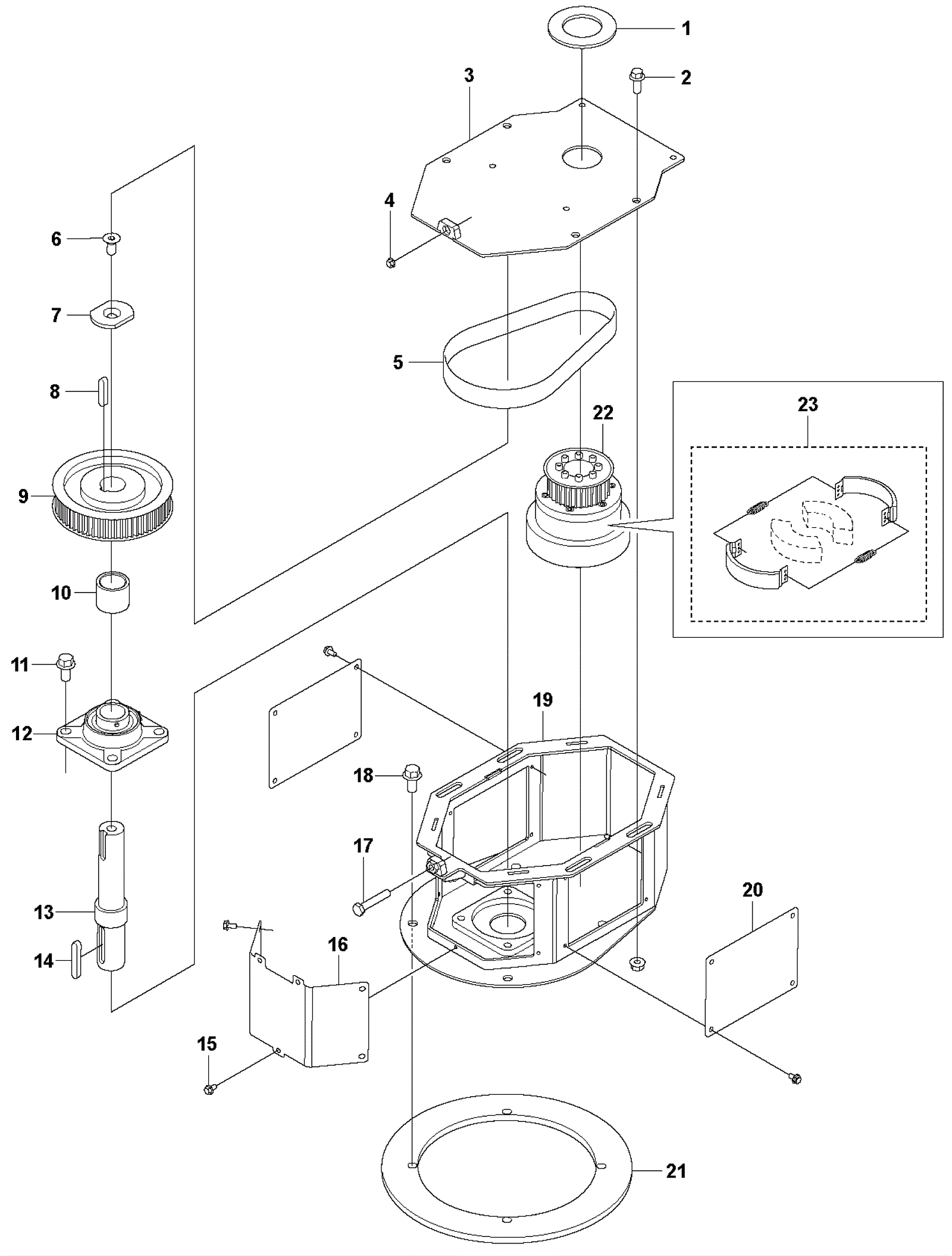

Duratiq XP6 Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1634 Sealing Call for price 1 usually ships 10-26 days
2 156-1638 Screw Call for price 4 usually ships 10-26 days
3 156-1635 Guide plate Call for price 1 usually ships 10-26 days
4 999-1887 Nut M10-1 1/4 hex $5.49 1 usually ships 1-5 days
5 156-1639 Timing belt Call for price 1 usually ships 10-26 days
6 156-1640 Screw Call for price 1 usually ships 10-26 days
7 156-1641 Plate Call for price 1 usually ships 10-26 days
8 156-1642 Parallel key Call for price 1 usually ships 10-26 days
9 156-1643 Sprocket Call for price 1 usually ships 10-26 days
10 156-1644 Spacer ring Call for price 1 usually ships 10-26 days
11 156-1645 Screw Call for price 4 usually ships 10-26 days
12 156-1646 Bearing unit Call for price 1 usually ships 10-26 days
13 156-1647 Drive shaft Call for price 1 usually ships 10-26 days
14 156-1648 Parallel key Call for price 1 usually ships 10-26 days
15 156-1649 Screw Call for price 15 usually ships 10-26 days
16 156-1650 Cover Call for price 1 usually ships 10-26 days
17 156-1651 Screw Call for price 1 usually ships 10-26 days
18 156-1130 Screw M12 x 35 Call for price 4 usually ships 10-26 days
19 156-1652 Gearbox weldment Call for price 1 usually ships 10-26 days
20 156-1653 Cover Call for price 2 usually ships 10-26 days
21 156-1654 Spacer Call for price 1 usually ships 10-26 days
22 156-1655 Centrifugal clutch Call for price 1 usually ships 10-26 days
23 156-1656 Clutch shoe Call for price 1 usually ships 10-26 days
