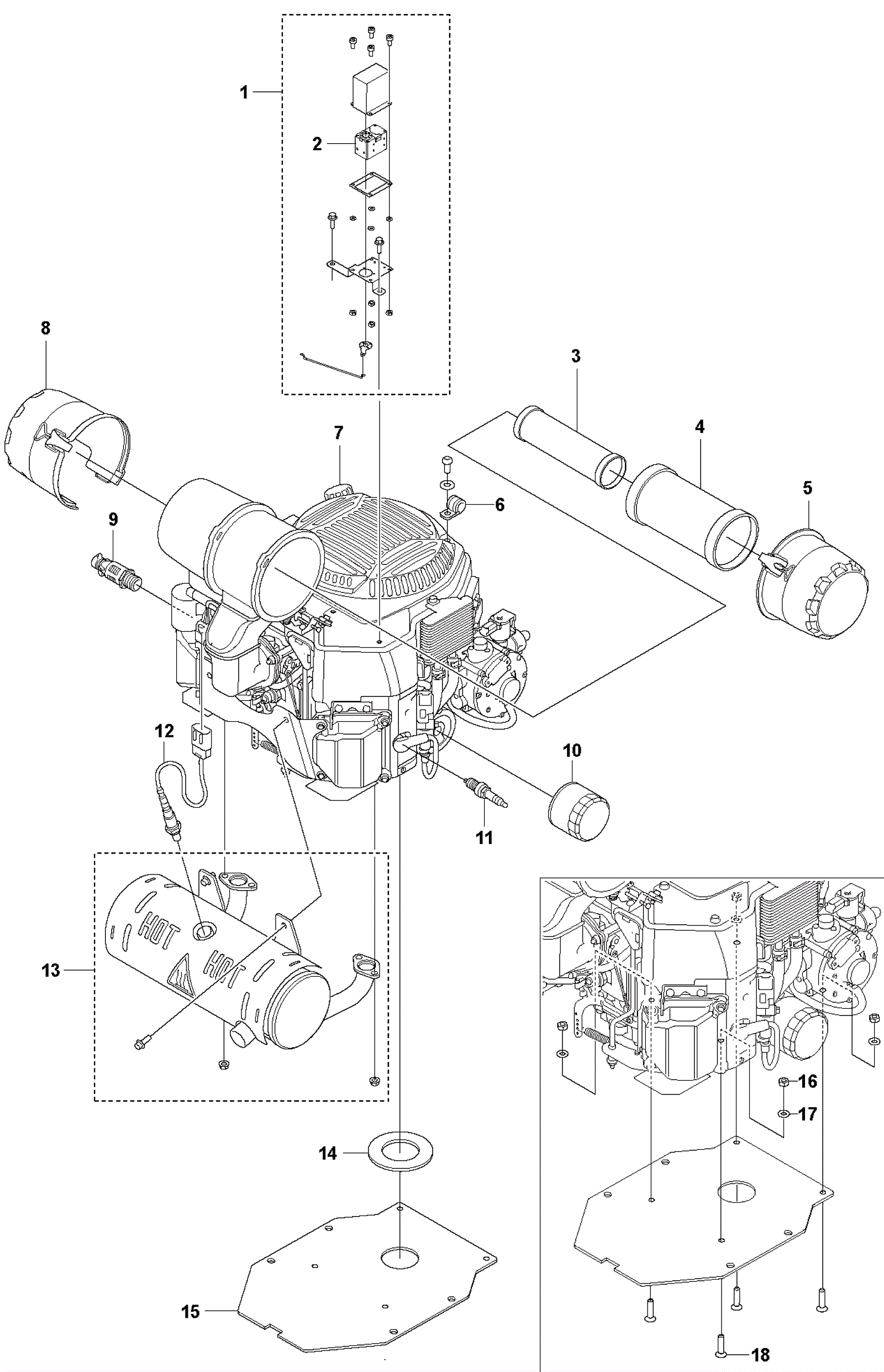

Duratiq XP6 Engine Assembly

#PartDescriptionPriceReqNotesAvailability
1 156-1621 Throttle assembly Call for price 1 (includes 2) usually ships 10-26 days
2 156-1622 Throttle motor Call for price 1 usually ships 10-26 days
3 156-1623 Air filter Call for price 1 (inner) usually ships 10-26 days
4 156-1624 Air filter Call for price 1 (outer) usually ships 10-26 days
5 156-1625 Cover Call for price 1 usually ships 10-26 days
6 156-1626 Clip Call for price 1 usually ships 10-26 days
7 156-1627 Oil plug Call for price 1 usually ships 10-26 days
8 156-1628 Cover Call for price 1 usually ships 10-26 days
9 156-1629 Oil plug Call for price 1 usually ships 10-26 days
10 156-1630 Oil filter Call for price 1 usually ships 10-26 days
11 156-1631 Spark plug Call for price 2 usually ships 10-26 days
12 156-1632 Sensor Call for price 1 usually ships 10-26 days
13 156-1633 Muffler Call for price 1 usually ships 10-26 days
14 156-1634 Sealing Call for price 1 usually ships 10-26 days
15 156-1635 Guide plate Call for price 1 usually ships 10-26 days
16 156-1636 Lock nut M8 Call for price 4 usually ships 10-26 days
17 156-1436 Washer Call for price 4 usually ships 10-26 days
18 156-1637 Screw Call for price 4 usually ships 10-26 days
