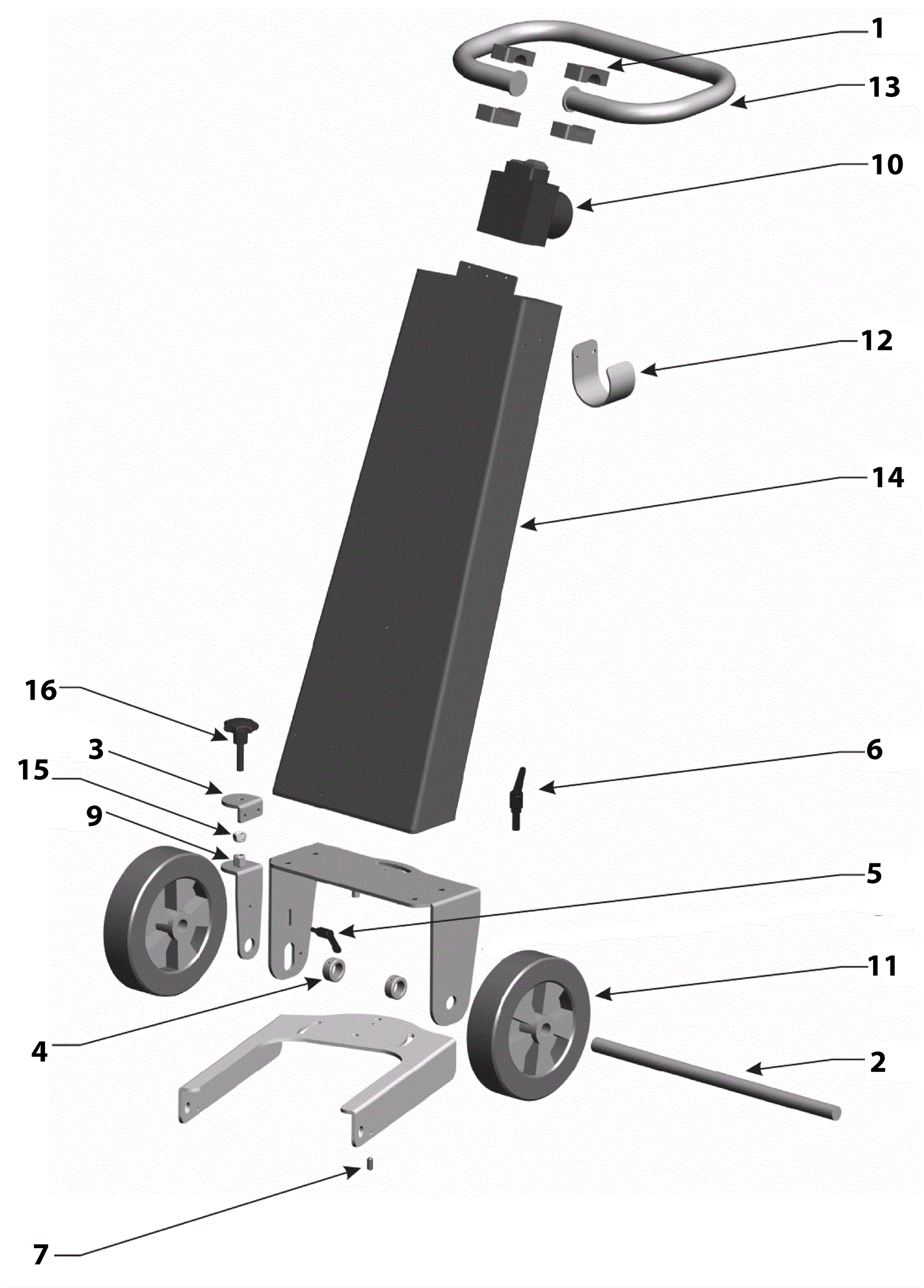

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
156-1350
|
Clamp |
2 |
|
|
2 |
156-1611
|
Wheel axle |
1 |
|
|
3 |
156-1612
|
Wheel adjustment support |
1 |
|
|
4 |
156-1613
|
Axle lock |
2 |
|
|
5 |
156-1614
|
Right wheel adjustment lock |
1 |
|
|
6 |
156-1615
|
Direction adjustment lock |
1 |
|
|
7 |
156-1616
|
Set screw |
1 |
|
|
9 |
156-1618
|
Adjustable wheel bracket |
1 |
|
|
10a |
156-1341
|
Switch box |
1 |
|
|
10b |
156-1340
|
Control device |
1 |
|
|
11 |
156-1349
|
Wheel |
2 |
|
|
12 |
156-1351
|
Hose holder |
1 |
|
|
13 |
156-1339
|
Handle |
1 |
|
|
14 |
156-1619
|
Chassis |
1 |
|
|
15 |
156-1620
|
Nut M6 lock |
1 |
|
|
16 |
156-1596
|
Stop bar axle bolt |
1 |
|
|
N/S |
156-1617
|
Axle bolt |
1 |
(axle bolt for stop bar) |
|
