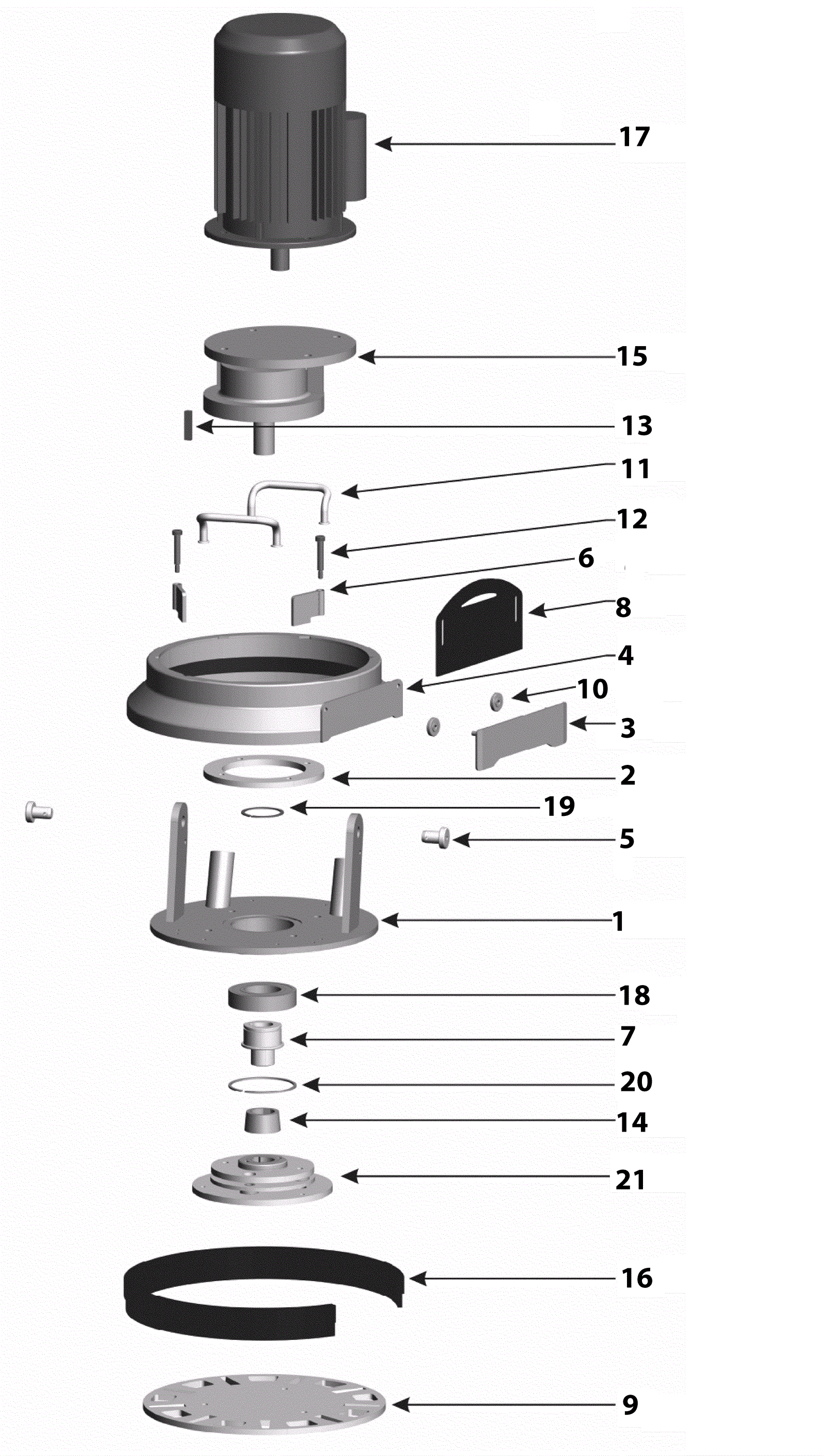

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
156-1585
|
Machine housing upper attachment |
1 |
|
|
2 |
156-1586
|
Spacer |
1 |
|
|
3 |
156-1587
|
Dustcover lock |
1 |
|
|
4 |
156-1588
|
Floating cover |
1 |
|
|
5 |
156-1589
|
Pin |
2 |
|
|
6 |
156-1590
|
Stop bar |
2 |
|
|
7 |
156-1591
|
Drive shaft |
1 |
|
|
8 |
156-1592
|
Adjustable dust cover rubber (black) |
1 |
|
|
9 |
156-1593
|
Disc |
1 |
|
|
10 |
156-1594
|
Nut M6 |
2 |
|
|
11 |
156-1595
|
Lift bracket |
2 |
|
|
12 |
156-1596
|
Stop bar axle bolt |
2 |
|
|
13 |
156-1597
|
Motor key |
1 |
|
|
14 |
156-1598
|
Bushing |
1 |
|
|
15 |
156-1599
|
Gear |
1 |
|
|
16 |
156-1600
|
Dust brush |
1 |
|
|
17 |
156-1601
|
230V motor |
1 |
|
|
18 |
156-1372
|
Bearing |
1 |
|
|
19 |
156-1602
|
Circlip |
1 |
|
|
20 |
156-1378
|
Circlip |
1 |
|
|
21 |
N/A
|
Not available |
1 |
|
|
