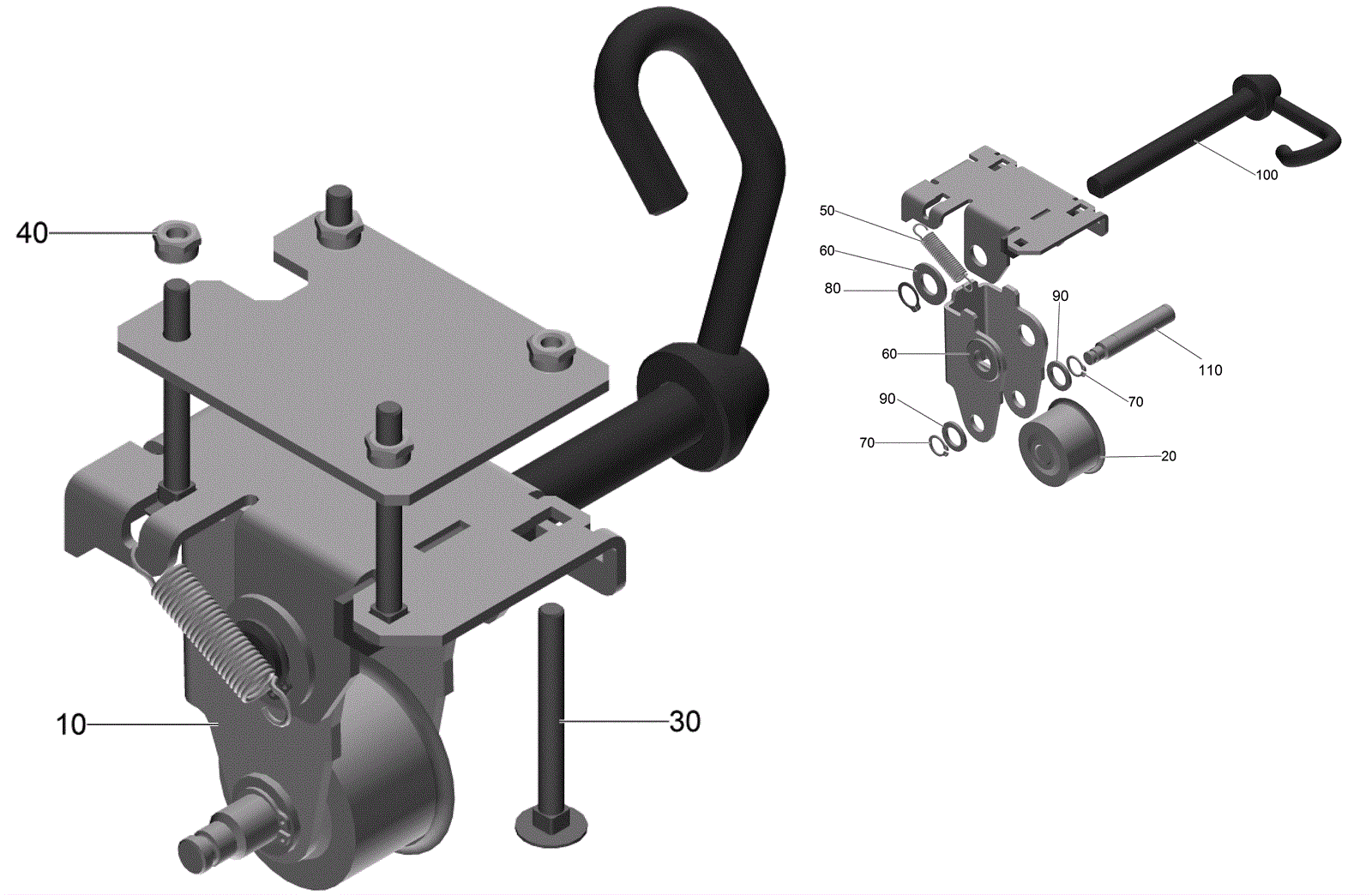

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
373-1747
|
Roller |
1 |
|
|
20 |
373-1695
|
Roller with ball bearing |
1 |
|
|
30 |
273-7542
|
Screw M6 x 60 saucer head |
4 |
|
|
40 |
273-6081
|
Nut M6-4 hex |
4 |
|
|
50 |
373-1750
|
Extension spring |
1 |
|
|
60 |
373-1698
|
Washer |
2 |
|
|
70 |
373-1700
|
Locking ring |
2 |
|
|
80 |
183-0259
|
Locking ring |
1 |
|
|
90 |
373-1701
|
Washer |
2 |
|
|
100 |
373-1751
|
Pedal |
1 |
|
|
110 |
373-1748
|
Roller shaft |
1 |
|
|
