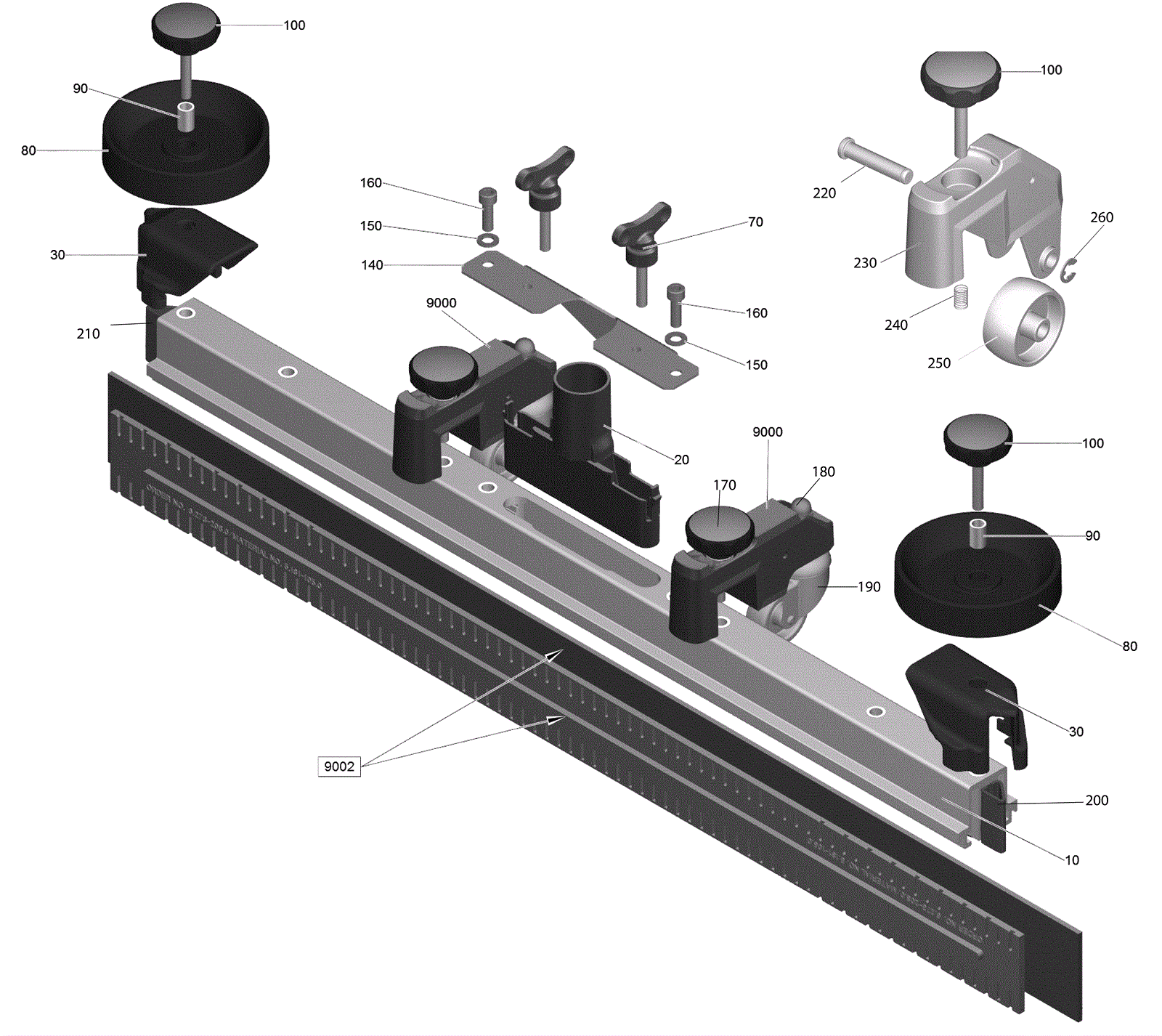

| # | Part | Description |
Req | Notes | Availability |
|---|
10 |
273-7774
|
33 inch straight polyurethane squeegee assembly (850mm) |
1 |
|
|
20 |
273-3479
|
Suction nipple |
1 |
|
|
30 |
273-3475
|
Left and right end pieces |
1 |
|
|
70 |
373-4987
|
Wing screw M8x30 |
2 |
|
|
80 |
273-3481
|
Guide wheel |
2 |
|
|
90 |
273-5924
|
Sleeve suction bar |
2 |
|
|
100 |
373-1737
|
Star grip |
2 |
|
|
140 |
273-3478
|
Suction bar support plate |
1 |
|
|
150 |
999-0150
|
Washer #8 medium split lock |
2 |
|
|
160 |
273-3477
|
Screw |
2 |
|
|
170 |
273-3484
|
Star grip |
2 |
|
|
180 |
373-1744
|
Nut |
2 |
|
|
190 |
373-1745
|
Castor |
2 |
|
|
200 |
373-1742
|
Left hand end piece |
1 |
|
|
210 |
373-1743
|
Right hand end piece |
1 |
|
|
220 |
373-1746
|
Bolt |
2 |
|
|
230 |
273-3645
|
Roller holder weight |
2 |
|
|
240 |
273-3490
|
Pressure spring |
2 |
|
|
250 |
273-3489
|
Wheel |
2 |
|
|
260 |
273-3488
|
Locking ring |
2 |
|
|
9000a |
373-1738
|
Support |
2 |
|
|
9000b |
373-1738
|
Support |
2 |
|
|
9000c |
373-1738
|
Support |
2 |
|
|
9002a |
173-7421
|
35 inch squeegee blade kit standard (pkg of 2) |
1 |
|
|
9002b |
173-7422
|
Squeegee blade 26 inch kit nonstreaking (pkg of 2) |
1 |
|
|
9002c |
173-7421
|
35 inch squeegee blade kit standard (pkg of 2) |
1 |
|
|
9002d |
173-7420
|
Squeegee blade 26 inch kit urethane (pkg of 2) |
1 |
|
|
