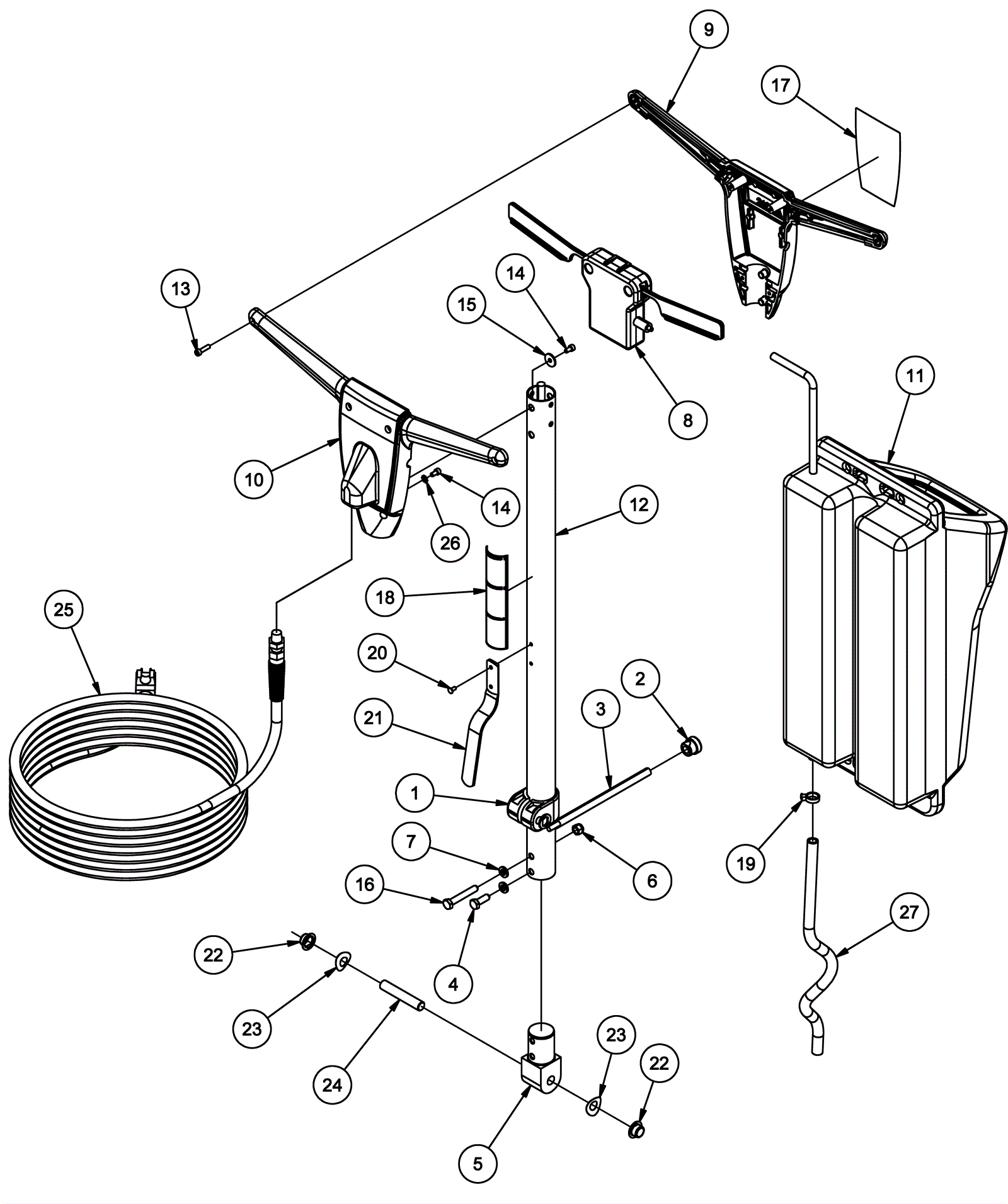

Handle Assembly

#PartDescription ReqNotesAvailability
1 170-1239 Clamp 1
3 154-3954 Cord interconnect 1
4 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated 1
5 154-3955 Handle tube tongue 1
6 154-3956 Nut 5/16 inch lock 1
7 154-3957 Washer 5/16 inch lock 2
8 270-0077 Switch assembly 1
9 270-0143 Front handle 1
10 270-0145 Rear handle 1
11 154-5179 2 1/2 gallon tank 1
12 154-3958 Handle tube 1
13 999-1275 Screw 10-32 x 3/4 hex head stainless steel 6
14 999-1276 Screw 10-32 x 3/8 hex head stainless steel 2
15 999-0998 Washer #10 flat stainless steel 1
16 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated 1
17 154-3959 PE250ST handle decal (OBSOLETE) 1
18 154-5170 Warning decal 1
19 154-2134 Cable tie 1
20 154-3960 5/32 inch rivet 2
21 373-3005 Hook cord 1
22 170-6076 Pal nut 2
23 272-8202 Bowed washer 2
24 373-3015 Shaft-handle pivot (OBSOLETE) 1
25 154-5173 50 foot power cord 1
26 154-3964 Washer #10 lock 1
27 154-1780 Vinyl tubing (sold by the inch) 18 in
