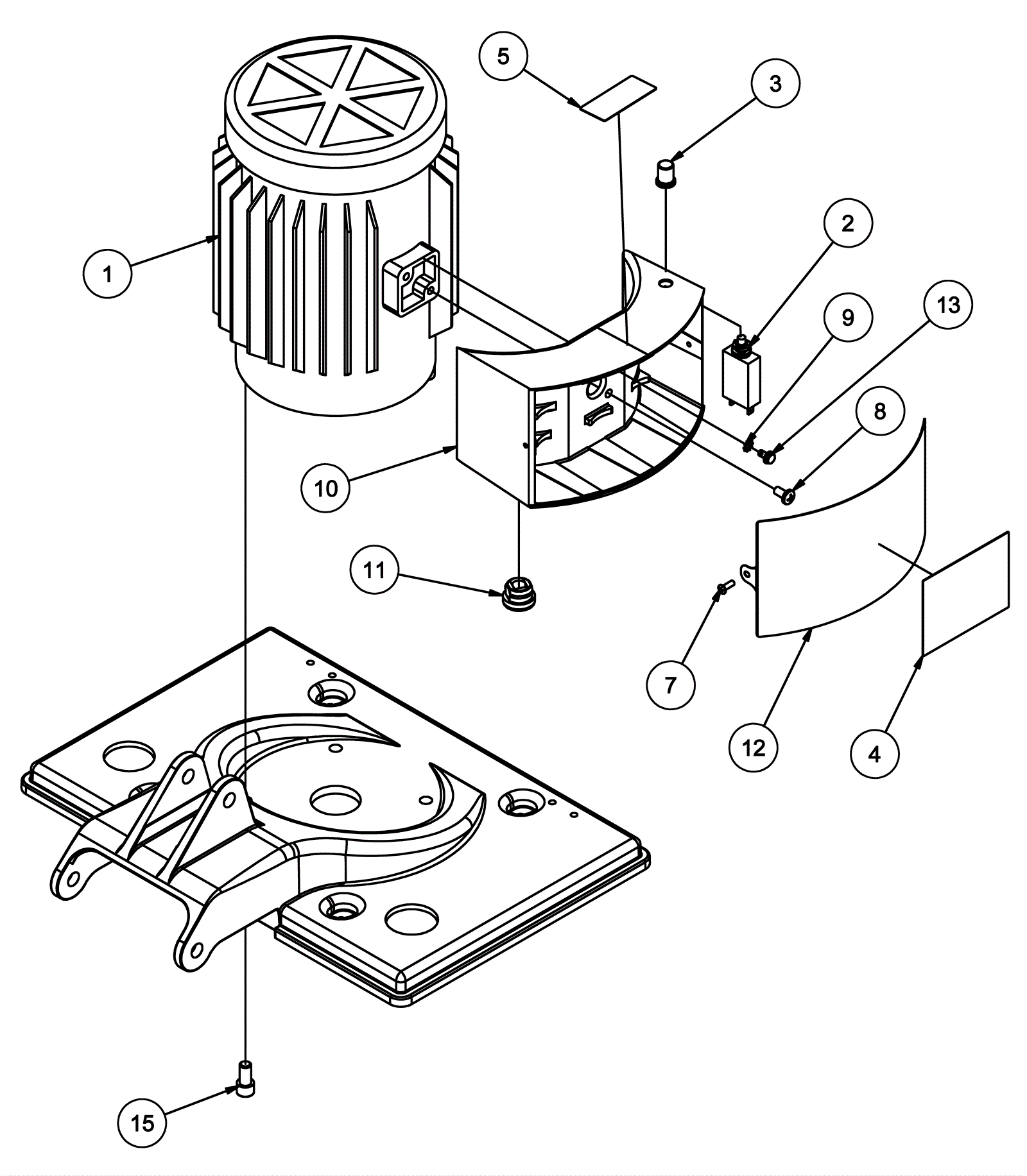

PE250ST Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-3936 115V Motor $1,299.42 1 (includes 1b-1e) usually ships 12-17 days
1b 154-3937 Starter switch $306.89 1 usually ships 12-17 days
1c 270-0151 Run capacitor $138.18 1 usually ships 12-17 days
1d 270-0150 Start capacitor $59.19 1 usually ships 12-17 days
1e 154-3940 Motor fan $103.77 1 usually ships 12-17 days
2a 172-9572 15amp circuit breaker $77.12 1 usually ships 17-28 days
2b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
3 172-0231 Reset button boot $49.63 1 usually ships 17-28 days
4 373-3016 Decal $12.31 1 usually ships 17-28 days
5 372-1644 Decal $12.31 1 usually ships 17-28 days
7 154-3946 Screw #8 x 1/2 inch $12.31 2 ships same day
8 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
9 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
10 154-3947 Start motor enclosure $197.42 1 usually ships 12-17 days
11 154-3948 7/8 inch strain relief bushing $8.06 1 usually ships 12-17 days
12 154-3949 Enclosure cover $45.85 1 usually ships 12-17 days
13 154-3951 Screw #10 x 3/8 inch $1.21 1 usually ships 12-17 days
N/S 170-5584 Connector $1.21 1 usually ships 1-5 days
N/S 170-5182 Terminal $4.22 1 usually ships 12-17 days
N/S 154-1657 Mounting bracket $31.49 1 usually ships 12-17 days
N/S 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
N/S 154-3950 Nut 6-32 elastic stop $7.40 2 usually ships 12-17 days
