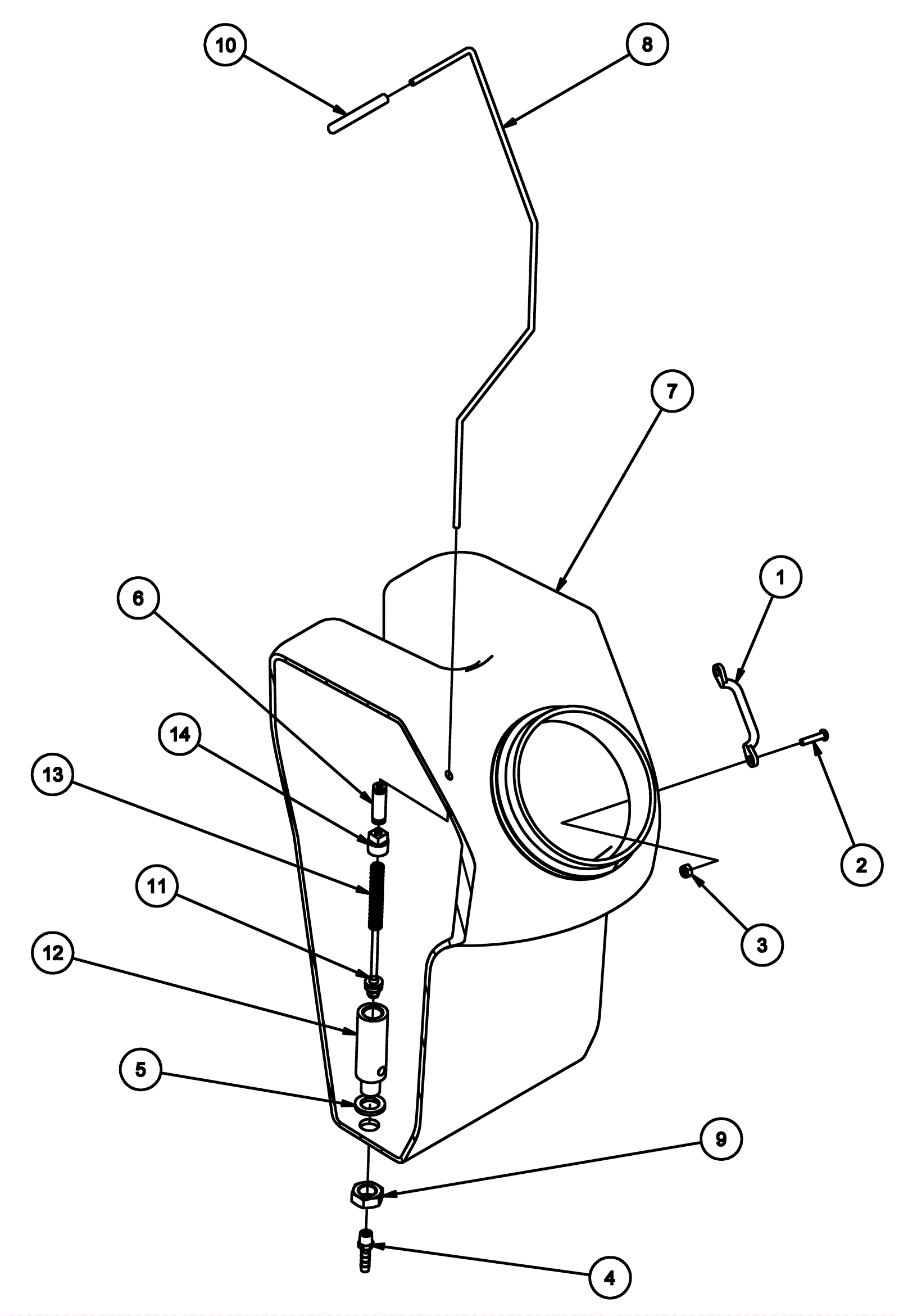

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
154-0328
|
Footman loop |
1 |
|
|
2 |
999-1547
|
Screw 10-24 x 7/8 button head socket stainless steel |
2 |
|
|
3 |
999-0356
|
Nut 10-24 lock stainless steel |
2 |
|
|
4 |
154-3874
|
Hosebarb fiitting 1/8 x 1/4 inch |
1 |
|
|
5 |
154-3875
|
5/8 inch gasket |
1 |
|
|
6 |
154-3876
|
3/16 inch union fitting |
1 |
|
|
7 |
154-3877
|
2 1/2 gallon water tank |
1 |
|
|
8 |
154-3878
|
Handle link |
1 |
|
|
9 |
999-0003
|
Nut 5/8-18 hex jam stainless steel |
1 |
|
|
10 |
154-3879
|
Grip 3/16 x 2 1/2 inch |
1 |
|
|
11 |
154-3880
|
Valve plug assembly |
1 |
|
|
12 |
154-3881
|
Valve housing |
1 |
|
|
13 |
154-3882
|
Valve spring |
1 |
|
|
14 |
154-3883
|
Anti slip tape (sold by the foot) |
1 ft |
|
|
N/S |
154-3884
|
Valve bonnet |
1 |
|
|
