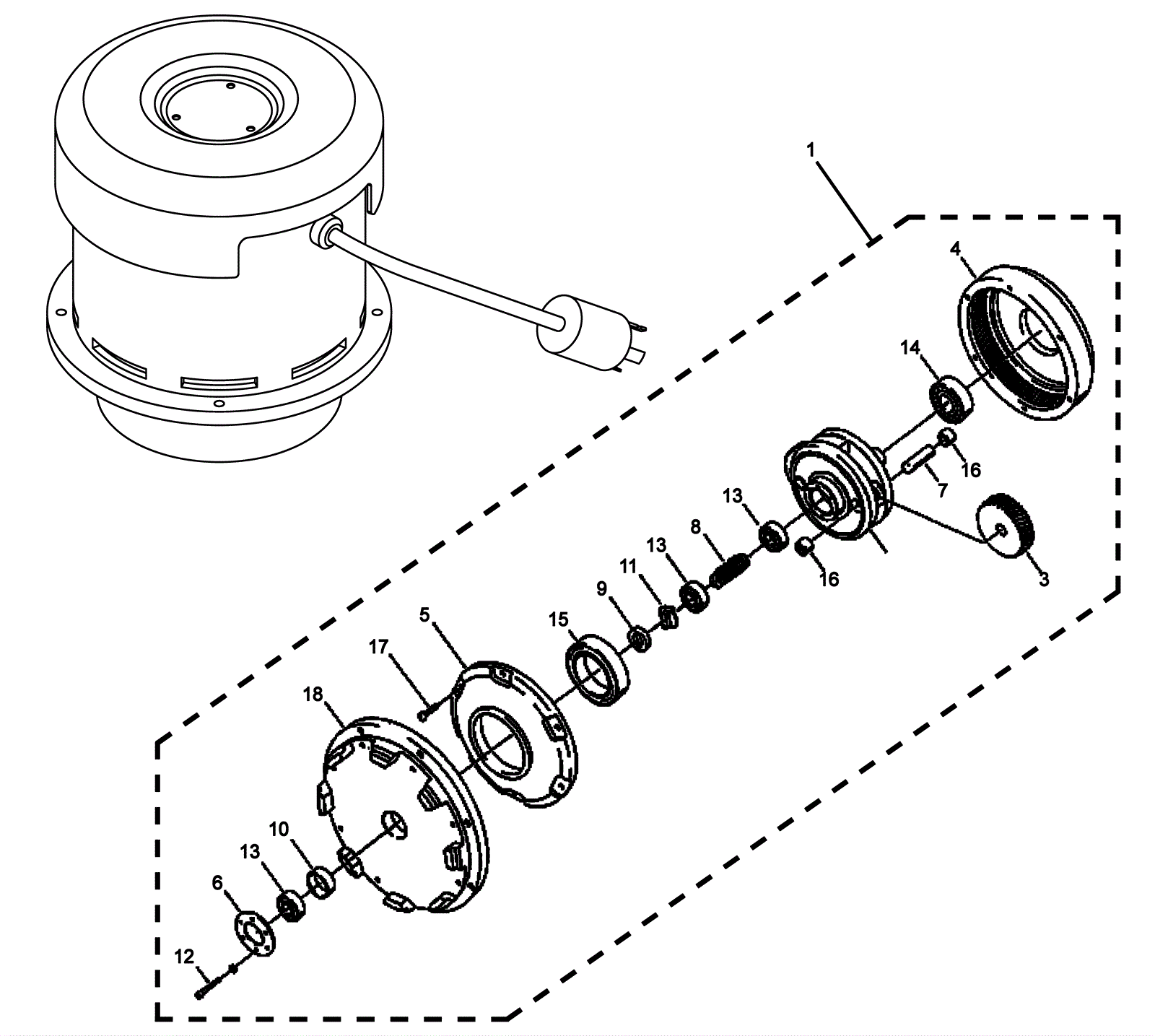

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
170-7828
|
Gearbox |
1 |
(includes 3-18) |
|
3 |
170-0349
|
Idle gear |
3 |
|
|
4 |
170-1225
|
Drive housing |
1 |
|
|
5 |
170-0341
|
Housing cover (OBSOLETE) |
1 |
|
|
6 |
170-0337
|
Retaining plate |
1 |
|
|
7 |
170-0347
|
Shaft |
1 |
|
|
8 |
170-0345
|
Pinon |
1 |
|
|
9 |
170-0343
|
Shaft retainer |
1 |
|
|
10 |
170-1560
|
Sleeved spacer |
1 |
|
|
11 |
170-0694
|
Odum coupling |
1 |
|
|
12 |
270-0705
|
Screw 10-32 x 1 |
6 |
|
|
13 |
170-0338
|
Ball bearing |
3 |
|
|
14 |
170-0320
|
Bottom bearing |
1 |
|
|
15 |
170-0342
|
Ball bearing |
1 |
|
|
16 |
170-0348
|
Needle bearing |
6 |
|
|
17 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
6 |
|
|
18 |
154-5199
|
Flange |
1 |
|
|
N/S |
154-5200
|
Carbon brush |
4 |
|
|
N/S |
154-5201
|
Motor rectifier |
1 |
|
|
N/S |
154-5202
|
Speed control |
1 |
|
|
N/S |
154-5203
|
Drip cover |
1 |
|
|
N/S |
154-5204
|
4 wire cord |
1 |
|
|
N/S |
154-5205
|
Top bearing |
1 |
|
|
N/S |
154-5206
|
Bottom bearing |
1 |
|
|
