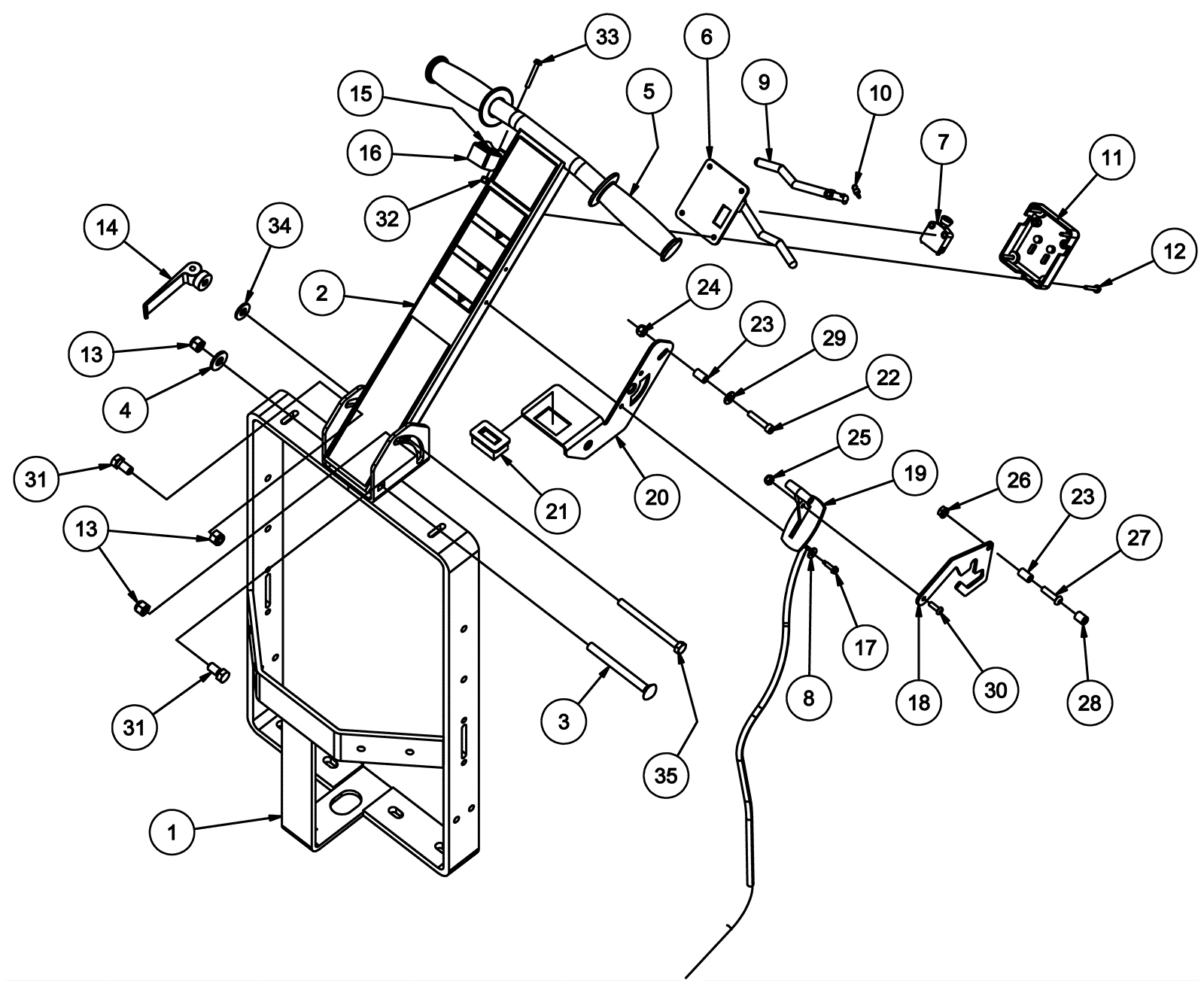

Hydra-Grinder 21 Propane Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-2327 Bottom handle weldment $382.43 1 usually ships 12-17 days
2 154-2328 Top handle weldment $163.68 1 usually ships 1-5 days
3 999-0242 Screw 3/8-16 x 4 carriage head grade 5 zinc $1.14 2 ships same day
4 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
5a 154-2329 Handle grip $14.09 2 ships same day
5b 991-8571 Handle grip $4.04 2 (NON-OEM) ships same day
6 154-0054 Switch box base $34.02 1 usually ships 1-5 days
7 154-2346 16amp micro switch assembly $54.26 1 usually ships 12-17 days
8 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
9 154-0055 Switch box lever $21.36 2 usually ships 12-17 days
10 154-0056 Switch box spring $10.08 2 ships same day
11 154-0060 Switch box cover $32.13 1 usually ships 1-5 days
12 999-0233 Screw 8 x 1 1/4 hex washer head slotted zinc plated $0.99 4 ships same day
13 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 3 ships same day
14 154-3833 Clamping adjustment lever $96.68 1 usually ships 12-17 days
15 154-3834 Rocker switch $18.23 1 usually ships 12-17 days
16 154-3697 Momentary kill switch bracket $19.43 1 usually ships 12-17 days
17 154-0612 Screw #8 x 3/4 drill kwik $2.29 2 usually ships 12-17 days
18 154-3835 Throttle lever $55.36 1 usually ships 12-17 days
19 154-3836 Throttle cable $67.27 1 usually ships 12-17 days
20 154-3837 Hour meter bracket $88.91 1 usually ships 12-17 days
21 154-1445 Hour meter $169.93 1 usually ships 12-17 days
22 154-0720 Screw 1/4-20 x 1 1/4 socket head with loctite $4.07 1 usually ships 12-17 days
23 154-0719 Steel bushing $21.74 2 usually ships 12-17 days
24 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
25 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
26 154-0802 Nut 1/4-20 keps $2.29 1 usually ships 12-17 days
27 999-0229 Screw 1/4-20 x 1 button head socket plain finish $0.99 1 ships same day
28 154-2143 Plug $2.29 1 usually ships 12-17 days
29 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
30 154-0800 Screw 10-24 x 5/8 button head stainless steel $3.12 1 usually ships 12-17 days
31 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized $1.14 2 ships same day
32 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
33 154-3838 Screw #8-32 x 1 1/4 inch flange $3.12 1 usually ships 12-17 days
34 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
35 154-3839 Bolt M8-1.25 x 100mm hex head $4.60 1 usually ships 12-17 days
