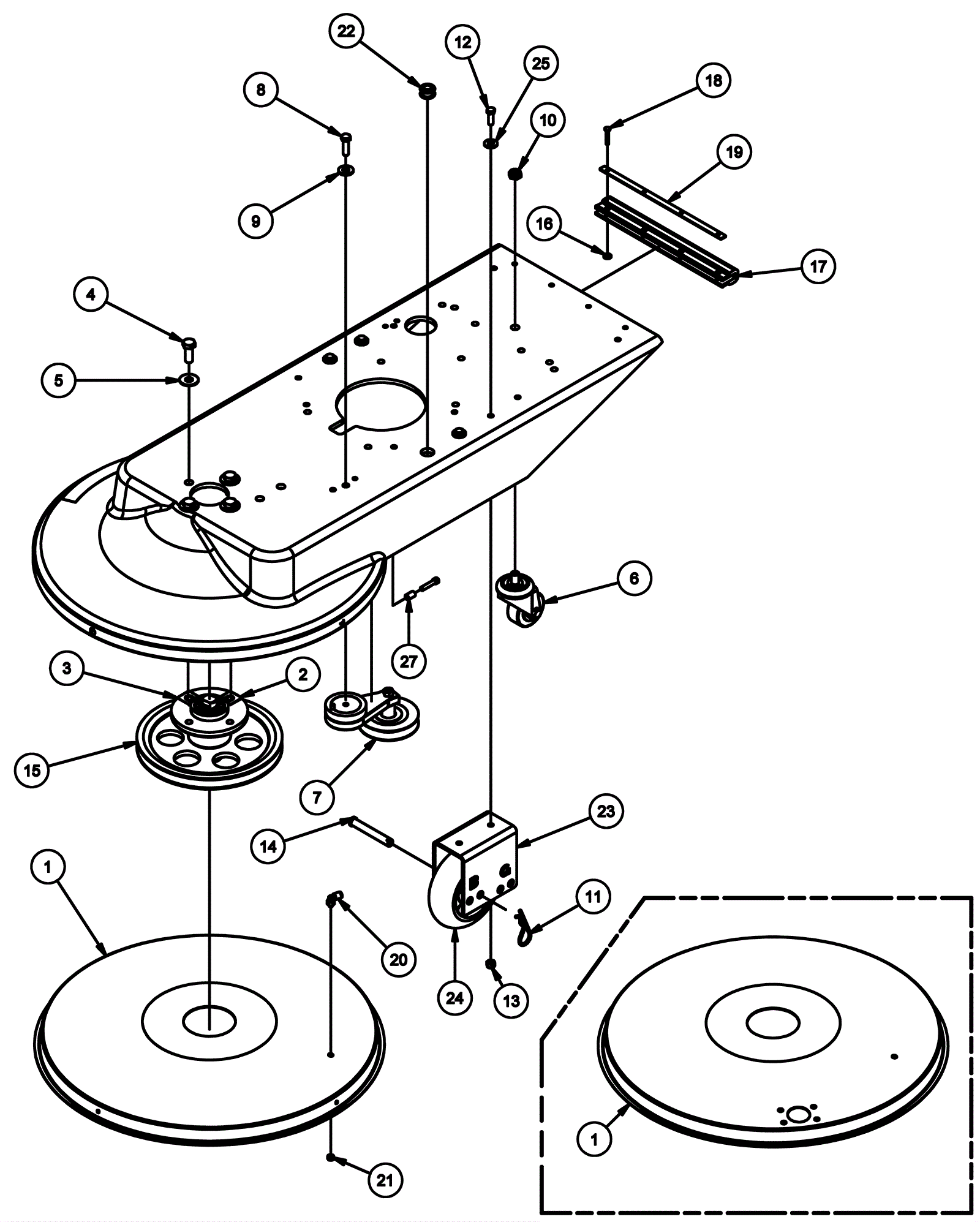

Hydra-Grinder 21 Propane Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1a 154-3827 Replacement liner $167.55 1 usually ships 4-15 days
1b 154-3828 Replacement liner HD $203.25 1 usually ships 4-15 days
2 154-2324 1/32 inch shim $1.03 1 ships same day
3 154-2325 1/16 inch shim $1.15 1 ships same day
4 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 4 ships same day
5 999-0033 Washer 7/16 SAE flat $0.99 4 ships same day
6 154-1055 Caster wheel $69.12 1 usually ships 4-15 days
7 154-0024 Idler belt tensioner with v-groove pulley $148.56 1 ships same day
8 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 1 ships same day
9 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
10 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
11 997-2515 Cotter pin $0.99 2 ships same day
12 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
13 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
14 154-0754 Clevis pin $12.88 2 usually ships 4-15 days
15 154-3830 9 3/4 inch spindle assembly $576.89 1 usually ships 4-15 days
16 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
17 154-2345 12 inch bumper $27.41 1 usually ships 1-5 days
18 154-2343 Pop rivet $2.89 4 usually ships 1-5 days
19 154-2342 Bumper strap $23.53 1 usually ships 1-5 days
20 154-3831 1/4 inch elbow fitting $33.02 1 usually ships 4-15 days
21 999-0239 Nut 10-32 k-lock zinc plated $0.99 1 ships same day
22 154-0199 Grommet $6.22 1 usually ships 1-5 days
23 154-3832 Wheel bracket (OBSOLETE) $65.45 2 usually ships 4-15 days
24 154-0748 6 inch wheel (gray) $96.29 2 ships same day
25 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
27 154-0720 Screw 1/4-20 x 1 1/4 socket head with loctite $2.89 1 usually ships 4-15 days
N/S 154-1053 5 inch wheel $31.79 1 ships same day
N/S 991-9255 WHEEL, 5 inch, PERFORMA, FLAT TREAD, GREY $32.32 1 (NON-OEM) usually ships 5-16 days
