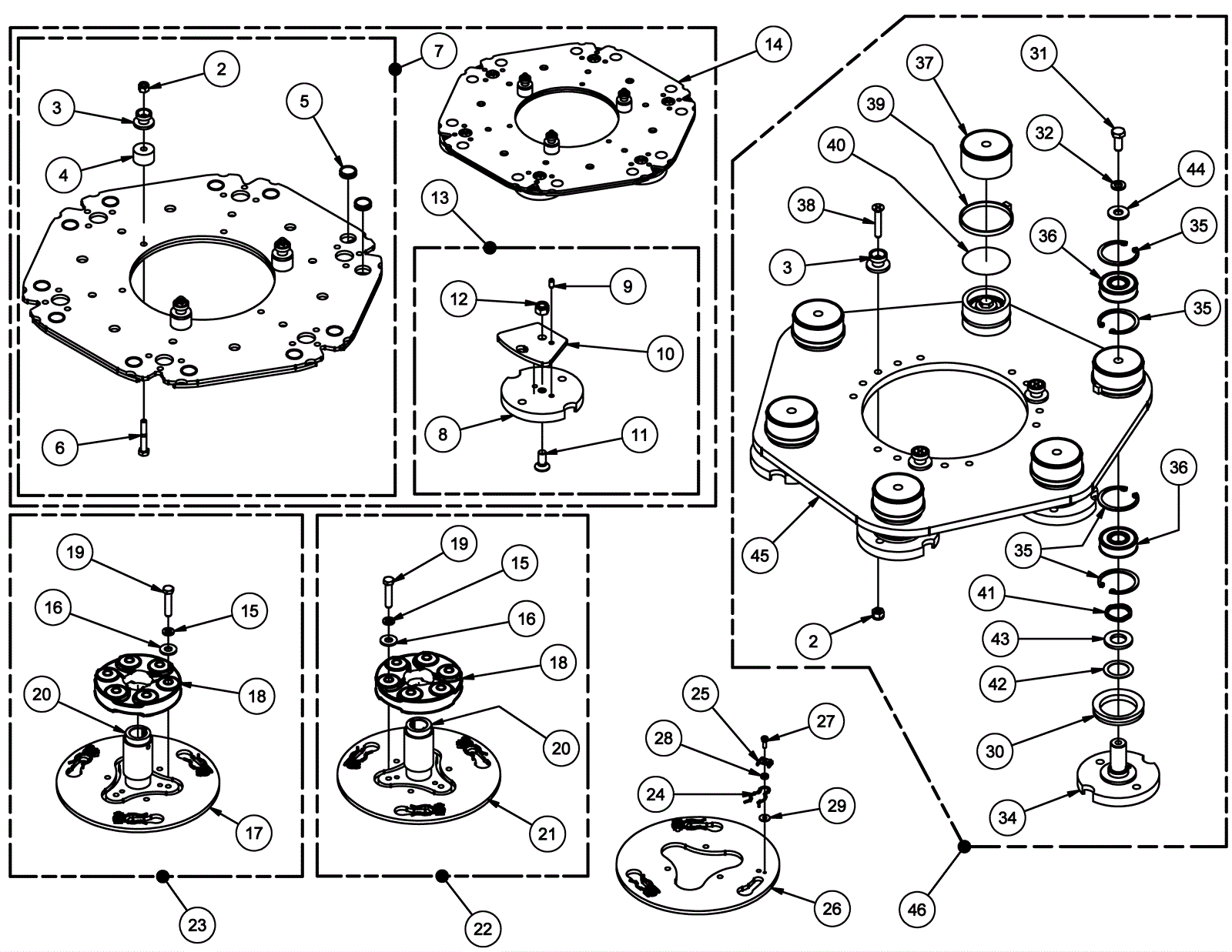

Hydra-Grinder 34 Propane Head Assembly

#PartDescriptionPriceReqNotesAvailability
2 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
3 154-1469 Lug $16.38 3 usually ships 4-15 days
4 154-1791 Nylon spacer $10.48 3 usually ships 4-15 days
5 154-2086 Magnet $21.79 12 ships same day
6 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel $0.99 3 ships same day
7 154-3801 17 1/2 inch driver plate assembly $728.28 2 (includes 2-6) usually ships 4-15 days
8 154-9025 Aluminum holder lip $111.69 1 usually ships 1-5 days
9 154-1471 Roll pin $1.67 1 usually ships 1-5 days
10 154-3805 Adapter plate holder $28.51 1 usually ships 4-15 days
11 154-3806 Screw M8 x 20mm $1.67 1 usually ships 4-15 days
12 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
13 154-3538 Holder $153.87 1 (includes 8-12) usually ships 4-15 days
14 154-3807 17 1/2 inch driver plate with holders $1,279.18 2 usually ships 4-15 days
15 154-0633 Lock washer $1.67 6 usually ships 1-5 days
16 999-0032 Washer 3/8 USS flat plain finish $2.42 6 ships same day
17 154-1461 Right side clutch plate assembly $82.56 1 usually ships 1-5 days
18 154-1215 Coupling $258.83 1 usually ships 4-15 days
19 154-1203 Screw 3/8 x 1 3/4 $2.27 6 usually ships 1-5 days
20 154-3808 Grinder drive hub $300.24 1 usually ships 4-15 days
21 154-1460 Left side clutch plate assembly $143.11 1 usually ships 1-5 days
22 154-3798 1 inch right hand drive hub assembly $741.37 1 (includes 15-16, 18-21) usually ships 4-15 days
23 154-3797 1 inch left hand drive hub assembly $741.37 1 (includes 15-20) usually ships 4-15 days
24 154-2025 Hitch pin $1.67 3 usually ships 4-15 days
25 154-2024 Hitch pin retainer $2.40 3 usually ships 4-15 days
26 154-3678 Head attachment plate $129.38 1 usually ships 1-5 days
27 999-1437 Screw 10-24 x 1/2 inch socket head stainless steel $0.99 3 ships same day
28 154-1217 Washer .2 nylon $1.67 3 usually ships 4-15 days
29 154-1218 Washer .21 nylon $1.67 3 usually ships 4-15 days
30 154-9021 V-ring seal $38.57 6 usually ships 4-15 days
31 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 6 ships same day
32 999-0553 Washer 5/16 medium split lock stainless steel $0.99 6 ships same day
34 154-1464 Flex disc assembly $129.26 6 usually ships 1-5 days
35 154-1463 Internal ring $2.90 24 usually ships 1-5 days
36 154-9020 Sealed bearing $10.75 12 usually ships 1-5 days
37 154-9017 2 inch vinyl cap $8.38 6 usually ships 1-5 days
38 154-1470 Screw 1/4-20 x 1 1/2 phillips $1.74 3 usually ships 1-5 days
39 154-1468 Nylon tie $1.99 6 usually ships 1-5 days
40 154-1466 Foil tape 2 inch x 50 yard (OBSOLETE) Call for price 6 usually ships 1-5 days
41 154-9023 Wave spring $10.97 6 usually ships 4-15 days
42 154-1465 Washer .8 flat $5.79 6 usually ships 1-5 days
43 999-0288 Washer M16 flat zinc plated $0.99 6 ships same day
44 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
45 154-3811 17 inch free spin driver assembly $1,663.03 1 usually ships 4-15 days
46 154-3811 17 inch free spin driver assembly $1,663.03 1 (includes 2-3, 30-32, 34-45) usually ships 4-15 days
N/S 154-3804 17 1/2 inch driver plate $363.18 1 usually ships 4-15 days
N/S 154-9021 V-ring seal $38.57 6 usually ships 4-15 days
