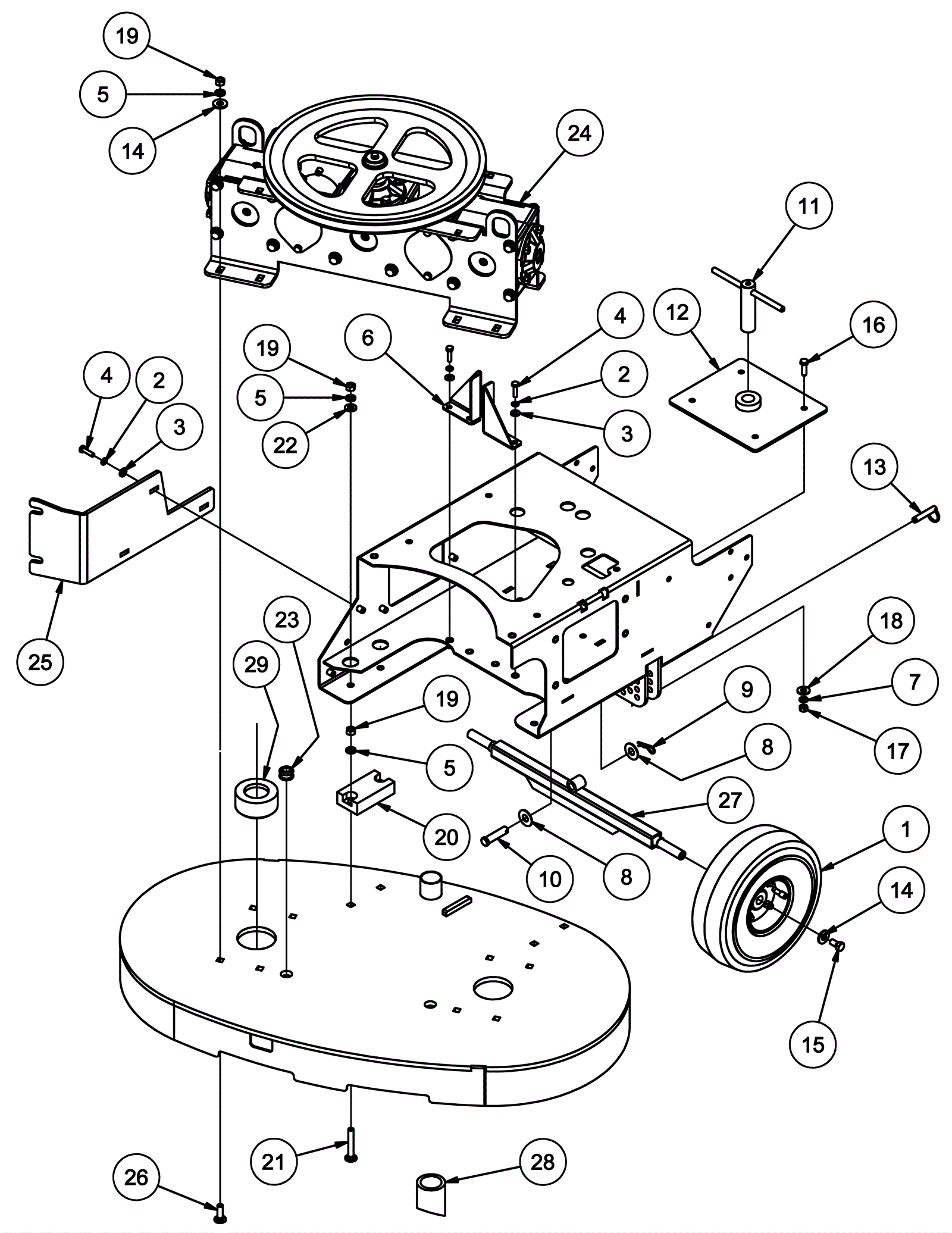

Hydra-Grinder 34 Propane Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-1438 10 inch wheel (gray) $212.10 2 usually ships 4-15 days
2 154-0600 Lock washer $1.67 7 usually ships 4-15 days
3 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
4 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 7 ships same day
5 154-0633 Lock washer $1.67 16 usually ships 1-5 days
6 154-1439 Base plate $68.16 2 usually ships 1-5 days
7 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
8 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
9 154-0699 Presto pin $1.67 1 usually ships 1-5 days
10 154-1441 Clevis pin $26.62 1 usually ships 4-15 days
11 154-1440 Axle adjustment assembly $116.35 1 usually ships 1-5 days
12 154-2082 Plate $142.83 1 usually ships 1-5 days
13 154-2033 Pin $16.21 2 usually ships 1-5 days
14 999-0032 Washer 3/8 USS flat plain finish $2.42 10 ships same day
15 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized $1.14 2 ships same day
16 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
17 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
18 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
19 999-0959 Nut 3/8-16 hex $1.42 16 ships same day
20 154-3771 Deck spacer block (OBSOLETE) Call for price 2 usually ships 4-15 days
21 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel $6.57 4 ships same day
22 999-1254 Washer 3/8 SAE flat zinc plated $0.99 4 ships same day
23 154-0199 Grommet $6.22 2 usually ships 1-5 days
24 154-3772 34 inch gearbox assembly $5,444.00 1 usually ships 4-15 days
25 154-3773 Deck brace bracket (OBSOLETE) Call for price 1 usually ships 4-15 days
26 999-0232 Screw 3/8-16 x 1 1/4 carriage head grade 5 zinc $0.99 8 ships same day
27 154-3774 Axle $244.21 1 usually ships 4-15 days
28 154-3775 Vacuum tube $22.55 1 usually ships 4-15 days
29 154-3776 Gearbox support spacer $103.65 2 usually ships 4-15 days
