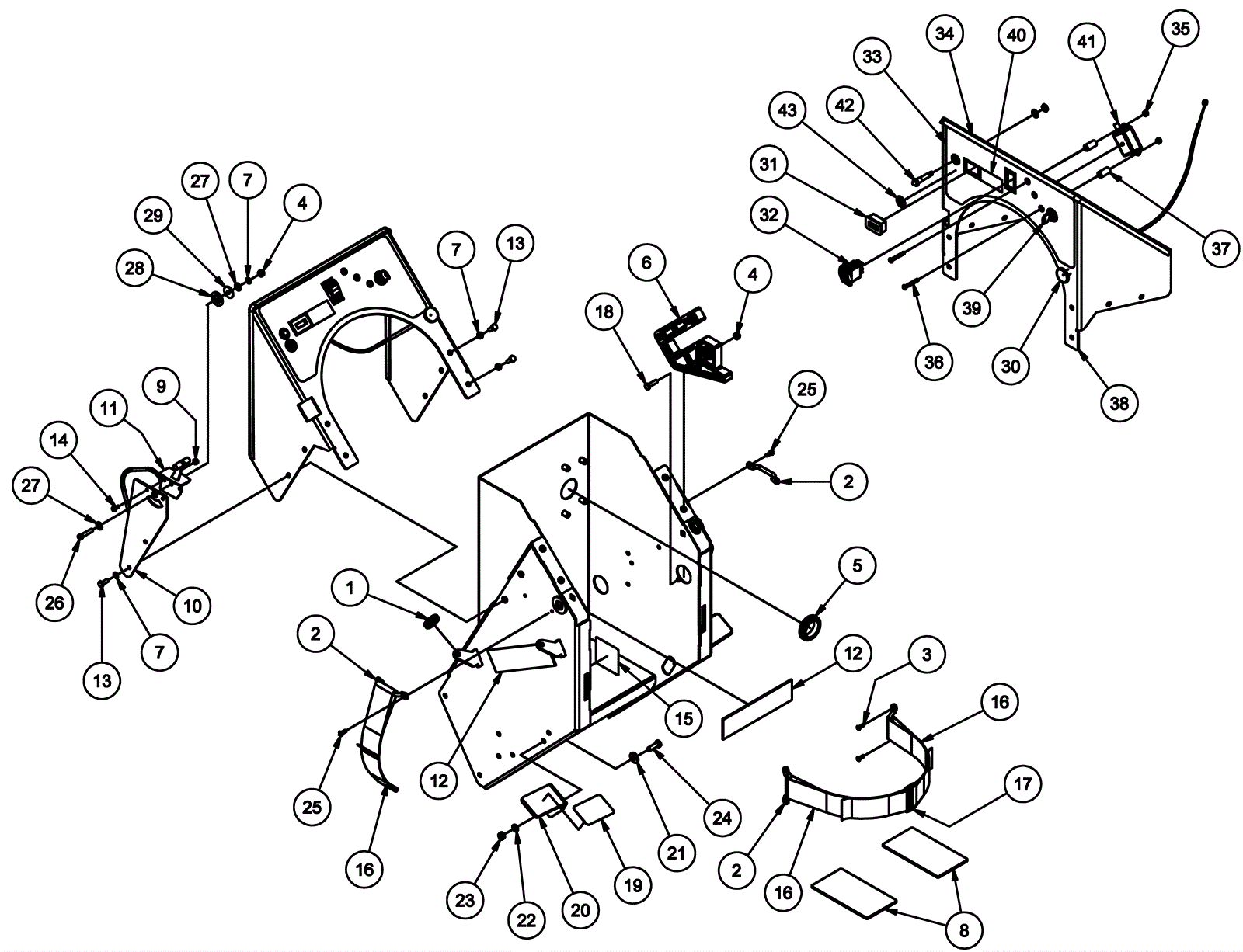

Hydra-Grinder 34 Propane Bulkhead and Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-0332 Grooved grommet $4.43 1 usually ships 1-5 days
2 154-0328 Footman loop $10.88 4 usually ships 1-5 days
3 999-0709 Screw 10-24 x 3/4 oval head phillips $1.65 4 ships same day
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 7 ships same day
5 154-0584 Grommet $9.33 2 usually ships 1-5 days
6 154-0537 Handle bracket $55.20 2 usually ships 1-5 days
7 154-0600 Lock washer $1.67 9 usually ships 4-15 days
8 154-0662 Battery pad $34.15 2 usually ships 1-5 days
9 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
10 154-1431 Throttle bracket $54.12 1 usually ships 1-5 days
11 154-3537 35 inch throttle cable $74.67 1 usually ships 1-5 days
12 992-0001 Velcro loop (sold by the inch) $0.60 8 in ships same day
13 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
14 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
15 154-3689 Caution decal $5.07 1 usually ships 1-5 days
16 154-1039 Tank strap $39.51 3 ships same day
17 154-2330 Strap slide $5.56 1 ships same day
18 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish $0.99 6 ships same day
19 154-2119 Pedal tread $23.80 2 usually ships 1-5 days
20 154-3767 Foot pedal $64.62 2 usually ships 4-15 days
21 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
22 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
23 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
24 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
25 997-1002 Pop rivet 3/16 x 7/16 $0.99 4 ships same day
26 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
27 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
28 999-0288 Washer M16 flat zinc plated $0.99 1 ships same day
29 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
30 154-1444 Control flow cable $46.73 1 usually ships 4-15 days
31 154-1445 Hour meter $156.26 1 usually ships 4-15 days
32 154-1446 Rocker switch with light $50.85 1 usually ships 4-15 days
33 154-3768 Dash decal (OBSOLETE) Call for price 1 usually ships 4-15 days
34 154-0117 Trim (sold by the foot) $9.04 4 ft (sold by the foot) usually ships 1-5 days
35 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
36 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
37 154-1366 Spacer $2.19 2 usually ships 1-5 days
38 154-3769 Control panel $140.05 1 usually ships 4-15 days
39a 154-0579 Key switch assembly with key $68.22 1 usually ships 4-15 days
39b 154-2338 Key $18.29 1 ships same day
40 154-3768 Dash decal (OBSOLETE) Call for price 1 usually ships 4-15 days
41 154-3510 Emissions monitoring module assembly $322.54 1 usually ships 4-15 days
42 154-3770 LED light (red) $25.20 1 usually ships 4-15 days
43 154-3757 Propane tank overfill warning decal (OBSOLETE) $2.34 1 usually ships 4-15 days
