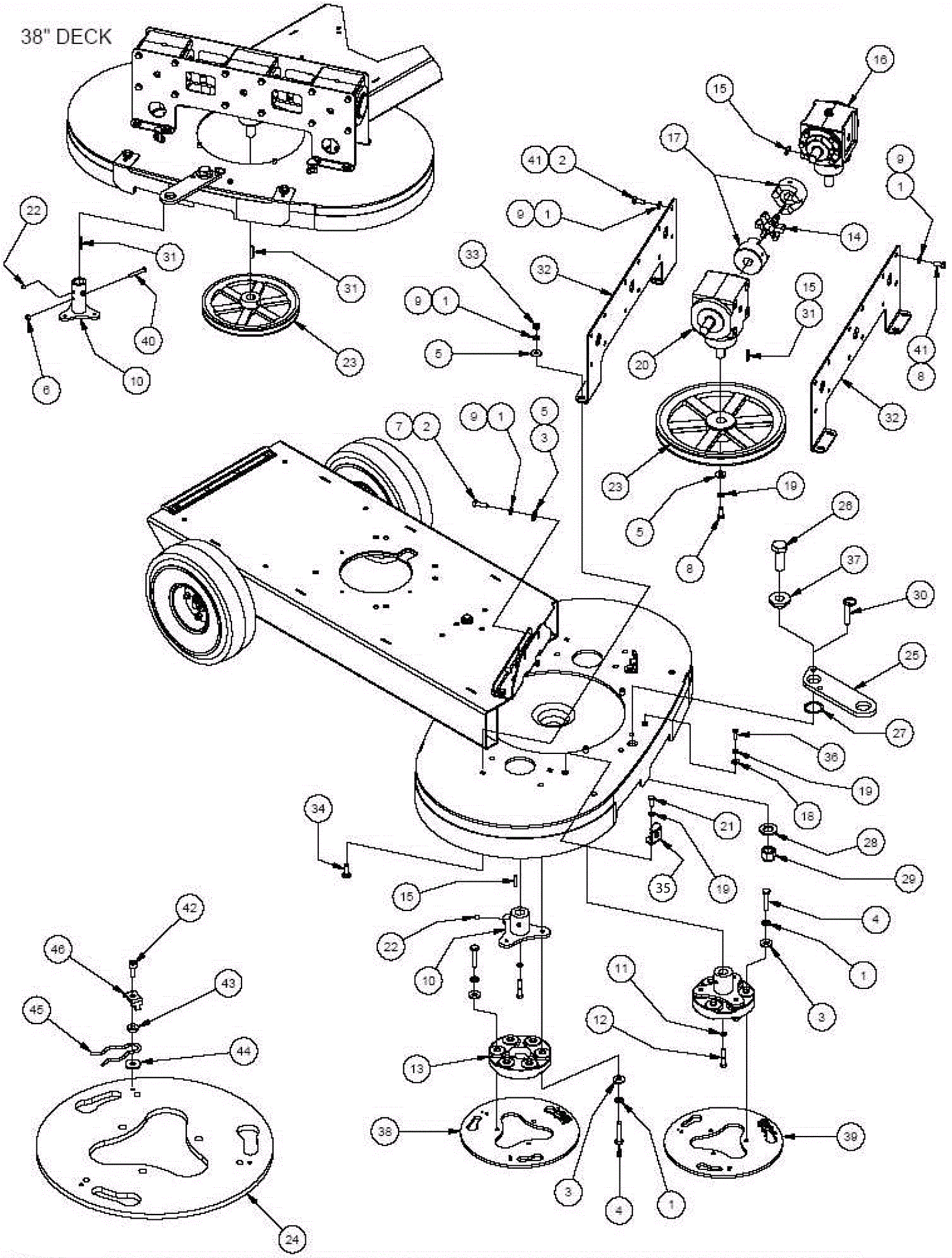

PE440ST Main Assembly - Deck

#PartDescriptionPriceReqNotesAvailability
1a 154-0633 Lock washer $2.29 12 30 inch usually ships 1-5 days
1b 154-0633 Lock washer $2.29 36 38 inch usually ships 1-5 days
2 154-0757 Screw 3/8 x 1 $2.29 2 usually ships 1-5 days
3a 999-0032 Washer 3/8 USS flat plain finish $2.42 12 30 inch ships same day
3b 999-0032 Washer 3/8 USS flat plain finish $2.42 14 38 inch ships same day
4 154-1203 Screw 3/8 x 1 3/4 $3.21 12 usually ships 1-5 days
5a 999-0024 Washer 5/16 flat stainless steel $1.34 31 30 inch ships same day
5b 999-0024 Washer 5/16 flat stainless steel $1.34 38 38 inch ships same day
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
7 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
8 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 23 ships same day
9a 999-0028 Washer 5/16 split lock plain finish $0.99 32 30 inch ships same day
9b 999-0028 Washer 5/16 split lock plain finish $0.99 8 38 inch ships same day
10a 154-3676 3/4 inch drive hub $163.49 2 30 inch usually ships 1-5 days
10b 154-3677 1 inch drive hub $215.30 2 38 inch usually ships 1-5 days
11 154-2426 Washer $2.29 2 usually ships 1-5 days
12 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
13 154-1215 Coupling $281.47 2 usually ships 12-17 days
14 154-2056 Spider hub $146.40 2 usually ships 12-17 days
15a 154-0482 Square keyway $18.23 7 30 inch usually ships 1-5 days
15b 154-0262 Key 1/4 x 1/4 x 1-1/2 $19.12 4 38 inch usually ships 1-5 days
16a 154-9018 Right angle gearbox $1,136.47 2 30 inch usually ships 12-17 days
16b 154-2005 Right side gearbox $1,088.85 2 38 inch usually ships 1-5 days
17a 154-2055 Hub $62.13 4 30 inch usually ships 12-17 days
17b 154-2063 Hub $31.66 4 38 inch usually ships 1-5 days
18 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
19 154-0600 Lock washer $2.29 3 usually ships 12-17 days
20a 154-2054 Center gearbox $1,120.39 1 30 inch usually ships 12-17 days
20b 154-2006 Right side T-drive gearbox $1,271.84 1 38 inch usually ships 1-5 days
21 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
22 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish $0.99 4 ships same day
23a 154-0494 3/4 inch pulley $108.67 1 30 inch usually ships 1-5 days
23b 154-2011 1 inch pulley $437.05 1 38 inch usually ships 1-5 days
24 154-3678 Head attachment plate $140.70 1 usually ships 1-5 days
25 154-9041 Cart hook pivot plate $41.69 1 usually ships 12-17 days
26 999-0750 Bolt 3/4-10 x 3 hex head grade 5 zinc plated $2.42 1 ships same day
27 154-2031 Wave washer $18.18 1 usually ships 1-5 days
28 999-9114 Washer 3/4 flat stainless steel $1.58 1 ships same day
29 999-1001 Nut 3/4-10 nylon insert lock zinc plated $1.51 1 usually ships 1-5 days
30 154-2033 Pin $17.62 1 usually ships 1-5 days
31 154-3679 Key 1/4 x 1 1/2 inch $1.19 3 usually ships 1-5 days
32a 154-9155 30 inch gearbox bracket $98.75 2 30 inch usually ships 12-17 days
32b 154-9156 38 inch gearbox bracket $113.97 2 38 inch usually ships 12-17 days
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 8 ships same day
34 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 8 ships same day
35 154-9157 Bracket cover Call for price 2 usually ships 12-17 days
36 154-1339 Bolt 1/4-20 x 3/4 button head stainless steel $2.49 1 usually ships 1-5 days
37 154-9042 Hook plate pivot bushing $30.84 1 usually ships 12-17 days
38 154-3680 Right side plate assembly $163.68 1 usually ships 12-17 days
39 154-3681 Left side plate assembly $163.68 1 usually ships 12-17 days
40 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 2 ships same day
41 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized $1.14 22 ships same day
42 999-1437 Screw 10-24 x 1/2 inch socket head stainless steel $0.99 1 ships same day
43 154-1217 Washer .2 nylon $2.29 1 usually ships 12-17 days
44 154-1218 Washer .21 nylon $2.29 1 usually ships 12-17 days
45 154-2025 Hitch pin $2.29 1 usually ships 12-17 days
46 154-2024 Hitch pin retainer $3.39 1 usually ships 12-17 days
