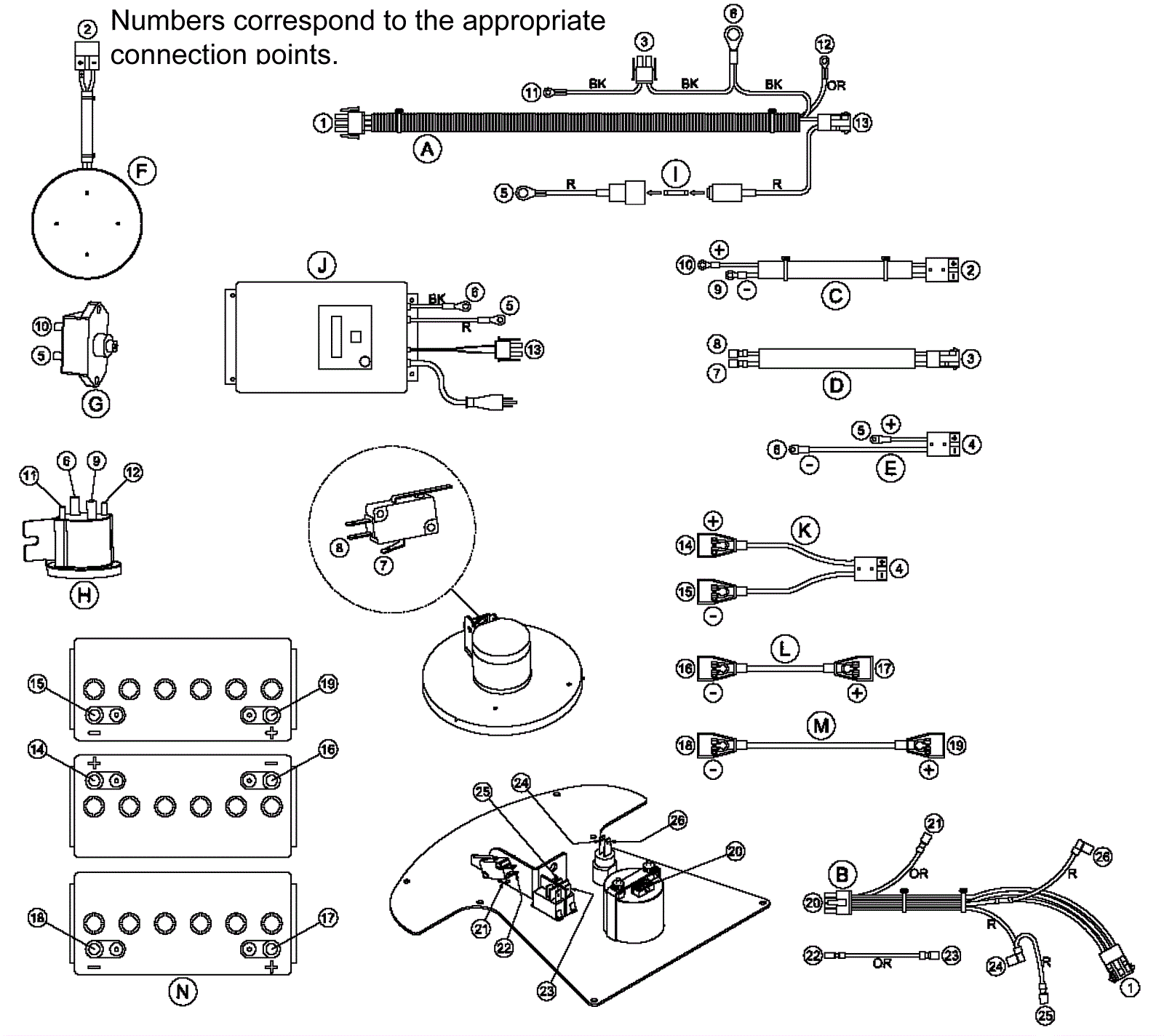

| # | Part | Description | Price | Req | Notes | Availability |
|---|
A |
154-3640
|
Main pad wiring harness |
$176.21
|
1 |
|
usually ships 1-5 days |
B |
154-3641
|
Control panel pad wiring harness |
$84.68
|
1 |
|
usually ships 1-5 days |
C |
154-3642
|
Motor wiring harness |
$108.61
|
1 |
|
usually ships 1-5 days |
D |
154-3643
|
Tilt switch wiring harness |
$21.82
|
1 |
|
usually ships 1-5 days |
E |
154-3633
|
Battery cable assembly |
$163.47
|
1 |
|
usually ships 1-5 days |
F |
154-3638
|
36V 2.5HP motor assembly |
$1,484.26
|
1 |
|
usually ships 12-17 days |
G |
154-3631
|
70amp circuit breaker |
$197.64
|
1 |
|
usually ships 12-17 days |
H |
154-3551
|
36V contactor |
$221.33
|
1 |
|
usually ships 12-17 days |
I |
154-1485
|
3amp fuse |
$3.12
|
1 |
|
usually ships 1-5 days |
J |
154-3566
|
36V onboard charger |
$1,491.90
|
1 |
|
usually ships 12-17 days |
K |
154-1621
|
Battery connector cable |
$101.64
|
1 |
|
usually ships 1-5 days |
L |
154-1519
|
Battery connector cable |
$33.97
|
1 |
|
usually ships 1-5 days |
M |
154-1612
|
Battery connector cable |
$38.89
|
1 |
|
usually ships 1-5 days |
N |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
Call for price
|
3 |
|
usually ships 3-26 days |
N/S |
154-3684
|
Diode wiring assembly |
$41.46
|
1 |
|
usually ships 12-17 days |
