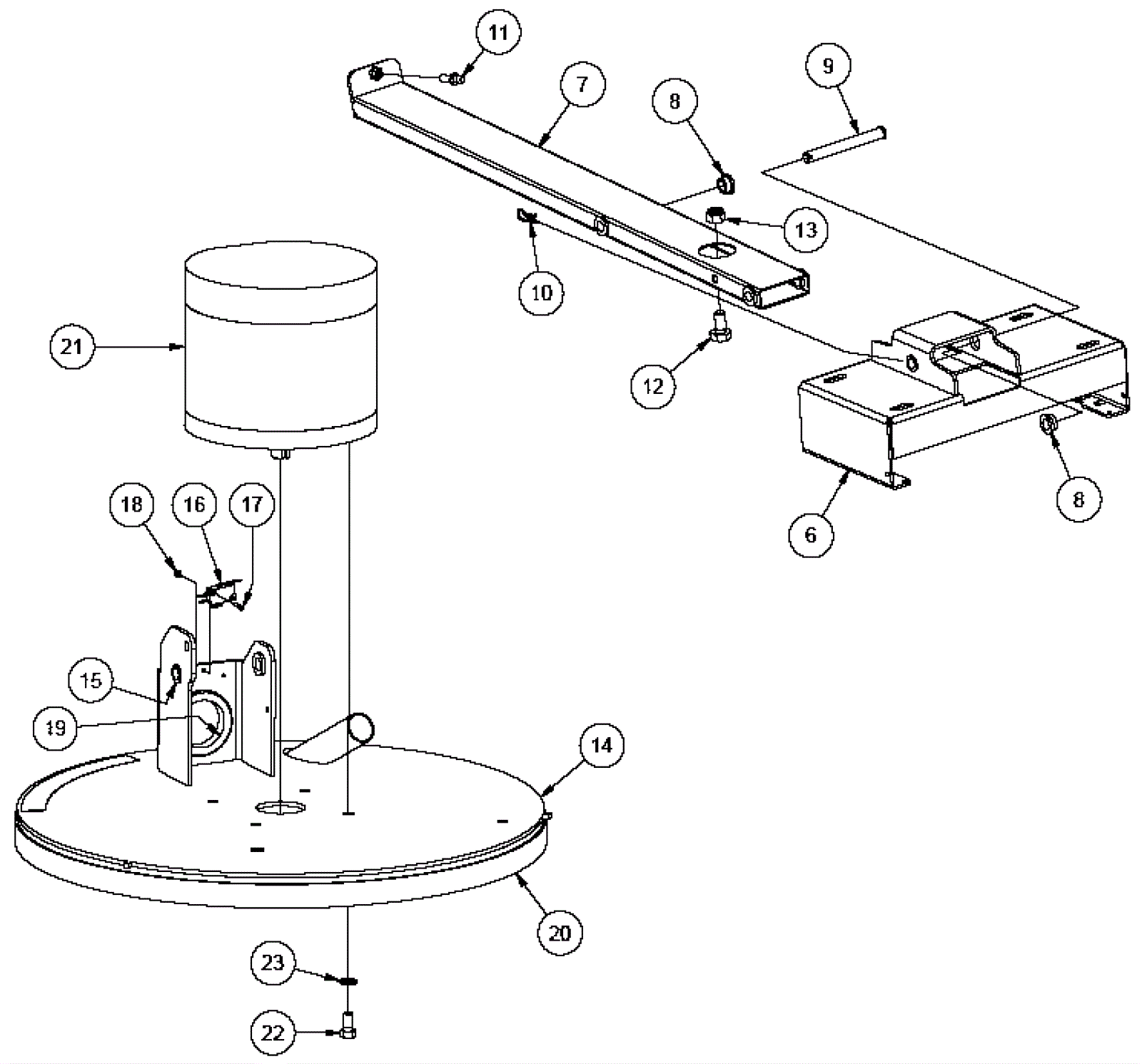

PE300BU Motor and Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
6 154-3634 Transaxle mounting weldment bracket $263.49 1 usually ships 1-5 days
7 154-3589 Tube mount $211.71 1 usually ships 1-5 days
8 154-1551 Flanged bushing $14.00 6 usually ships 12-17 days
9 154-1237 Clevis pin $4.05 1 usually ships 12-17 days
10 154-1207 Cotter pin $6.50 1 usually ships 12-17 days
11 154-3635 10mm stud ball $9.45 1 usually ships 1-5 days
12 999-0115 Bolt 1/2-13 x 1 hex head grade 5 $1.43 1 ships same day
13 154-2042 Bonding nut $2.29 1 usually ships 1-5 days
14a 154-3636 20 inch shroud assembly $481.27 1 usually ships 12-17 days
14b 154-3743 24 inch shroud assembly $419.79 1 usually ships 12-17 days
15 154-1551 Flanged bushing $14.00 2 usually ships 12-17 days
16 154-2371 Micro switch $32.57 1 usually ships 12-17 days
17 154-0544 Screw 4-40 x 3/4 UNF round head machine $2.29 2 usually ships 1-5 days
18 154-0540 Nut 4-40 nylon lock $2.29 2 usually ships 1-5 days
19 154-1245 Grommet $20.81 1 usually ships 1-5 days
20 154-3637 Velcro loop (black) $17.56 1 usually ships 12-17 days
21a 154-3638 36V 2.5HP motor assembly $1,484.26 1 usually ships 12-17 days
21b 154-3639 36V 2.5HP carbon brush kit (set of 4) $52.53 1 usually ships 12-17 days
22 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized $1.14 4 ships same day
23 154-0633 Lock washer $2.29 4 usually ships 1-5 days
