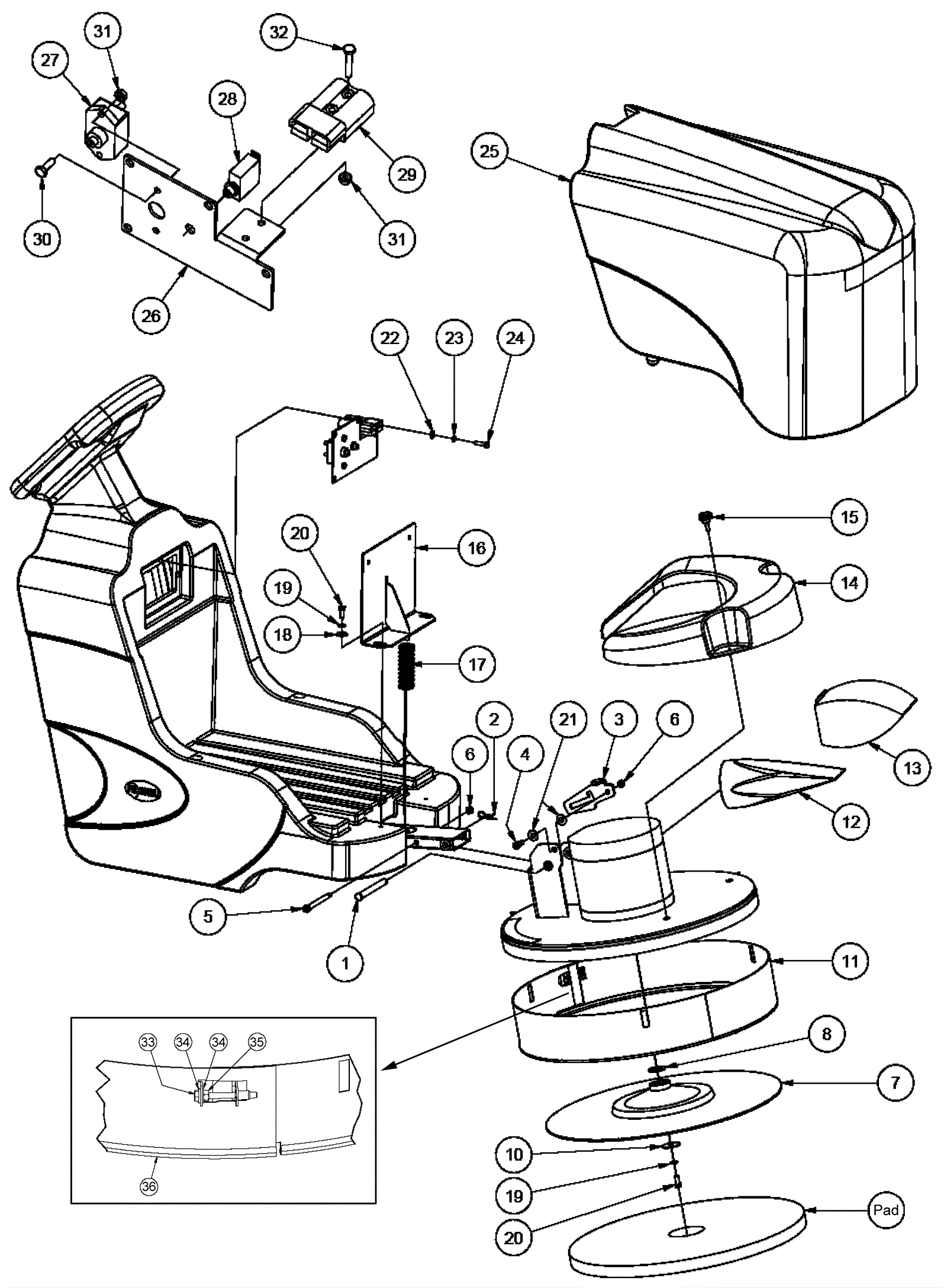

Main Assembly

#PartDescription ReqNotesAvailability
1 154-1237 Clevis pin 1
2 154-1207 Cotter pin 1
3 154-3623 Shroud tilt latch 1
4 154-2245 Screw 5/16-18 x 1/2 shoulder stainless steel 1
5 999-1535 Screw 5/16-18 x 3/8 x 3 1/2 shoulder plain finish 1
6 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
7a 154-3570 20 inch pad driver assembly 1 (Includes 7c)
7b 154-3665 24 inch pad driver assembly 1 (Includes 7c)
7c 154-3624 Pad retainer 1
8 154-2148 Washer 3/4 flat narrow (OBSOLETE) 1
10 154-1283 Washer 5/6 flat 1
11a 154-3569 20 inch steel skirt assembly 1
11b 154-3590 24 inch steel skirt assembly 1
12 154-3625 Cloth dust bag 1
13 154-3626 Paper dust bag 1
14 154-3552 Dust bag cover 1
15 154-0820 Fluted knob 1/4-20 x 3/4 stud 2
16 154-3627 Battery weldment retainer 1
17 154-3628 Compression spring 1
18 999-0024 Washer 5/16 flat stainless steel 2
19 999-0028 Washer 5/16 split lock plain finish 3
20 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 3
21 999-0120 Washer 3/8 SAE flat 2
22 999-0016 Washer 1/4 flat plain finish 4
23 154-0600 Lock washer 4
24 999-0197 Screw 1/4-20 x 1 socket head alloy plain finish 4
25 154-3629 Battery cover with decal 1
26 154-3630 Battery plug mounting plate 1
27 154-3631 70amp circuit breaker 1
28a 154-3632 40amp circuit breaker 1 (traction only)
28b 154-3650 50amp circuit breaker (OBSOLETE) 1
29 154-3633 Battery cable assembly 1
30 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
31 154-0802 Nut 1/4-20 keps 4
32 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel 2
33 154-0781 Bolt 1/4-20 x 2 1/2 inch hex head tap 1
34 999-0016 Washer 1/4 flat plain finish 2
35 999-0609 Nut 1/4-20 hex stainless steel 1
36 154-0466 Skirt edging (bottom) (sold by the foot) 2
