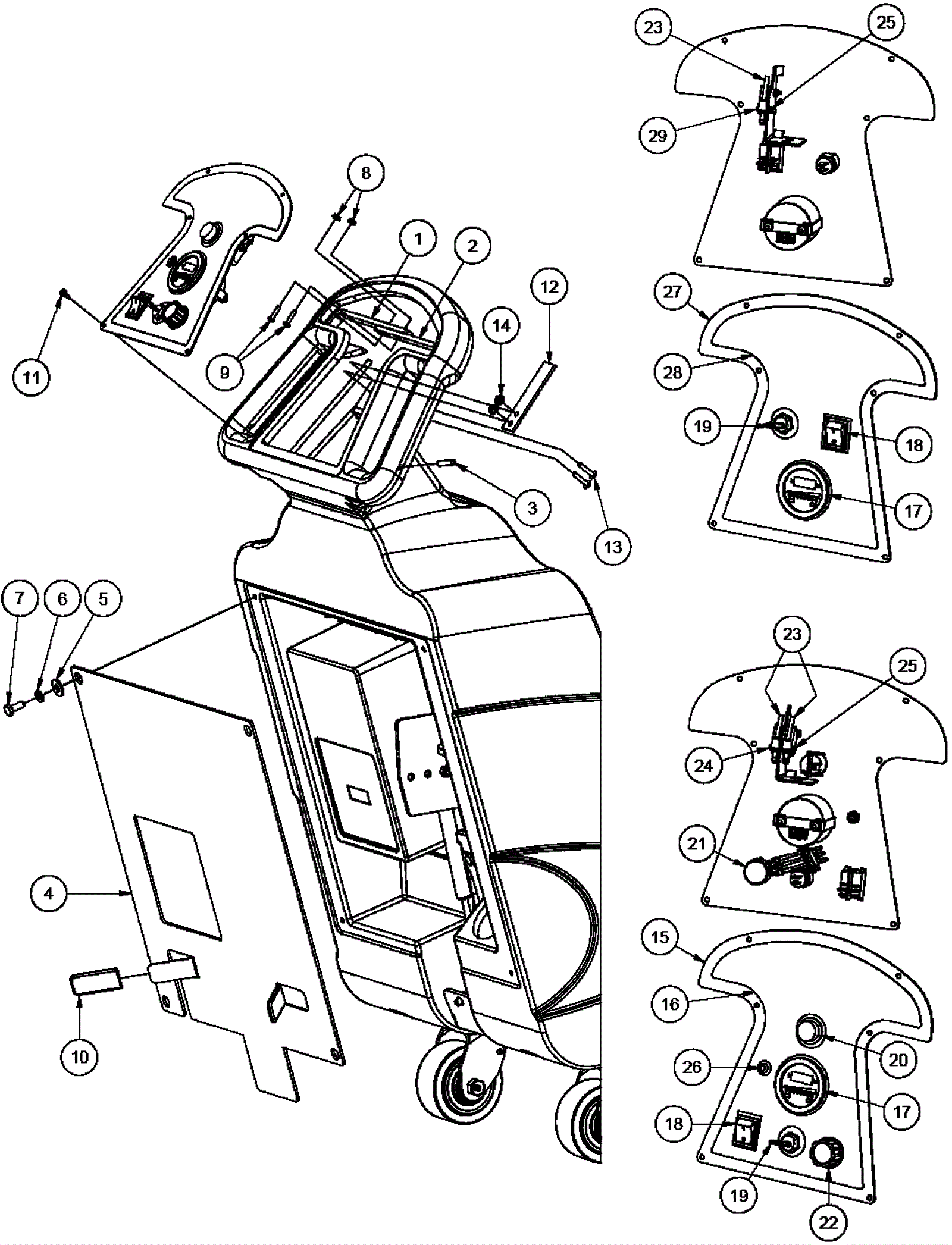

PE300BU Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-3606 Left handle lever $40.43 1 usually ships 1-5 days
2 154-3607 Right handle lever $40.43 1 usually ships 1-5 days
3 154-3608 Roll pin 1/4 x 1 1/8 (OBSOLETE) $0.99 2 usually ships 1-5 days
4 154-3609 Rear cover plate $149.35 1 usually ships 1-5 days
5 999-0024 Washer 5/16 flat stainless steel $1.34 35 ships same day
6 154-3610 Washer 5/16 (OBSOLETE) $0.99 33 usually ships 1-5 days
7 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish $0.99 30 ships same day
8 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
9 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
10 154-1505 Vinyl cover $9.86 2 usually ships 1-5 days
11 154-1272 Screw 8 x 3/8 $2.29 6 usually ships 1-5 days
12 154-3611 Hand lever spring 1/8 x 1 x 4 $28.51 1 usually ships 1-5 days
13 999-1031 Screw 10-24 x 1 truss head phillips stainless steel $0.99 2 ships same day
14 154-0649 Nut 10-24 spin lock $2.29 2 usually ships 1-5 days
15 154-3612 Traction control panel weldment $99.47 1 usually ships 1-5 days
16 154-3613 Traction control panel decal (OBSOLETE) $40.13 1 usually ships 1-5 days
17 154-3614 Hour meter $267.63 1 ships same day
18 154-3615 Rocker switch $30.90 1 usually ships 12-17 days
19a 154-3616 36V key switch $47.25 1 usually ships 12-17 days
19b 154-2338 Key $19.89 1 usually ships 12-17 days
20 154-3617 Push switch $10.47 1 (traction only) usually ships 1-5 days
21 154-3618 Potentiometer assembly $157.31 1 (traction only) usually ships 12-17 days
22 154-3619 Phenolic knob $21.02 1 (traction only) usually ships 12-17 days
23 154-2371 Micro switch $32.57 1 usually ships 12-17 days
24 999-0983 Screw 4-40 x 1 pan head phillips zinc plated $0.99 2 ships same day
25 154-0540 Nut 4-40 nylon lock $2.29 4 usually ships 1-5 days
26 154-3620 36V LED kit (red) $34.03 1 usually ships 1-5 days
27 154-3621 Control panel pad assist $107.50 1 usually ships 1-5 days
28 154-3622 Control panel decal (OBSOLETE) $53.58 1 usually ships 1-5 days
29 154-0544 Screw 4-40 x 3/4 UNF round head machine $2.29 2 usually ships 1-5 days
