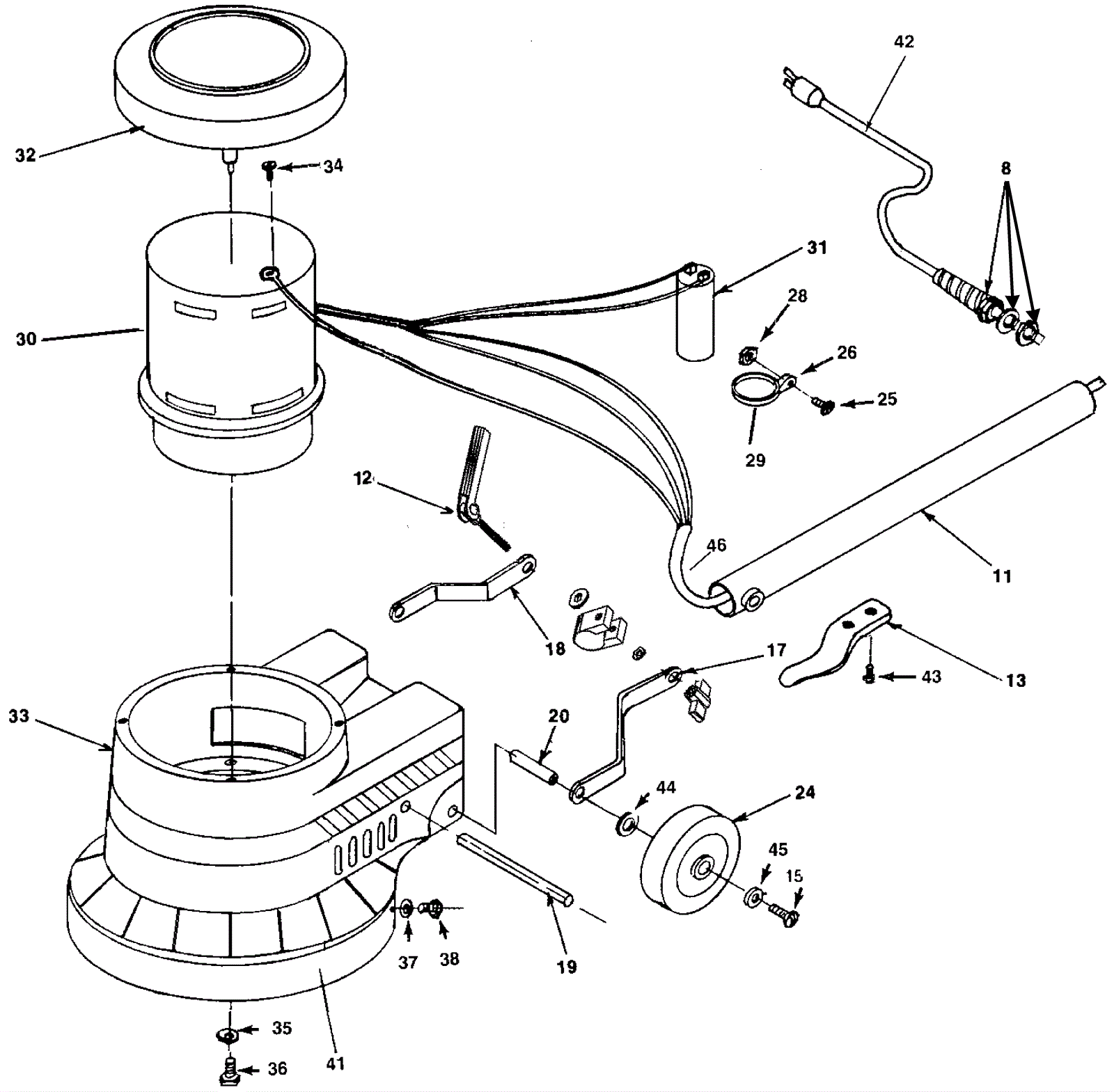

SWINGSTAR 17 Base Assembly

#PartDescriptionPriceReqNotesAvailability
8a 189-3021 Metal strain relief $18.43 usually ships 14-27 days
8b 189-3019 Counter nut $9.99 usually ships 1-5 days
8c 189-3018 Spacer $2.54 usually ships 1-5 days
8d 189-3022 Brass sleeve strain relief $5.50 usually ships 1-5 days
11 189-2976 Handle tube with inserts $104.42 usually ships 1-5 days
12 190-0008 Handle clamp assembly $54.12 ships same day
13 189-2978 Cord hook $20.63 usually ships 14-27 days
15 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated $0.99 ships same day
17 189-2980 Left side handle brace $35.09 usually ships 14-27 days
18 189-3013 Right side handle brace $35.09 usually ships 14-27 days
19 189-2983 Pivot shaft $6.63 usually ships 1-5 days
20 189-2982 Rear axle $6.42 usually ships 15-28 days
24 189-2985 4 inch wheel $39.60 usually ships 14-27 days
25 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 ships same day
26 189-3017 Strap mount $1.30 usually ships 1-5 days
28 999-0077 Nut 8-32 k-lock zinc plated $0.99 ships same day
29 189-3015 Capacitor strap $1.30 usually ships 1-5 days
30a 190-0273 Motor and gear unit $705.02 usually ships 1-5 days
30b 190-0279 Upper motor bearing $15.98 usually ships 15-28 days
30c 170-0694 Odum coupling $13.76 ships same day
30d 190-0034 Stationary switch $11.95 usually ships 1-5 days
31 189-3038 Capacitor $116.04 usually ships 1-5 days
32 190-0039 Motor cover $33.17 usually ships 15-28 days
33 190-0274 Base housing $278.53 usually ships 1-5 days
34 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.30 usually ships 15-28 days
35 190-0275 D washer $0.99 usually ships 1-5 days
36 190-0276 Screw 1/4-20 x 3/4 $1.30 usually ships 1-5 days
37 999-0464 Washer 3/16 flat plain finish $0.99 ships same day
38 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 ships same day
41 190-0277 Bumper $19.83 usually ships 1-5 days
42a 190-0035 14/3 power cord 50 foot $46.28 (OEM) usually ships 1-5 days
42b 190-0278 14/3 power cord 50 foot with metal strain relief & terminal $146.61 (OEM) usually ships 1-5 days
42c 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 (NON-OEM) (does not include strain relief) ships same day
43 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.30 usually ships 15-28 days
44 189-2984 Spring washer $1.30 ships same day
45 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
46 189-3016 Interconnect cord $51.35 usually ships 14-27 days
N/S 189-3041 Wheel spacer $1.30 usually ships 15-28 days
N/S 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 ships same day
N/S 189-3045 Screw and nut $1.97 (for short switch housing) usually ships 15-28 days
N/S 999-0577 Screw 14 x 1/2 hex washer head sheet metal zinc $0.99 (for long switch housing) ships same day
