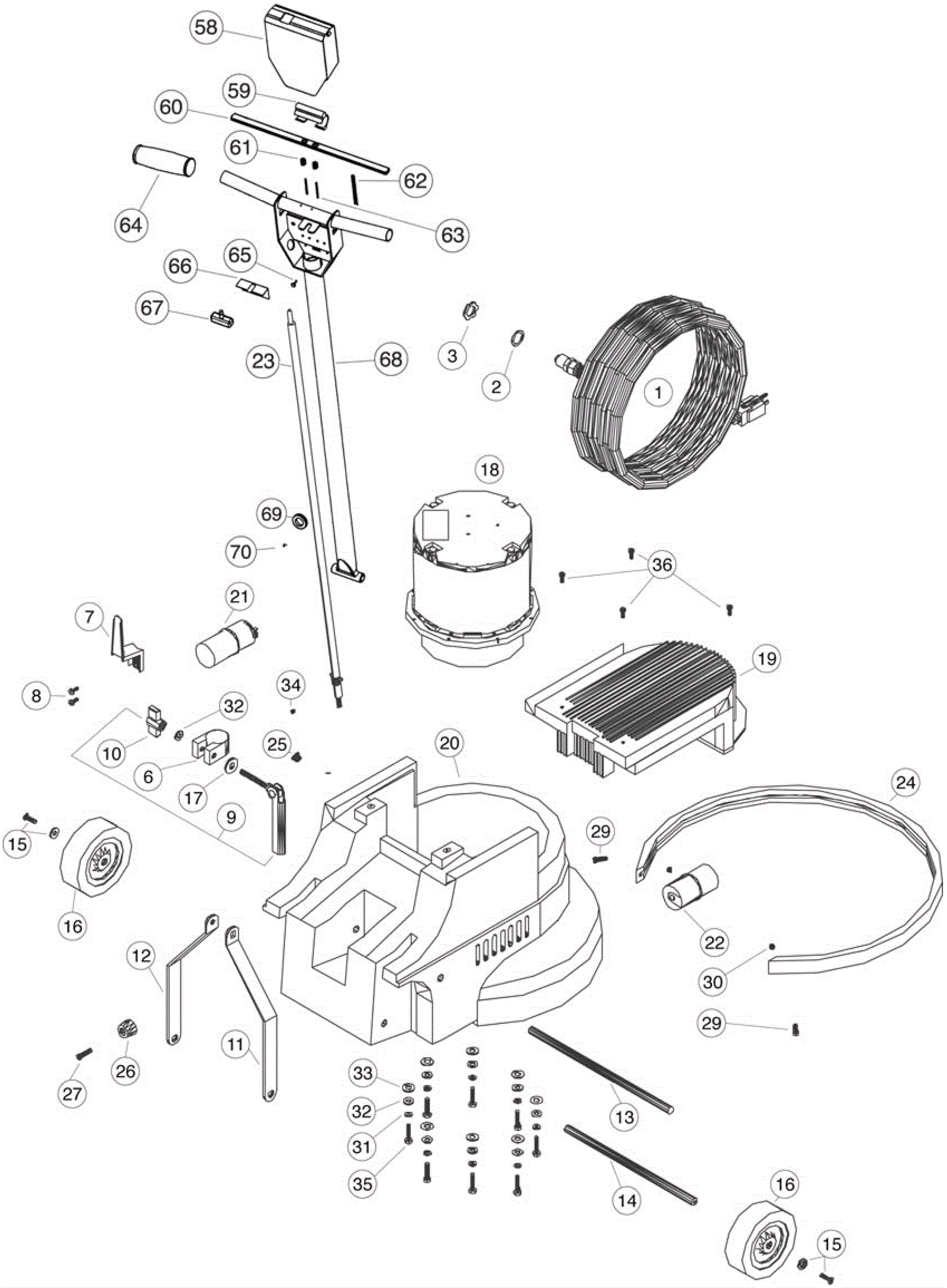

SWINGSTAR 17 Upper Assembly

#PartDescriptionPriceReqNotesAvailability
1a 190-0264 14/3 power cord 50 foot with strain relief $145.96 (OEM) usually ships 15-28 days
1b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 (NON-OEM) (does not include strain relief) ships same day
2c 991-5001 14/3 extension cord 50 foot (yellow) $103.23 (NON-OEM) ships same day
2 189-3047 Strain relief washer $13.39 usually ships 14-27 days
3 189-7556 Strain relief nut $4.75 usually ships 14-27 days
6 189-3012 Handle clamp collar $36.93 ships same day
7 189-2978 Cord hook $20.63 usually ships 14-27 days
8 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.30 usually ships 15-28 days
9 190-0008 Handle clamp assembly $54.12 (includes 6, 10, 17 and 32) ships same day
10 189-2981 Knob $8.91 ships same day
11 190-0057 Right side handle brace with hole $12.47 usually ships 15-28 days
12 190-0056 Left side handle brace with slot $12.66 usually ships 15-28 days
13 189-8617 Pivot shaft $10.11 usually ships 15-28 days
14 189-8618 Wheel axle $10.35 usually ships 15-28 days
15a 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
15b 190-0265 Axle bolt $1.30 usually ships 15-28 days
16 189-2987 5 inch wheel $18.69 ships same day
17 189-3010 Oval washer $3.83 usually ships 14-27 days
18a 189-8621 1 1/2HP motor $20.66 usually ships 1-5 days
18b 189-8619 Start capacitor $72.04 usually ships 15-28 days
18c 189-8620 Run capacitor $41.39 usually ships 15-28 days
19 190-0266 Motor cover $27.35 usually ships 15-28 days
20 190-0274 Base housing $278.53 usually ships 1-5 days
21 189-8622 Run capacitor $75.19 usually ships 1-5 days
22 189-8623 Start capacitor $35.08 usually ships 1-5 days
23 189-3016 Interconnect cord $51.35 usually ships 14-27 days
24 189-8624 Bumper $38.32 usually ships 15-28 days
25 189-8625 Plug $1.30 usually ships 1-5 days
26 190-0267 Bumper $1.94 usually ships 15-28 days
27 999-0883 Screw 8 x 1 pan head phillips zinc plated $0.99 ships same day
29 999-1389 Screw 8-32 x 3/4 truss head phillips stainless steel $2.30 (qty of 2) ships same day
30 190-0268 Spacer $2.05 (qty of 2) usually ships 1-5 days
31 190-0269 Washer 1/4 spring lock $1.30 usually ships 15-28 days
32 999-0024 Washer 5/16 flat stainless steel $1.34 ships same day
33 999-0120 Washer 3/8 SAE flat $0.99 ships same day
34 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 ships same day
35 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 ships same day
36 999-1544 Screw 8-32 x 1/2 truss head phillips stainless steel $0.99 (qty of 4) ships same day
58 189-8626 Switch box cover $49.76 usually ships 15-28 days
59 190-0060 Thumb actuation release $1.30 usually ships 15-28 days
60 190-0061 Handle trigger $11.57 ships same day
61 190-0062 Trigger tension spring $1.35 (qty of 2) ships same day
62 190-0063 Spring $3.39 usually ships 15-28 days
63 190-0064 Handle roll pin $1.35 (qty of 2) usually ships 15-28 days
64 190-0270 Handle grip $14.29 (qty of 2) usually ships 15-28 days
65a 189-2979 Screw 10-24 x 1/2 pan head phillips type f $1.30 (qty of 3) usually ships 15-28 days
65b 190-0066 Washer lock $1.30 (qty of 3) ships same day
66 190-0067 Insulation sheet $2.11 usually ships 15-28 days
67a 189-2971 25amp switch $66.36 usually ships 6-10 days
67b 991-2107 Switch $23.75 (NON-OEM) usually ships 14-21 days
68 190-0271 Handle weldment $217.79 usually ships 15-28 days
69 189-8627 Grommet $26.98 usually ships 15-28 days
70 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 ships same day
N/S 190-0272 Switch $21.77 usually ships 15-28 days
N/S 189-8628 Insulation switch boot $3.11 usually ships 15-28 days
N/S 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 ships same day
