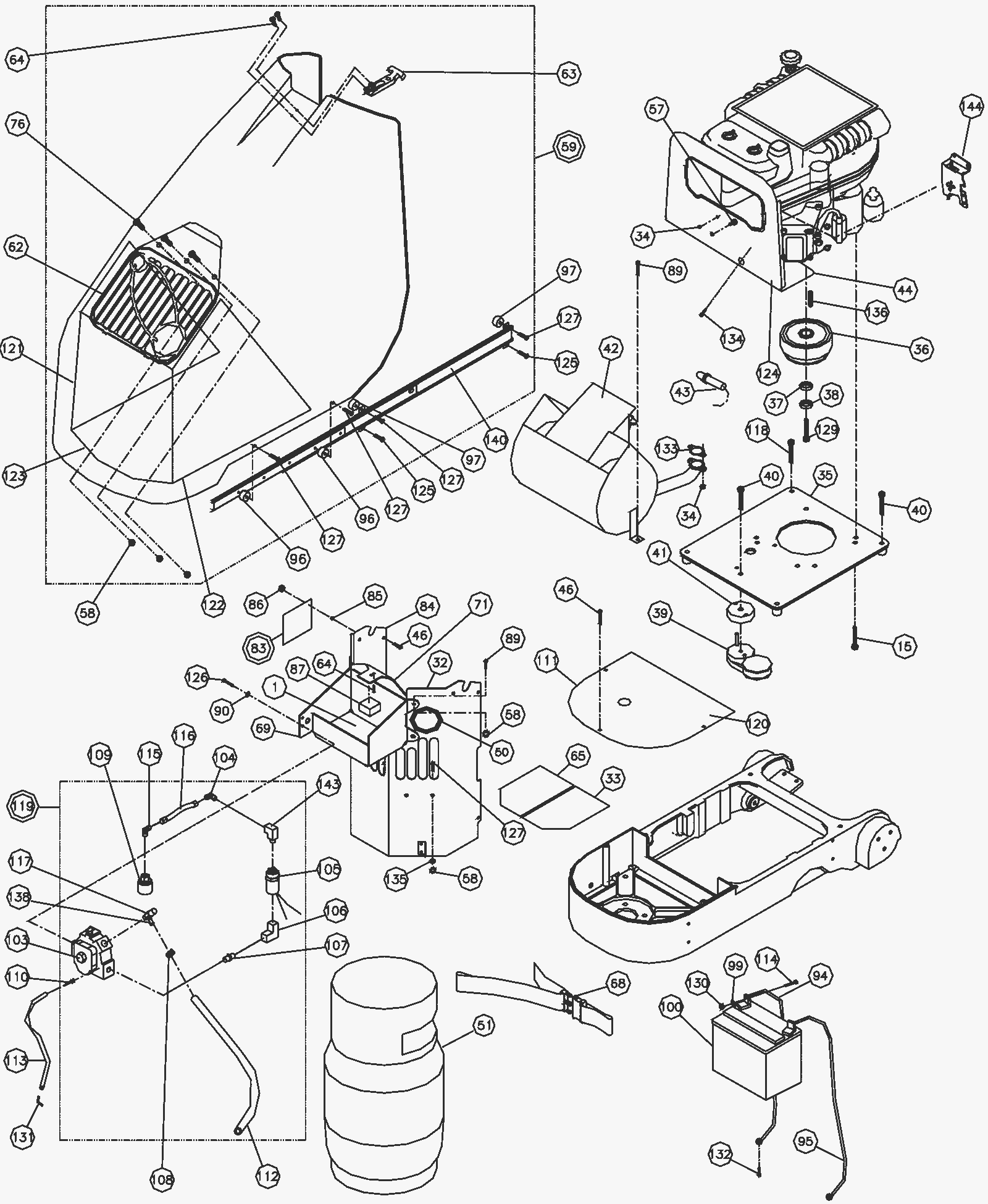

Engine Assembly

#PartDescription ReqNotesAvailability
1 154-0093 Battery pad (OBSOLETE) 1
15 154-0023 Bolt M8 x 30mm flanged 4
32 154-0869 Bulkhead assembly 1
33 154-0870 Left tank pad (OBSOLETE) 1
34 154-0871 Flange nut 6mm 2
35 154-0872 Motor plate (OBSOLETE) 1
36 154-0552 Centrifugal clutch 1
37 154-0873 Shim clutch bushing 1
39 154-0570 Belt tensioner 1
40 154-0835 Screw 3/8-16 x 2 flange hex head 4
41 154-0874 Tensioner spacer (OBSOLETE) 1
42a 154-0875 Muffler 1
42b 154-3667 Muffler 1 FD731V
43 991-1601 Oxygen sensor 1 wire (OBSOLETE) 1
44 154-0876 Manifold shield (OBSOLETE) 1
46 154-0877 Screw 1/4-20 x 1/2 flange 11
50 154-0117 Trim (sold by the foot) 9 1/2 in
51 161-0003 Aluminum propane tank 1
57 999-0016 Washer 1/4 flat plain finish 15
58 999-0152 Nut 1/4-20 nylon insert lock zinc plated 15
59 154-0878 Body assembly (OBSOLETE) 1
62 154-0879 Grill (OBSOLETE) 1
63 154-0880 Flexible draw latch 1
64 999-0166 Screw 10-24 x 5/8 truss head slotted zinc plated 3
65 154-0881 Right tank pad (OBSOLETE) 1
68 154-0752 Tank holding strap 1
69 154-0882 Battery tray (OBSOLETE) 1
71 154-0883 Battery clamp (OBSOLETE) 1
76 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish 4
83 N/A Not available 1 (SafeSense module kit)
84 154-0884 Painted circuit board bracket (OBSOLETE) 1
85 154-0885 Spacer 4
87 154-0886 Battery retainer foam (OBSOLETE) 1
89 154-0862 Screw 1/4-20 x 3/4 flange hex head 6
90 999-0238 Washer 1/4 internal star lock zinc plated 2
94 154-0338 Negative battery cable 1
95 154-0337 Positive battery cable 1
96 154-0887 Nylon spacer 4
97 154-0888 Nylon boss 8
99 999-0028 Washer 5/16 split lock plain finish 4
100 162-0001 12V 35Ah AGM battery 1
103 991-6001 Fuel regulator (T60) 1
104 154-0066 Fitting 49 x 6 (regulator to fuel lock) 1
105 154-1052 12V fuel lock off 1
106 154-0169 Female brass fitting 1
107 154-0090 Fitting (regulator to fuel lock) 1
108 154-0036 Plastic hose clamp 2
109 154-1076 Female quick coupler 1
110 154-0228 Hosebarb 1/8 x 1/4 inch 1
111a 154-0889 28 inch pulley guard (OBSOLETE) 1 (28 inch model)
111b 154-0890 24 inch pulley guard (OBSOLETE) 1 (24 inch model)
112 154-0320 Fuel line (sold by the foot) 3 in
113 154-0351 Vacuum hose (sold by the foot) 2 ft
114 999-0130 Screw 5/16-18 x 3/4 socket head alloy plain finish 4
115 154-0349 Fitting 54 x 6 (regulator to fuelock) 1
116a 154-0098 12 inch regulator hose 1
116b 154-0206 12 inch regulator hose with fittings kit 1
117 154-0891 Fuel adjustment fitting 1
118 154-0892 Bolt 3/8-16 x 2 button head 1
119 154-0893 Sub-assembly regulator (OBSOLETE) 1
120 154-0894 Pulley cover heat insulation (OBSOLETE) 1
121 154-0895 Left side heat insulation 1
122 154-0896 Right side heat insulation 1
123 154-0897 Front heat insulation 1
124 154-0898 Manifold shield (OBSOLETE) 1
125 999-0124 Screw 1/4-20 x 1 1/4 button head socket cap plain finish 4
126 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 2
127 999-0229 Screw 1/4-20 x 1 button head socket plain finish 4
129 154-0017 Screw M10 x 35mm (OBSOLETE) 1
130 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
131 154-0095 Small elbow fuel fitting 1
132 152-0257 Bolt M6 x 1 x 16mm hex head flange 1
133 154-0899 Muffler gasket 2
134 154-0900 Bolt M8 x 16mm hex head flanged (OBSOLETE) 1
135 154-0866 Axle spacer 1
136 154-0901 Key 1/4 inch 1
138 154-0352 Hosebarb 1/8 x 3/8 inch 2
140 154-0902 Left and right body slide assembly (OBSOLETE) 1
143 154-0169 Female brass fitting 1
144 154-0903 Throttle plate replacement kit (OBSOLETE) 1
N/S 154-0904 Wiring harness 1
N/S 154-0906 Bail return spring 1
N/S 154-1058 Oil filter 1
N/S 154-0522 Air filter (OBSOLETE) 1
N/S 154-0905 Spark plug 1 (engine model AS02)
N/S 154-1067 Spark plug 1 (engine models BS02 and AS05)
N/S 154-0909 20amp fuse 1
N/S 154-1158 Engine screen
N/S 154-3513 Screen
N/S 178-0350 Water pump
N/S 178-0351 Pump gasket
N/S 178-0352 Cooling hose
