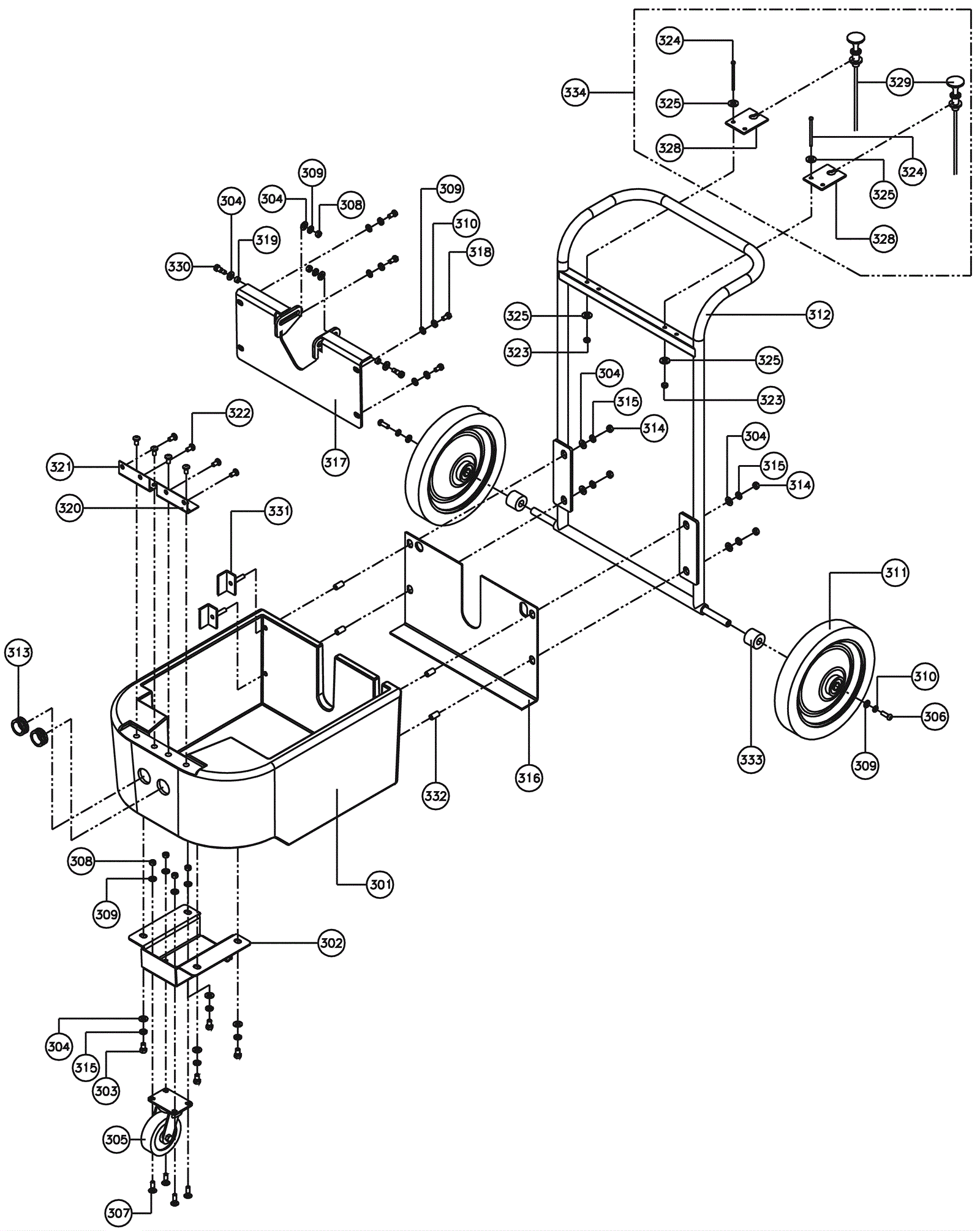

| # | Part | Description | Price | Req | Notes | Availability |
|---|
301 |
154-2477
|
Chassis (OBSOLETE) |
$283.75
|
1 |
|
usually ships 1-5 days |
302 |
154-2397
|
Weldment (OBSOLETE) |
$73.60
|
1 |
|
usually ships 1-5 days |
303 |
999-0631
|
Bolt 3/8-16 x 5/8 hex head grade 5 zinc plated |
$0.99
|
4 |
|
ships same day |
304 |
999-0120
|
Washer 3/8 SAE flat |
$0.99
|
12 |
|
ships same day |
305 |
154-2398
|
Caster wheel (OBSOLETE) |
$53.89
|
1 |
|
usually ships 1-5 days |
306 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
307 |
999-9066
|
Bolt 5/16-18 x 1 carriage head stainless steel |
$1.34
|
4 |
|
ships same day |
308 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
6 |
|
ships same day |
309 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
12 |
|
ships same day |
310 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
$0.99
|
6 |
|
ships same day |
311 |
154-2399
|
12 inch wheel |
$139.36
|
2 |
|
usually ships 12-17 days |
312a |
154-2400
|
Handle (OBSOLETE) |
$312.08
|
1 |
(HydroStar 48 and 24 standard model) |
usually ships 12-17 days |
312b |
154-2401
|
Handle (OBSOLETE) |
Call for price
|
1 |
(HydroStar 24 low profile model) |
usually ships 1-5 days |
313 |
154-2478
|
Grommet |
$4.64
|
2 |
|
usually ships 1-5 days |
314 |
999-0635
|
Nut 3/8-16 hex stainless steel |
$0.99
|
4 |
|
ships same day |
315 |
154-2403
|
Washer |
$2.29
|
8 |
|
usually ships 1-5 days |
316 |
154-2404
|
Plate (OBSOLETE) |
$69.43
|
1 |
|
usually ships 1-5 days |
317a |
154-2479
|
Support plate |
$295.17
|
1 |
(HydroStar 48) |
usually ships 1-5 days |
317b |
154-2496
|
Support plate (OBSOLETE) |
$69.41
|
1 |
(HydroStar 24) |
usually ships 1-5 days |
318 |
999-1450
|
Bolt 5/16-18 x 5/8 hex head stainless steel |
$0.99
|
4 |
|
usually ships 1-5 days |
319 |
154-2407
|
Tank pivot roller |
$44.57
|
2 |
|
usually ships 1-5 days |
320 |
154-1499
|
Left side hinge (OBSOLETE) |
$30.92
|
1 |
|
usually ships 1-5 days |
321 |
154-1496
|
Right side hinge (OBSOLETE) |
$30.92
|
1 |
|
usually ships 1-5 days |
322 |
999-1454
|
Bolt 5/16-18 x 5/8 pan head stainless steel |
$2.00
|
8 |
|
usually ships 1-5 days |
323a |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
4 |
(HydroStar 48) |
ships same day |
323b |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
2 |
(HydroStar 24) |
ships same day |
324a |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
$0.99
|
4 |
(HydroStar 48) |
ships same day |
324b |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
$0.99
|
2 |
(HydroStar 24) |
ships same day |
325a |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
8 |
(HydroStar 48) |
ships same day |
325b |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
4 |
(HydroStar 24) |
ships same day |
328a |
154-2480
|
Mounting plate |
$55.36
|
2 |
(HydroStar 48) |
usually ships 1-5 days |
329a |
154-2481
|
Push/pull cable |
$66.76
|
2 |
(HydroStar 48) |
usually ships 1-5 days |
329b |
154-2481
|
Push/pull cable |
$66.76
|
1 |
(HydroStar 24) |
usually ships 1-5 days |
330 |
154-2245
|
Screw 5/16-18 x 1/2 shoulder stainless steel |
$22.94
|
2 |
|
usually ships 1-5 days |
331 |
154-2413
|
Support bracket (OBSOLETE) |
$40.47
|
4 |
|
usually ships 1-5 days |
332 |
154-2414
|
Bushing |
$13.34
|
4 |
|
usually ships 1-5 days |
333 |
154-2415
|
Bushing (OBSOLETE) |
$10.77
|
2 |
|
usually ships 1-5 days |
334a |
154-2482
|
Push/pull cable retrofit kit (OBSOLETE) |
$144.96
|
1 |
(HydroStar 48) |
usually ships 1-5 days |
334b |
154-2497
|
Push/pull cable retrofit kit |
$158.19
|
1 |
(HydroStar 24) |
usually ships 1-5 days |
