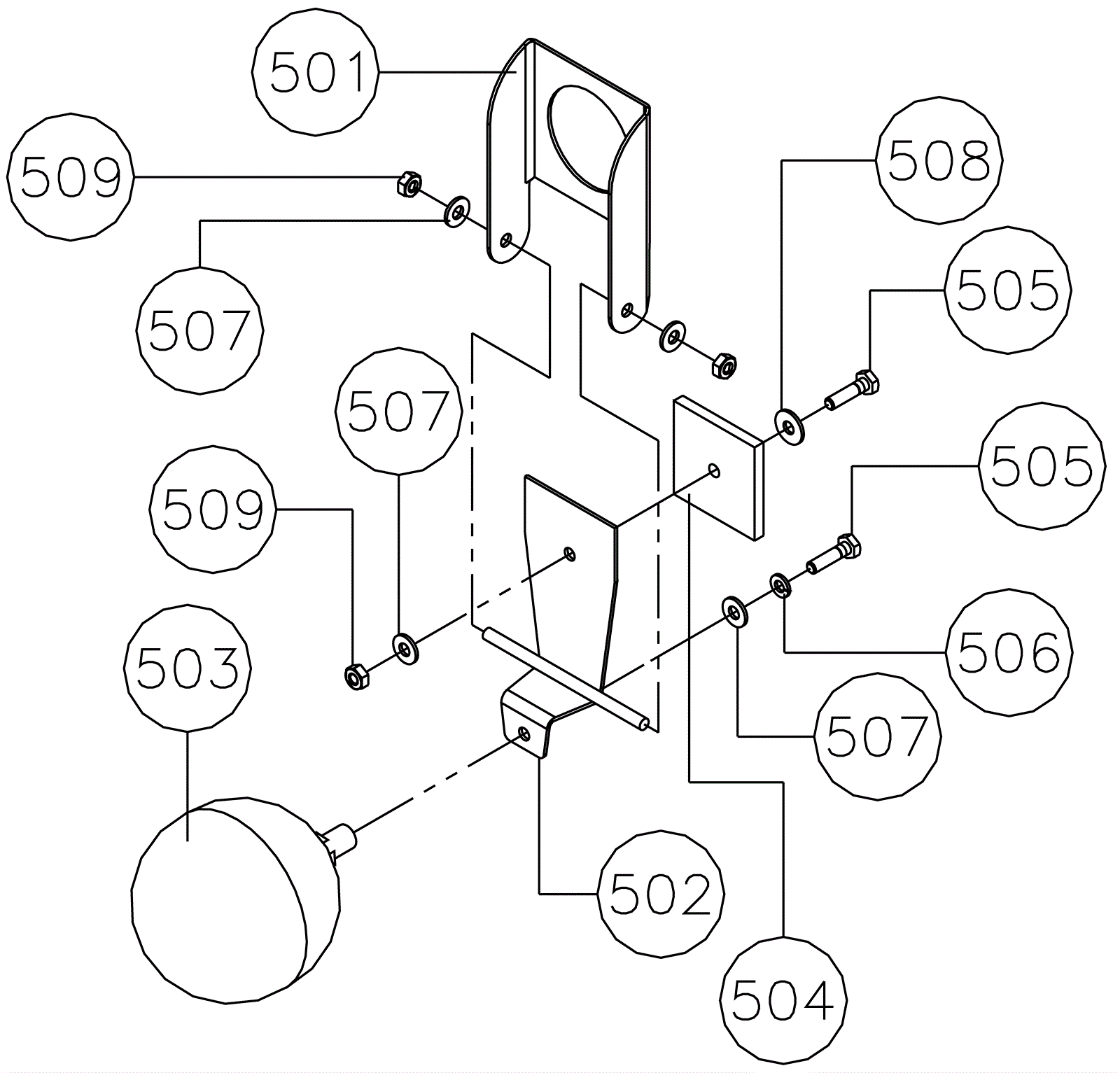

| # | Part | Description |
Req | Notes | Availability |
|---|
501 |
154-2427
|
Pivot bracket (OBSOLETE) |
1 |
|
|
502 |
154-2428
|
Float valve weldment (OBSOLETE) |
1 |
|
|
503 |
154-2429
|
Float ball (OBSOLETE) |
1 |
|
|
504 |
154-2430
|
Gasket (OBSOLETE) |
1 |
|
|
505 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
|
506 |
154-2426
|
Washer |
1 |
|
|
507 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
508 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
1 |
|
|
509 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
|
