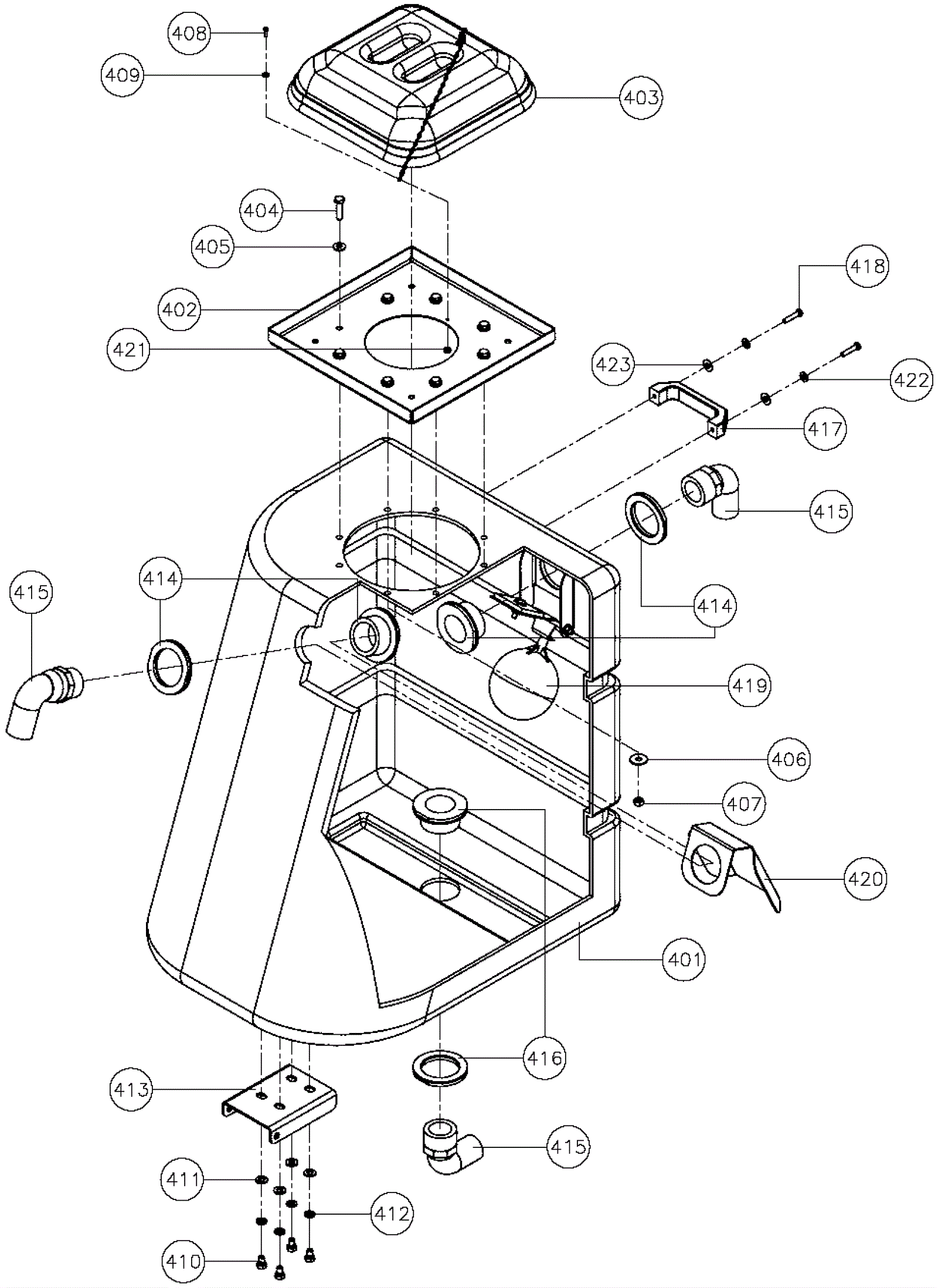

| # | Part | Description |
Req | Notes | Availability |
|---|
401 |
154-2416
|
Recovery tank (OBSOLETE) |
1 |
|
|
402 |
154-2417
|
Tank diffusion bracket (OBSOLETE) |
1 |
|
|
403 |
154-2418
|
Tank lid |
1 |
|
|
404 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
8 |
|
|
405 |
154-1295
|
Washer 5/16 bonded neoprene |
8 |
|
|
406 |
154-1283
|
Washer 5/6 flat |
8 |
|
|
407 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
8 |
|
|
408 |
999-0226
|
Screw 6-32 x 1/2 round head slotted zinc plated |
1 |
|
|
409 |
999-1158
|
Washer #6 flat stainless steel |
1 |
|
|
410 |
999-1450
|
Bolt 5/16-18 x 5/8 hex head stainless steel |
4 |
|
|
411 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
412 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
4 |
|
|
413 |
154-2419
|
Lifting bracket (OBSOLETE) |
1 |
|
|
414 |
154-2420
|
Fitting (OBSOLETE) |
2 |
|
|
415 |
154-2421
|
90 degree elbow fitting (OBSOLETE) |
2 |
|
|
416 |
154-2422
|
Fitting (OBSOLETE) |
1 |
|
|
417 |
154-2423
|
Lifting handle (OBSOLETE) |
1 |
|
|
418 |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
2 |
|
|
419 |
154-2424
|
Float valve assembly (OBSOLETE) |
1 |
|
|
420 |
154-2425
|
Deflector plate (OBSOLETE) |
1 |
|
|
421 |
999-0337
|
Nut 6-32 nylon insert lock stainless steel |
1 |
|
|
422 |
154-2426
|
Washer |
2 |
|
|
423 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
