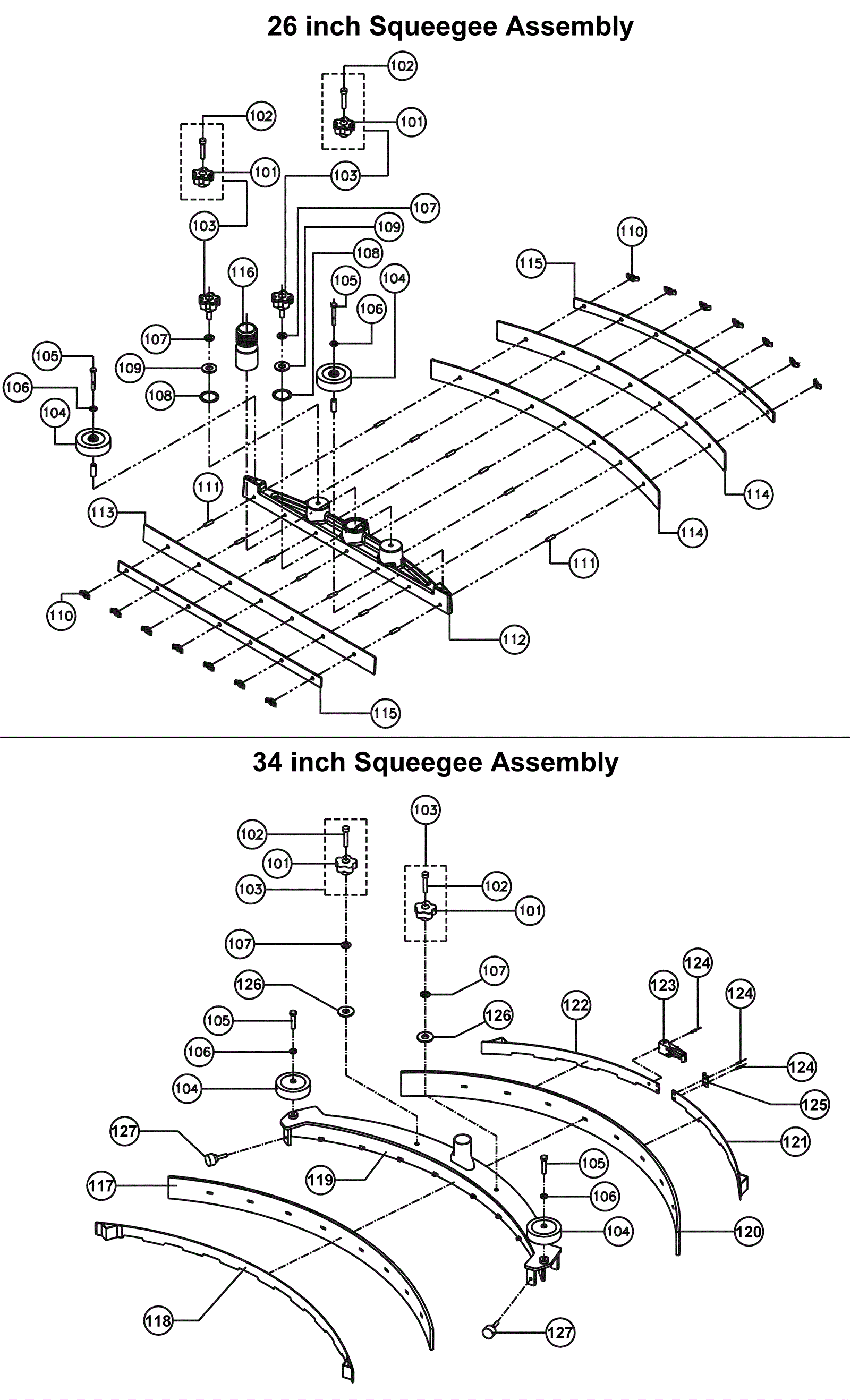

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
154-0326
|
Knob |
2 |
|
|
102 |
154-2383
|
Bolt 3/8-16 x 1 1/2 stainless steel |
2 |
|
|
103 |
154-1776
|
Knob assembly |
2 |
(includes 101 and 102) |
|
104 |
154-0302
|
3 inch gray wheel |
2 |
|
|
105 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
2 |
|
|
106 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
107 |
999-1446
|
Washer 3/8 x 1 1/2 fender stainless steel |
2 |
|
|
108 |
154-2031
|
Wave washer |
2 |
(26 inch) |
|
109 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
(26 inch) |
|
110 |
999-0603
|
Nut 1/4-20 wing stainless steel |
14 |
(26 inch) |
|
111 |
154-2384
|
Screw 1/4-20 x 1 set stainless steel |
14 |
(26 inch) |
|
112 |
154-2385
|
Squeegee weldment (OBSOLETE) |
1 |
(26 inch) |
|
113 |
154-2386
|
Squeegee blade front |
1 |
(26 inch) |
|
114 |
154-2387
|
Squeegee blade rear (OBSOLETE) |
2 |
(26 inch) |
|
115 |
154-2388
|
Squeegee retaining strap (OBSOLETE) |
2 |
(26 inch) |
|
116 |
154-1277
|
Fitting (OBSOLETE) |
1 |
(26 inch) |
|
117 |
154-2389
|
Squeegee blade gum rubber front |
1 |
(34 inch) |
|
118 |
154-2390
|
Front squeegee retaining band |
1 |
(34 inch) |
|
119 |
154-2391
|
Squeegee weldment (OBSOLETE) |
1 |
(34 inch) |
|
120 |
154-2392
|
Squeegee blade gum rubber rear |
1 |
(34 inch) |
|
121 |
154-2393
|
Left side rear squeegee retaining band |
1 |
(34 inch) |
|
122 |
154-2394
|
Right side rear squeegee retaining band |
1 |
(34 inch) |
|
123 |
154-0714
|
Handle latch |
1 |
(34 inch) |
|
124 |
154-0713
|
Pop rivet 1/8 x 5/16 |
5 |
(34 inch) |
|
125 |
154-2395
|
Latch keeper |
1 |
(34 inch) |
|
126 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
(34 inch) |
|
127 |
154-0820
|
Fluted knob 1/4-20 x 3/4 stud |
2 |
(34 inch) |
|
