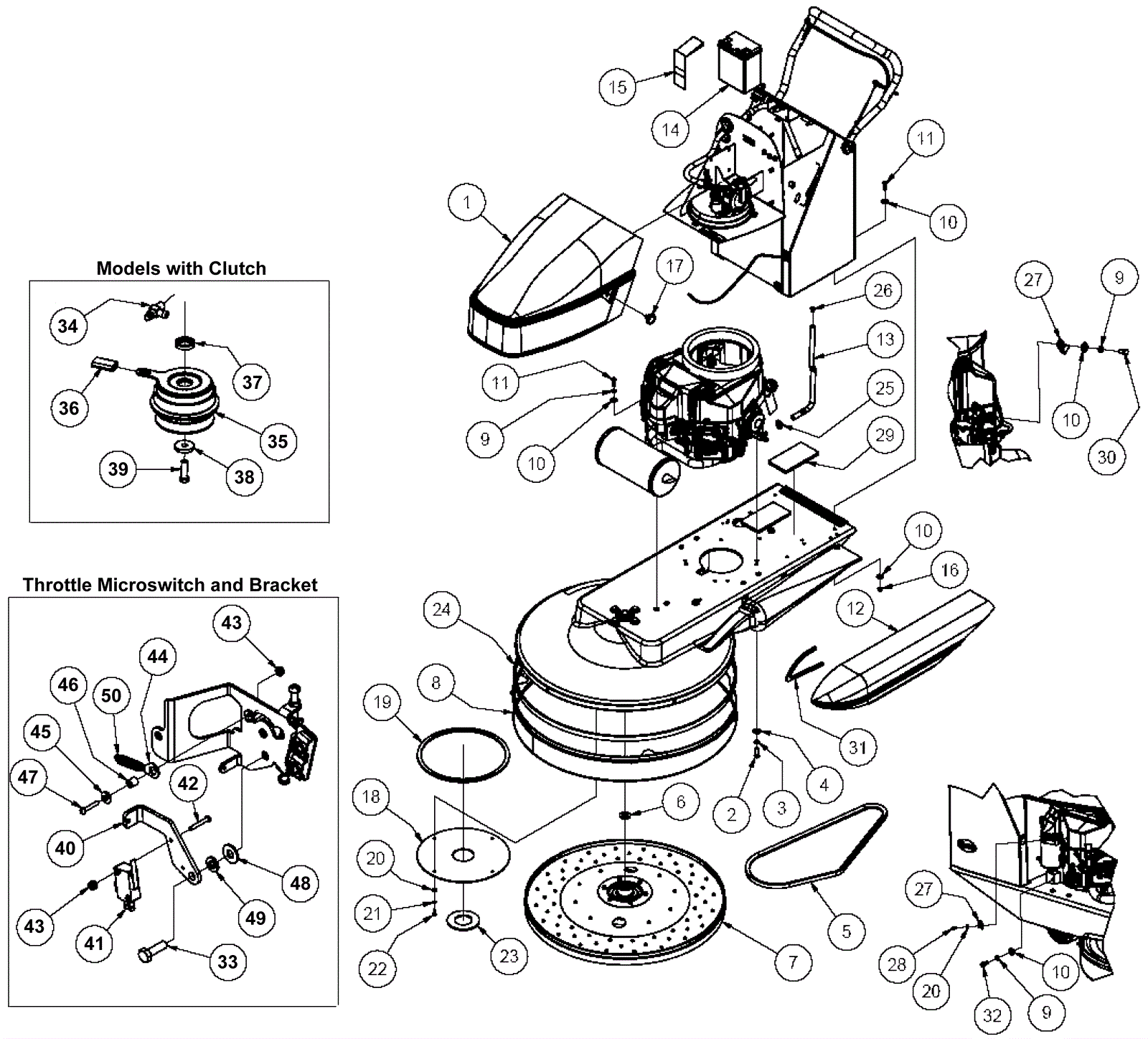

PE440BU Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 154-2363 Bulkhead hood assembly $344.01 1 usually ships 1-5 days
2 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
3 154-0633 Lock washer $1.84 4 usually ships 1-5 days
4 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
5a 991-0001 BX46 belt $45.55 1 (21 inch) ships same day
5b 154-1070 BX49 belt $40.05 1 (24 inch) usually ships 1-5 days
5c 991-0021 BX56 belt $50.55 1 (28 inch) ships same day
5d 991-8541 BX-57 belt $23.10 1 (28 inch) (after SN 78741) usually ships 3-5 days
6 154-0938 Spacer $41.49 1 usually ships 4-15 days
7a 154-0729 21 inch pad driver assembly $507.08 1 ships same day
7b 154-0534 24 inch pad driver assembly $566.26 1 usually ships 4-15 days
7c 154-0306 28 inch pad driver assembly $669.48 1 usually ships 4-15 days
8 154-0717 28 inch steel skirt assembly $164.54 1 (28 inch model only) ships same day
9 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
10 999-0024 Washer 5/16 flat stainless steel $1.34 12 ships same day
11 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 6 ships same day
12 154-0387 Vacuum bag cover $209.72 1 usually ships 4-15 days
13 154-2364 Oil drain hose (OBSOLETE) Call for price 1 usually ships 1-5 days
14 162-0007 12V 12Ah sealed battery $124.80 1 ships same day
15 154-1039 Tank strap $43.46 1 ships same day
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
17 154-2365 Knob $17.46 2 usually ships 4-15 days
18a 154-0723 Pulley cover $34.79 1 (21 inch) usually ships 1-5 days
18b 154-0397 Pulley cover $59.60 1 (24 inch) usually ships 1-5 days
18c 154-0398 Pulley cover $89.56 1 (28 inch) usually ships 4-15 days
19 154-0401 Foam seal $14.03 1 usually ships 4-15 days
20 999-0016 Washer 1/4 flat plain finish $0.99 5 ships same day
21 154-0600 Lock washer $1.84 4 usually ships 4-15 days
22 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
23 154-0400 Spindle seal $18.83 1 usually ships 4-15 days
24a 154-0515 Felt for improved skirt design (sold by the foot) $3.95 7 ft (21 inch) usually ships 4-15 days
24b 154-0515 Felt for improved skirt design (sold by the foot) $3.95 8 ft (24 inch) usually ships 4-15 days
24c 154-0515 Felt for improved skirt design (sold by the foot) $3.95 9 ft (28 inch) usually ships 4-15 days
25 154-0036 Plastic hose clamp $6.35 1 usually ships 4-15 days
26 154-0038 Oil drain cap $2.20 1 usually ships 4-15 days
27 154-0110 Clamp $5.68 2 usually ships 1-5 days
28 999-1449 Screw #10 x 1/2 truss head phillips stainless steel $0.99 1 usually ships 11-24 days
29 154-2366 Rubber pad (OBSOLETE) $28.83 2 usually ships 1-5 days
30 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 1 ships same day
31 154-0401 Foam seal $14.03 8 in usually ships 4-15 days
32 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 ships same day
33 154-2369 Screw M6 x 20mm $1.84 1 usually ships 1-5 days
34 154-0362 Oil drain valve $34.11 1 (model with clutch) usually ships 4-15 days
35 154-0008 Electric clutch assembly $365.37 1 (model with clutch) usually ships 4-15 days
36 154-0015 Neoprene tubing (sold by the inch) $42.45 2 in (model with clutch) usually ships 4-15 days
37 154-2350 Upper clutch spacer $30.40 1 (model with clutch) usually ships 1-5 days
38 154-0016 Bottom clutch spacer $19.86 1 (model with clutch) ships same day
39 999-0208 Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated $0.99 1 (model with clutch) ships same day
40 154-2370 Bracket Call for price 1 usually ships 1-5 days
41 154-2371 Micro switch $32.95 1 usually ships 4-15 days
42 154-0544 Screw 4-40 x 3/4 UNF round head machine $1.84 2 usually ships 1-5 days
43 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 3 ships same day
44 154-2372 Linkage with washer $1.99 1 usually ships 4-15 days
45 999-1158 Washer #6 flat stainless steel $0.99 1 ships same day
46 154-0242 Threaded spacer $7.80 1 usually ships 4-15 days
47 154-1282 Screw 4-40 x 5/8 inch slotted $1.84 1 usually ships 1-5 days
48 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
49 154-0600 Lock washer $1.84 1 usually ships 4-15 days
50 154-0906 Bail return spring $20.99 1 usually ships 4-15 days
