PE440BU

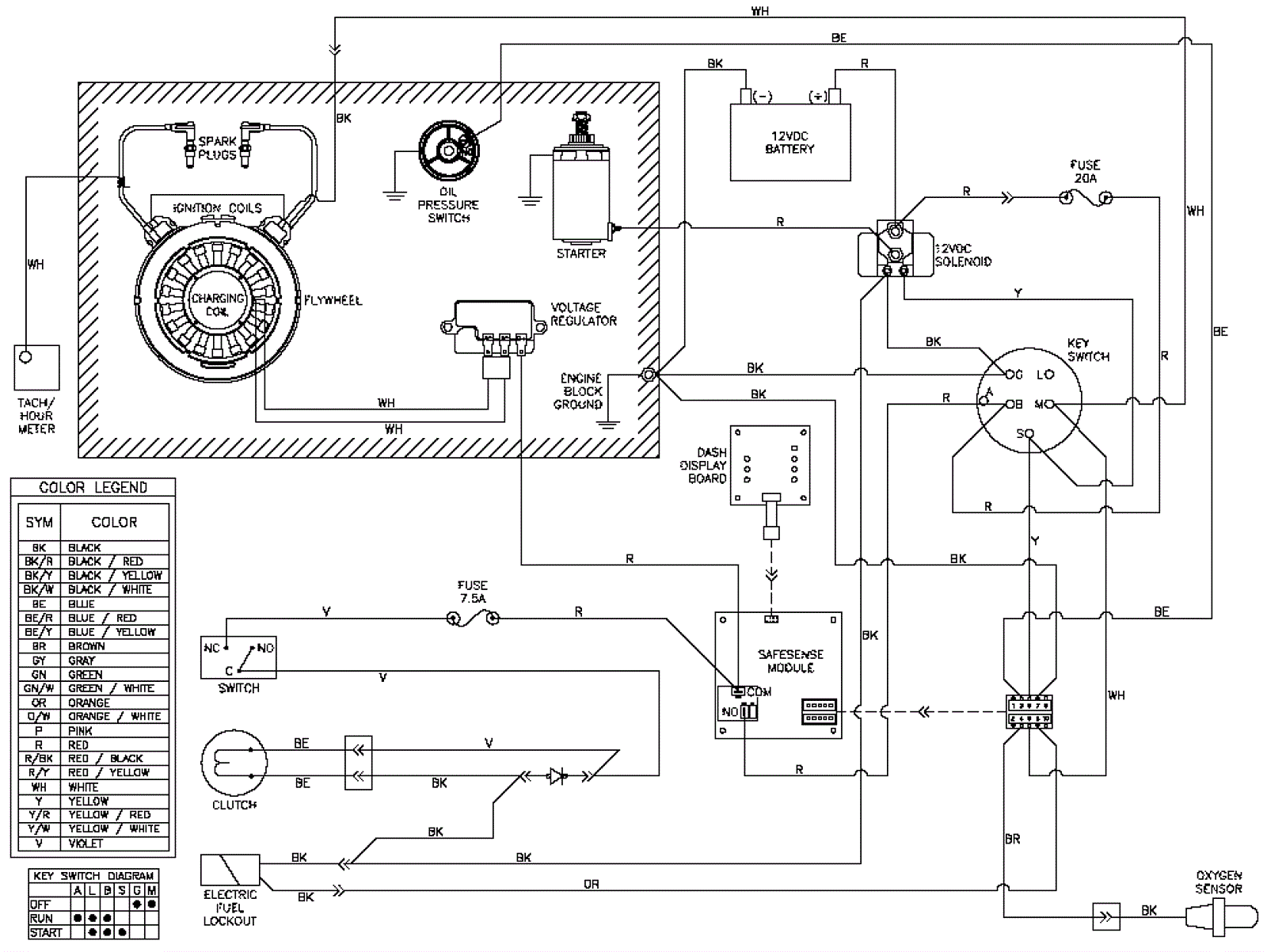

Wiring Diagram
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
N/S
154-0803
7 1/2amp fuse
$14.17
usually ships 1-5 days
N/S
154-0909
20amp fuse
$4.79
usually ships 4-15 days
N/S
154-3495
Bulkhead wiring harness with safesense
$237.72
usually ships 1-5 days
